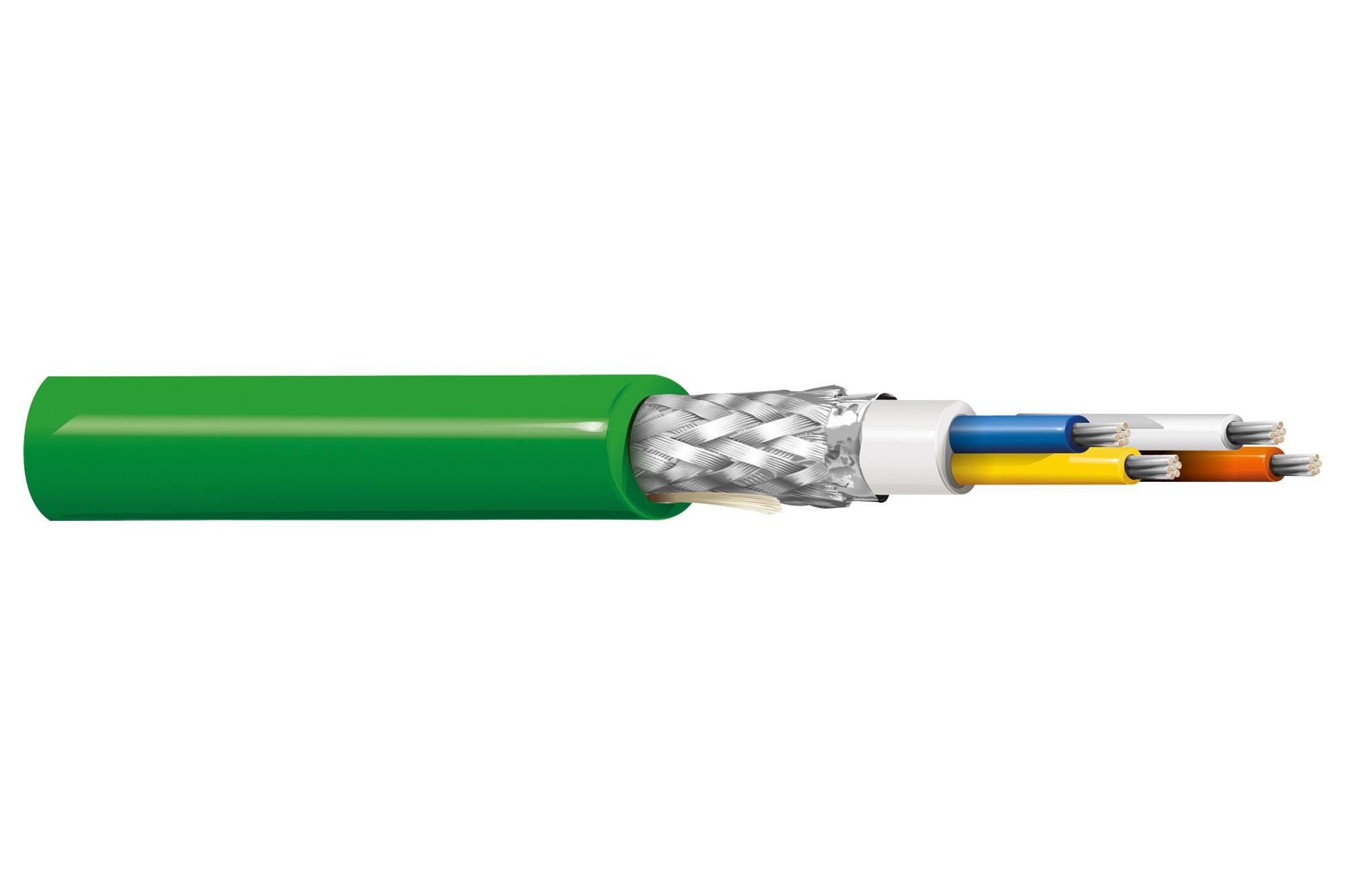

BELDEN 70007NH01305 Industrial Ethernet Cable
The DataTuff PROFINET Type B Cat 5e outdoor Ethernet cable is designed for industrial applications, offering reliable data transmission at 100Mb/s. It features stranded tinned copper conductors, foil plus braid shielding, and a halogen-free LSZH outer jacket in green. With a construction including four twisted pairs and high-quality insulation, the cable ensures excellent electromagnetic compatibility and flame retardancy. Suitable for indoor environments with Euroclass Eca fire safety rating, this cable complies with ISO/IEC standards and RoHS. It provides durable performance for industrial Ethernet networks, supporting 85–90 words.
BELDEN 70007NH01305 Industrial Ethernet Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 22 AWG
- Number of Conductors: 4
- Number of Pairs: 2
- Insulation Material: PO-Polyolefin
- Insulation Thickness: 0.05 mm
- Outer Jacket Material: LSZH/FRNC
- Outer Diameter: 6.5 mm
- Jacket Thickness: 0.2 mm
- Shielding: Foil plus Braids
- Impedance: 100 Ohm ±15 Ohm at 100 MHz
- Transfer Impedance: Varies with Frequency
- Temperature Range: Operating -25°C to +70°C, Storage -40°C to +70°C
- Fire Safety: Euroclass Eca, IEC 60332-1-2 flammability, Zero halogen
- Standards: ISO/IEC 11801 Ed. 2.2, EN 50173-1 Ed. 3
- Compliance: RoHS 2014-09-26
- Applicable Environments: Indoor, Euroclass Eca
Buy the Belden Series DataTuff PROFINET Cat 5e Type B: 70007NH01305
Purchase the Belden DataTuff PROFINET Cat 5e industrial Ethernet cable today for dependable high-speed data transfer in demanding environments. This rugged, shielded cable features foil plus braid shielding for electromagnetic interference immunity, a durable LSZH outer jacket, and tinned copper conductors for corrosion resistance. It adheres to international standards for safety and performance, ensuring reliable network connectivity in industrial settings. Available now online, this cable offers excellent flexibility, fire safety, and durability for seamless data transmission, critical in automation and industrial communication networks.
Buy Belden 70007NH01305 now and experience unmatched reliability and high-performance industrial Ethernet cabling suitable for PROFINET applications.
Frequently Asked Questions
Where can I buy BELDEN 70007NH01305?
You can click on the BUY or RFQ button to purchase 70007NH01305 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 70007NH01305?
You can download the 70007NH01305 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 70007NH01305?
BELDEN
