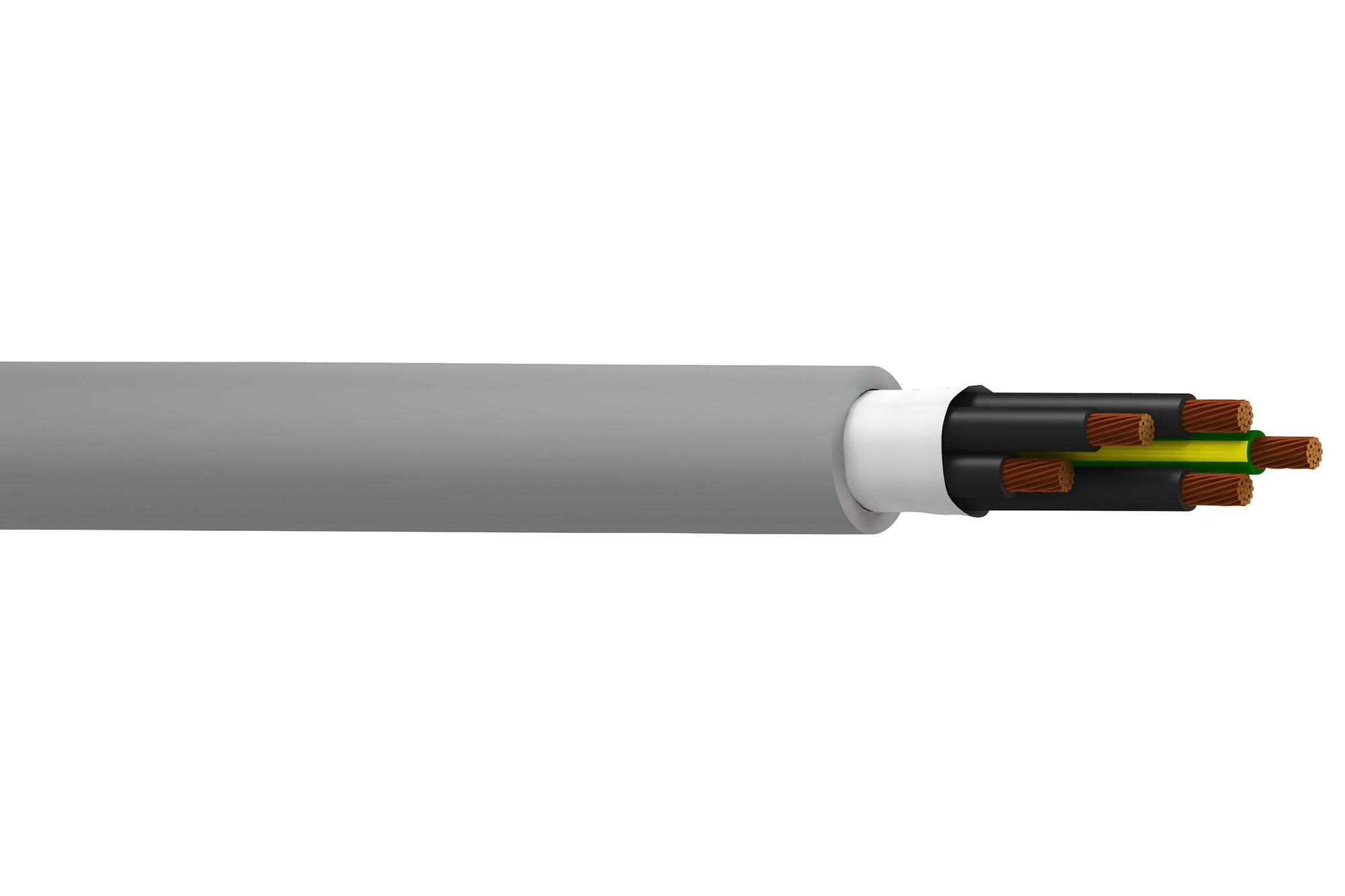

BELDEN 73002W008100 Flexible Multi-Conductor Cable
The 73002W multi-conductor cable is a 600V unshielded cable designed for light to moderate flexing applications with a flex cycle rating of up to 1 million cycles. It features 20 AWG stranded bare copper conductors with PVC insulation and an oil-resistant PVC jacket. The cable has a nominal diameter of 0.238 inches, with a maximum operating temperature of 90°C and storage temp of -40°C. It complies with UL, CSA, VDE standards and RoHS directives, making it suitable for industrial, control, and automation wiring requiring durability and flexible movement.
BELDEN 73002W008100 Flexible Multi-Conductor Cable Specifications:
- Conductors: 20 AWG stranded (10x30) bare copper
- Insulation Material: PVC
- Outer Jacket Material: Oil-resistant PVC
- Nominal Diameter: 0.238 in
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 50 lbs/1000 ft
- Max. Recommended Pulling Tension: 15,700 lbs
- Min. Bend Radius: 1.200 in
- Flex Cycle Rating: 1 million flexes
- Applicable Standards: UL Style 2587 (600 V 90°C), CSA 600 V AWM, RoHS compliant, VDE 0472, REACH, California Proposition 65
- Max. Capacitance Conductor to Conductor: 26.000 pF/ft
- Nominal Characteristic Impedance & Inductance: Not specified
- Voltage Rating: 600 V UL
- Put-ups & Colors: 100 ft gray, 500 ft gray, 7000 ft gray
- Dimensions: Overall diameter 0.238 in
Buy the Belden 73002W – Reliable Unshielded Flexible Cable for Industrial Applications
Order the Belden 73002W flexible multi-conductor cable online today to ensure reliable power distribution and control in industrial settings. Designed for demanding environments, this unshielded cable with 20 AWG copper conductors, PVC insulation, and oil-resistant jacket offers excellent flexibility, durability, and compliance with international standards. Whether for automation, control panels, or general wiring, buying online guarantees fast delivery and quality assurance. Enhance your project reliability by choosing this versatile, high-performance cable that withstands challenging conditions with ease.
Buy Belden 73002W now and experience unmatched durability and performance in industrial control wiring and automation systems.
Frequently Asked Questions
Where can I buy BELDEN 73002W008100?
You can click on the BUY or RFQ button to purchase 73002W008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73002W008100?
You can download the 73002W008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73002W008100?
BELDEN
