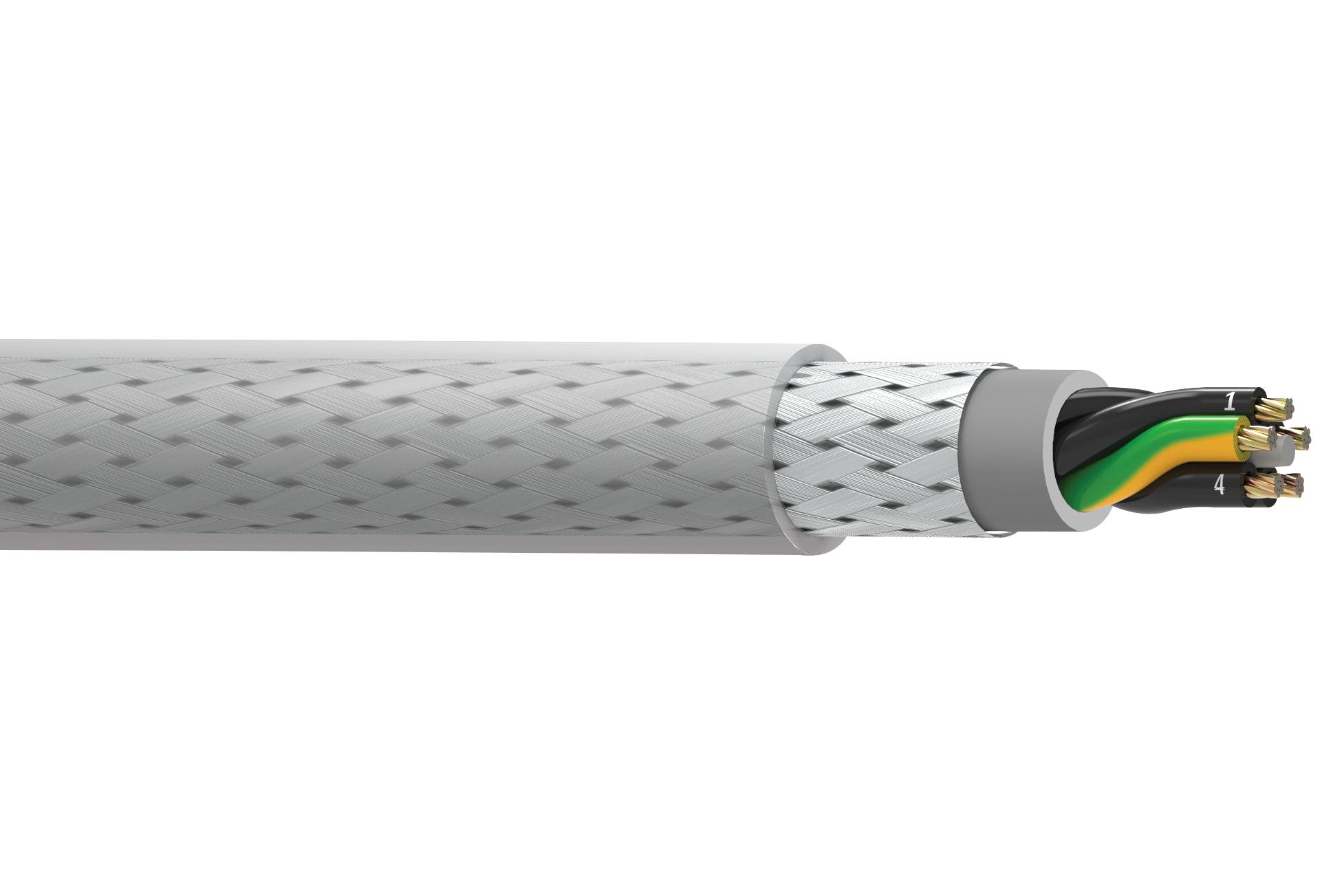

BELDEN 73003WS0081000 Shielded Multi-Conductor Cable
The 73003WS multi-conductor cable is designed for 600V shielded applications, supporting light to moderate flexing with durability up to 1 million flex cycles. Featuring 20 AWG stranded bare copper conductors, PVC insulation, oil-resistant inner jacket, and a tinned copper braid shield with 85% coverage, it ensures reliable performance in industrial settings. The overall cable diameter is 8.611 mm, suitable for flexible installations and heavy-duty environments, meeting multiple standards including UL and CSA. Ideal for automation, control, and signal wiring in demanding industrial applications.
BELDEN 73003WS0081000 Shielded Multi-Conductor Cable Specifications:
- Conductor: 20 AWG stranded (10x30) bare copper
- Insulation Material: PVC
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned copper braid, 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 8.611 mm
- Storage Temperature: -40°C to +90°C
- Operating Temperature (Flexing): -6°C to 190°C
- Installation Temperature: -8°C to +90°C
- Bulk Cable Weight: 203.683 kg/km
- Max Pulling Tension: 133.446 N
- Min Bend Radius: 66.580 mm
- Flex Cycle Rating: 1 million cycles
- Applicable Standards: UL 2587, CSA 600 V, RoHS II, VDE 0472
- Flame Test: CSA FT
- Nominal Capacitance: To ground 124.678 pF/m
- DC Resistance Conductor: Specific value not provided
Buy the Belden 73003WS – Reliable Shielded Multi-Conductor Cable for Industrial Applications
Order the Belden 73003WS shielded multi-conductor cable today online and enjoy reliable performance for industrial wiring, automation, and control systems. This high-quality cable supports up to 1 million flex cycles, making it ideal for flexible applications requiring durability and safety. With 20 AWG bare copper conductors, PVC insulation, and an oil-resistant outer jacket, it ensures excellent signal integrity and resistance to harsh environments. Secure your supply chain today and benefit from fast, convenient online purchase options tailored for professionals and industry specialists.
Buy Belden 73003WS now and experience unmatched durability, flexibility, and reliable signal transmission in demanding industrial environments.
