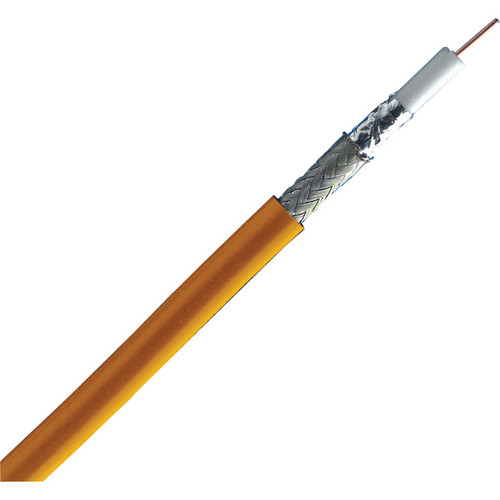

BELDEN 82810031000 Precision Video Coax Cable
The Belden 8281 0031000 Precision Video Coax cable is a high-quality solution for transmitting analog video signals. Constructed with a 20 AWG solid bare copper conductor, polyethylene insulation, and a tinned copper/bare copper double braid shield (95% coverage), this cable provides superior signal protection and minimizes interference. Its robust design and reliable performance make it suitable for a wide range of applications, including security systems, CCTV installations, and broadcast equipment. The cable is also RoHS compliant, ensuring environmental responsibility.
BELDEN 82810031000 Precision Video Coax Cable Specifications:
- Suitable Applications: Analog Video
- Conductor AWG: 20
- Conductor Material: BC - Bare Copper
- Conductor Diameter: 0.031 in
- Conductor Count: 1
- Insulation Material: PE - Polyethylene
- Insulation Diameter: 0.198 in
- Outer Shield Material: Tin ned Copper (TC)
- Outer Shield Coverage: 95%
- Jacket Material: PE - Polyethylene
- Jacket Diameter: 0.305 in
- Conductor DCR: 9.9 Ohm/1000ft
- Outer Shield DCR: 1.1 Ohm/1000ft
- Capacitance: 21 pF/ft
- Nominal Inductance: 0.131 µH/ft
- Return Loss (RL) - 5-216 MHz: 27 dB
- Return Loss (RL) - 216-850 MHz: 23 dB
- Insertion Loss (1 MHz): 0.3 dB/100ft
- Insertion Loss (3.6 MHz): 0.5 dB/100ft
- Insertion Loss (10 MHz): 0.8 dB/100ft
- Insertion Loss (71.5 MHz): 2.1 dB/100ft
- Insertion Loss (135 MHz): 3 dB/100ft
- Insertion Loss (270 MHz): 4.3 dB/100ft
- Insertion Loss (360 MHz): 5.1 dB/100ft
- Insertion Loss (540 MHz): 6.3 dB/100ft
- Insertion Loss (720 MHz): 7.4 dB/100ft
- Insertion Loss (750 MHz): 7.6 dB/100ft
- Insertion Loss (1000 MHz): 9.2 dB/100ft
- Nominal Delay: 1.54 ns/ft
- Nominal Velocity of Propagation: 66%
- Non-UL Voltage Rating: 2900 V RMS
- Non-UL Temp Rating: 80°C
- Operating Temp Range: -55°C To +80°C
- Bulk Cable Weight: 69 lbs/1000ft
- Max Pull Tension: 168 lbs
- Min Bend Radius: 3 in
- RG Type: 59/U Type
- Suitability - Aerial: Yes - Black only, when supported by messenger wire
- Suitability - Burial: No
- Suitability - Indoor: Yes
- Suitability - Outdoor: Yes - Black only
- Plenum Rating: No
- EU RoHS Compliance Date: 2004-01-01
