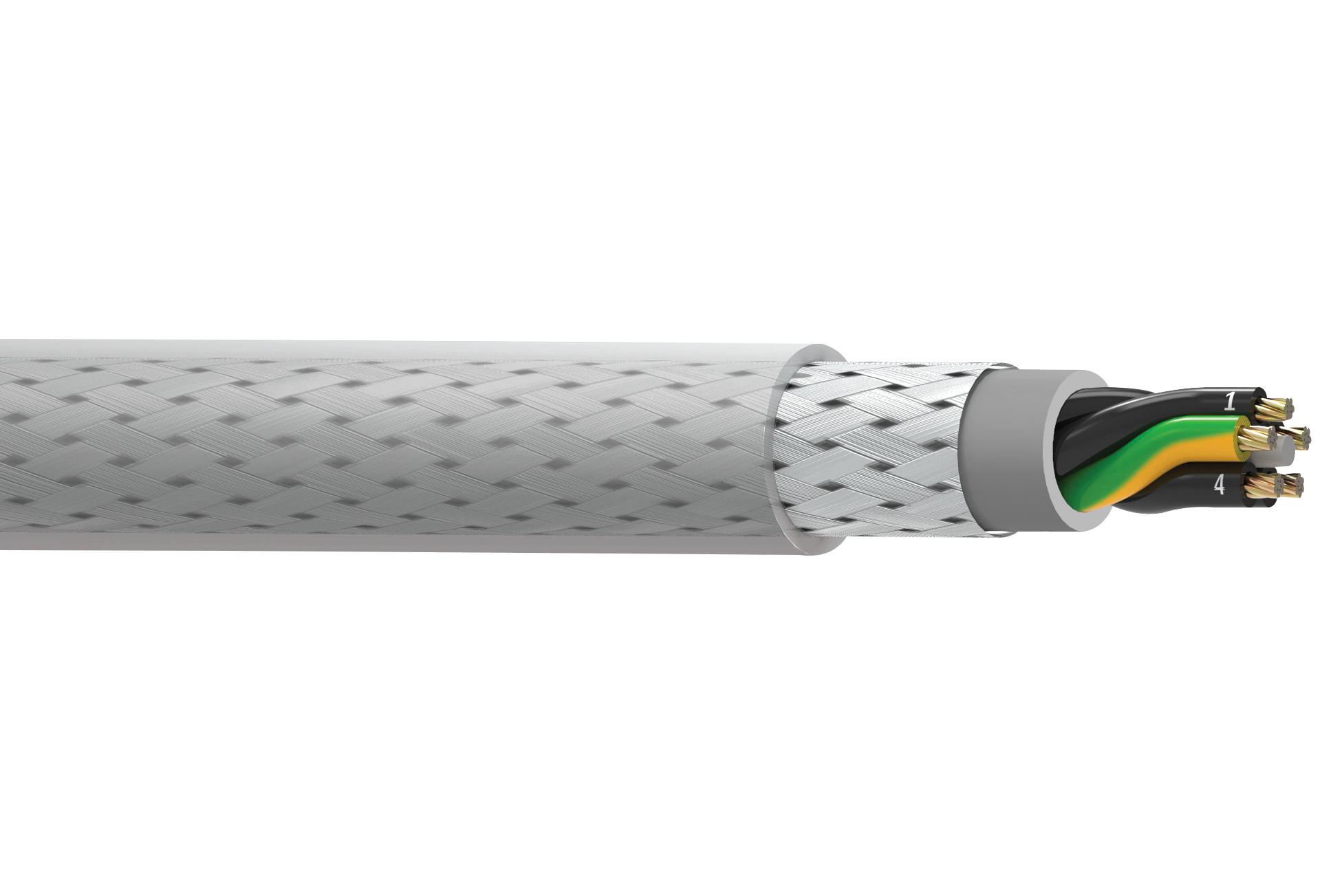

BELDEN 73007WS008100 Shielded Multiconductor Cable
The 73007WS multi-conductor cable is designed for light to moderate flexing applications up to 1 million flex cycles. It features 20 AWG stranded bare copper conductors with PVC insulation, oil-resistant PVC inner jacket, and a tinned copper braid shield with 85% coverage. The outer jacket is made of oil-resistant PVC. Suitable for environments requiring flexibility, durability, and reliable electrical performance, this shielded cable meets UL, CSA, and EU safety standards including RoHS and REACH compliance. It is ideal for industrial, automation, and control systems demanding robust cable performance under dynamic conditions.
BELDEN 73007WS008100 Shielded Multiconductor Cable Specifications:
- Conductor Size: 20 AWG stranded (10x30)
- Insulation Material: PVC
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned Copper
- Outer Jacket Material: Oil-resistant PVC
- Shield Coverage: 85%
- Voltage Rating: 600 V
- Operating Temperature Range: Flexing: -6°C to 190°C, Storage: -40°C to +90°C
- Mechanical Characteristics: Max Pulling Tension 64 lbs, Min Bond Radius 2 inches, Flex Cycle Rating 1 Million
- Bulk Cable Weight: 206 lbs/1000 ft
- Applicable Standards: UL Style 2587, CSA FT, VDE 0472, RoHS, REACH
- Flame Test: CSA Flame Test FT
- Nominal Capacitance: 100 pF/m, Resistance: 2.44 ohms
- Cable Length and Packaging: 100 ft,Weight: 26.1 lbs, Color: Gray
Buy the Belden 73007WS – Reliable Shielded Multi-Conductor Cable for Industrial Applications
Order the Belden 73007WS shielded multi-conductor cable online today to ensure your industrial wiring setups are robust, flexible, and compliant with safety standards. Designed for light to moderate flexing applications, this cable features high-quality PVC insulation, a tinned copper braid shield with 85% coverage, and an oil-resistant outer jacket. It’s rated for 600V and can withstand up to 1 million flex cycles, making it ideal for automation, control systems, and demanding environments. Purchase now for reliable performance and quick delivery.
Buy Belden 73007WS now and experience unmatched flexibility, durability, and electrical reliability for your industrial wiring needs.
