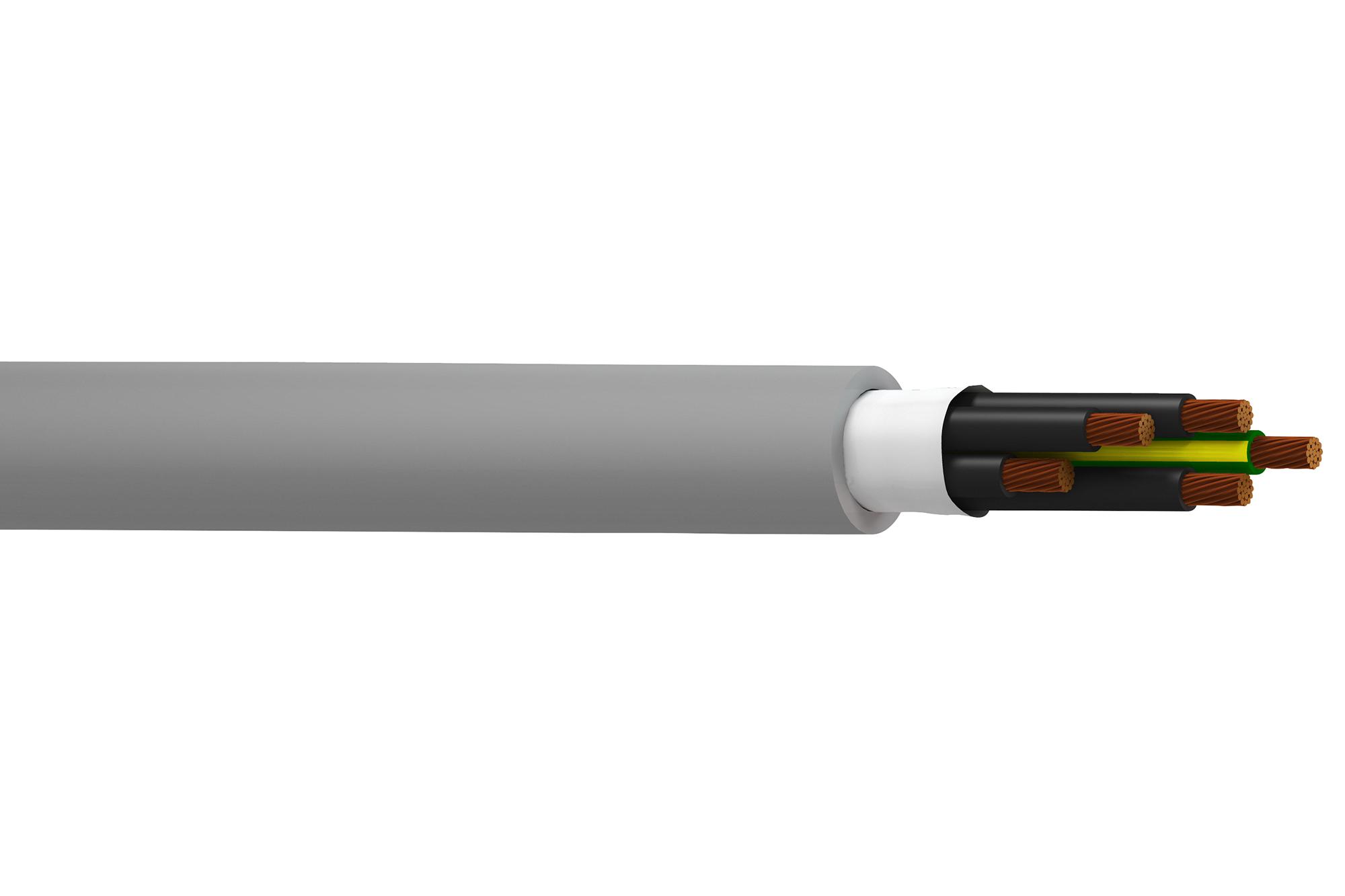

BELDEN 73203W008100 industrial multi-conductor cable
The 73203W multi-conductor cable is rated for 600V and designed for unshielded, light to moderate flexing applications, with an impressive flex life cycle of up to 1 million cycles. It features 12 AWG stranded bare copper conductors (65x30 stranding), PVC insulation, and an oil-resistant PVC jacket for durability. The overall cable diameter is 0.436 inches, with a PVC outer jacket, and a ground wire of similar specifications. Ideal for flexible, industrial wiring with high durability and compliance to UL, CSA, and RoHS standards, ensuring long-lasting performance in demanding environments.
BELDEN 73203W008100 industrial multi-conductor cable Specifications:
- Conductor Size: 12 AWG stranded (65x30), bare copper
- Insulation Material: PVC
- Outer Jacket Material: PVC, oil-resistant
- Outer Diameter: 0.436 inches
- Ground Wire: Yes, 12 AWG, 65x30, bare copper, PVC insulation
- Total Length Options: 100 ft, 7000 ft, 500 ft
- Flex Life Cycle: 1 million flexes
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Maximum Pulling Tension: 153 lbs
- Minimum Bend Radius: 2.200 inches
- Weight per 1000 ft: 191 lbs
- Standards: UL Style 2587, CSA, RoHS, VDE 0472, EU Low Voltage Directive
- Flame Test: CSA Flame Test
- Suitability for Burial: Yes
Buy the Belden 73203W – Reliable Industrial Multi-Conductor Cable for Light to Moderate Flexing Applications
Enhance your industrial wiring projects with the Belden 73203W multi-conductor cable. Featuring 12 AWG stranded copper conductors, oil-resistant PVC jacket, and an impressive flex life of up to 1 million cycles, this cable is built for durability and high performance. Its unshielded design and compliance with UL, CSA, and RoHS standards make it suitable for various demanding environments, including burial. Easy to install with a temperature range of -8°C to +90°C, offering reliable power distribution in flexible applications.
Buy Belden 73203W now and experience unmatched durability and flexibility for your industrial wiring needs with high-cycle flexing capability.
