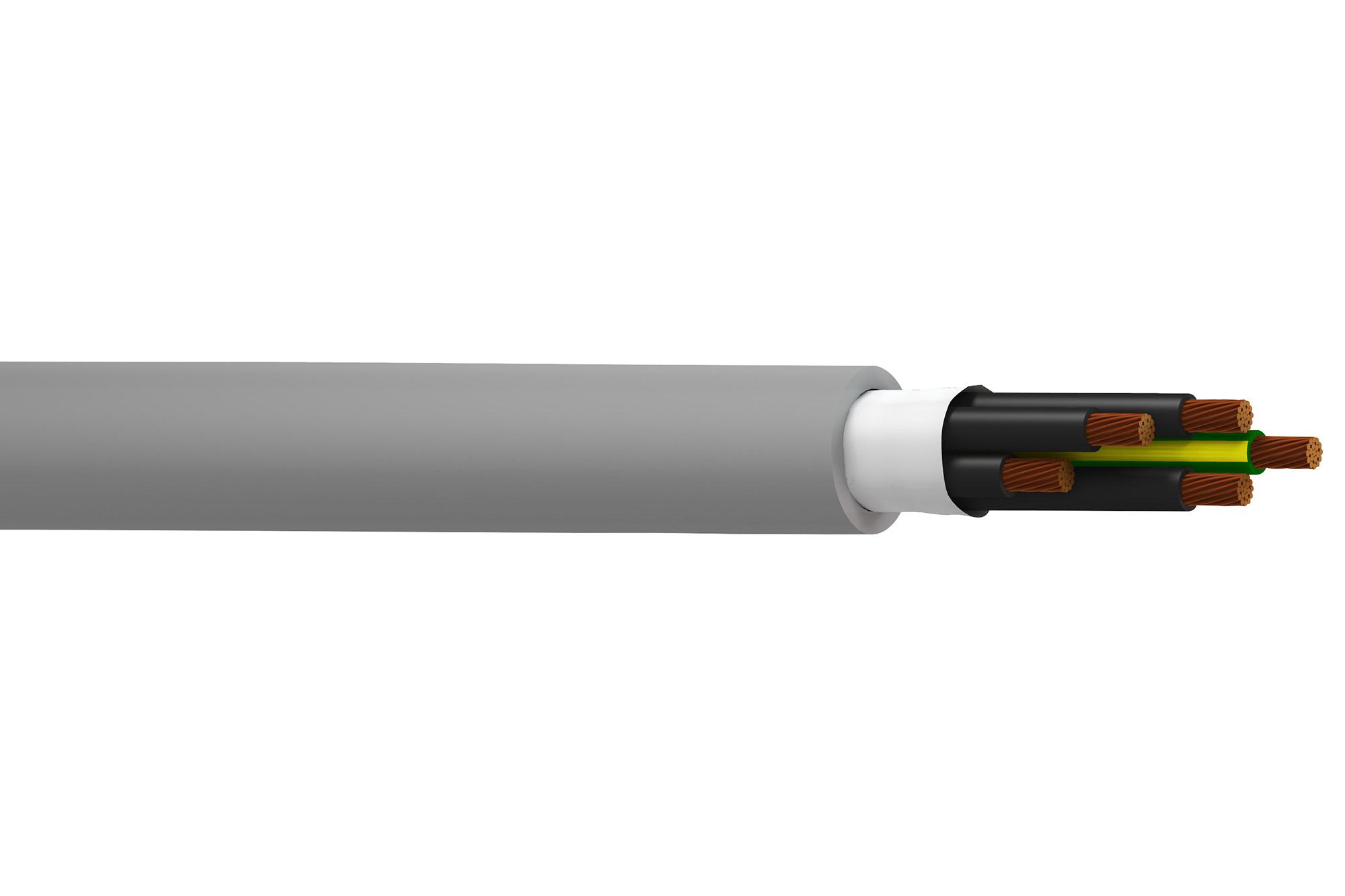

BELDEN 73205W008100 Multi-Conductor Cable
The 73205W multi-conductor cable is designed for unshielded, light to moderate flexing applications up to 1 million flex cycles. It features 12 AWG stranded bare copper conductors with PVC insulation and oil-resistant PVC jackets. Suitable for various industrial uses, its overall diameter is approximately 14.046 mm. Rated for 600V, it complies with UL 2587 and other environmental standards like ROHS and REACH. Mechanical specs include a maximum tensile tension of 134.201 N and a flexible temperature range from -8°C to +90°C, making it ideal for rigorous installation environments.
BELDEN 73205W008100 Multi-Conductor Cable Specifications:
- Conductor Material: Bare Copper
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Overall Diameter: 14.046 mm
- Flex Cycle Rating: 1 million flexes
- Max. Operating Voltage: 600V
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Length Options: 100 ft, 7000 ft, 500 ft
- Bulk Weight: 684.572 kg/km
- Max. Recommended Pulling Tension: 134.201 N
- Flexing Min Bend Radius: 71.120 mm
- Applicable Standards: UL 2587, CSA, VDE 0472, ROHS, REACH
- Flame Test: CSA FT
- Suitability for Burial: Yes
- Capacitance Conductor to Conductor: Max value specified
- Inductance: 0.525 μH
- Conductor DC Resistance: Value not specified
Buy the Buy Belden 600V Unshielded Multi-Conductor Cable Part Number 73205W008100 Online
Order the Belden 73205W multi-conductor cable online today and ensure reliable performance with a flexible, oil-resistant PVC jacket rated for 600V. Designed for demanding applications, it withstands up to 1 million flex cycles, making it ideal for industry use. Available in different lengths, including 100 ft, 500 ft, and 7000 ft spool options. Its robust construction and adherence to UL, CSA, and European standards guarantee safety, durability, and environmental compliance for your installation needs.
Buy Belden 73205W cable now and experience unmatched flexibility, durability, and compliance for demanding industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 73205W008100?
You can click on the BUY or RFQ button to purchase 73205W008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73205W008100?
You can download the 73205W008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73205W008100?
BELDEN
