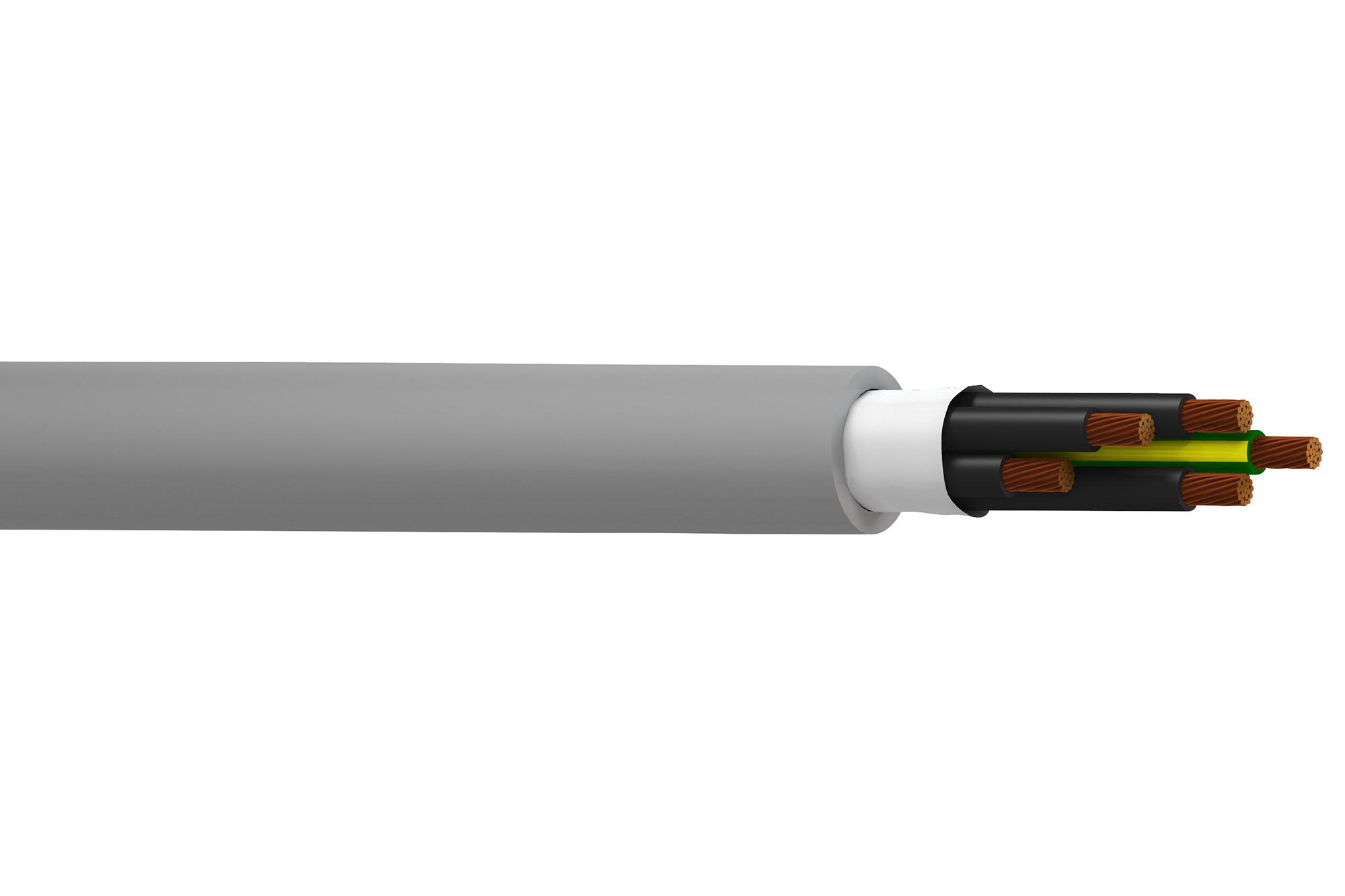

BELDEN 73402W0081000 Multi-Conductor Cable
The 73402W series multi-conductor cable is designed for unshielded, light to moderate flexing applications with a flex life rating of up to 1 million cycles. Comprising 14 AWG stranded bare copper conductors (41x30), it features PVC insulation and an oil-resistant PVC jacket. The overall cable diameter is approximately 0.330 inches, with a cable weight of 112 lbs per 1000 ft. Suitable for UL, CSA, and VDE standards, this cable is ideal for flexible electrical installations requiring durability, reliability, and compliance with environmental standards like RoHS and REACH.
BELDEN 73402W0081000 Multi-Conductor Cable Specifications:
- Conductor: 14 AWG stranded (41x30) bare copper
- Insulation Material: PVC - Polyvinyl Chloride
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.330 in.
- Bulk Cable Weight: 112 lbs/1000 ft
- Max. Recommended Pulling Tension: 64 lbs.
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Min. Bond Radius: 1.700 in.
- Flex Cycle Rating: 1 Million Flexes
- Applicable Standards: UL Style 2587, CSA 600 V, VDE 0472, RoHS, REACH
- Nominal Capacitance Conductor to Conductor: Not specified
- Max. Operating Voltage: 600 V UL
- Overall Impedance and Inductance: Not specified
- Available Lengths: 100 ft, 500 ft, 7000 ft spools
- Certifications and compliance: UL, CSA, RoHS, REACH, EU Low Voltage Directive
Buy the Belden Series 73402W Unshielded Multi-Conductor Cable: 73402W0081000
Purchase the Belden 73402W series multi-conductor cable online for reliable performance in flexible wiring applications. Designed with 14 AWG stranded bare copper conductors, PVC insulation, and oil-resistant jacket, it offers up to 1 million flex cycles, ensuring longevity under frequent flexing conditions. Suitable for UL and CSA standards, this cable supports voltage ratings up to 600V and complies with environmental regulations like RoHS and REACH. Order now for quick delivery and assured quality for industrial and commercial projects.
Get Belden 73402W0081000 today—built for durability, flexibility, and advanced electrical performance in demanding environments.
Frequently Asked Questions
Where can I buy BELDEN 73402W0081000?
You can click on the BUY or RFQ button to purchase 73402W0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73402W0081000?
You can download the 73402W0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73402W0081000?
BELDEN
