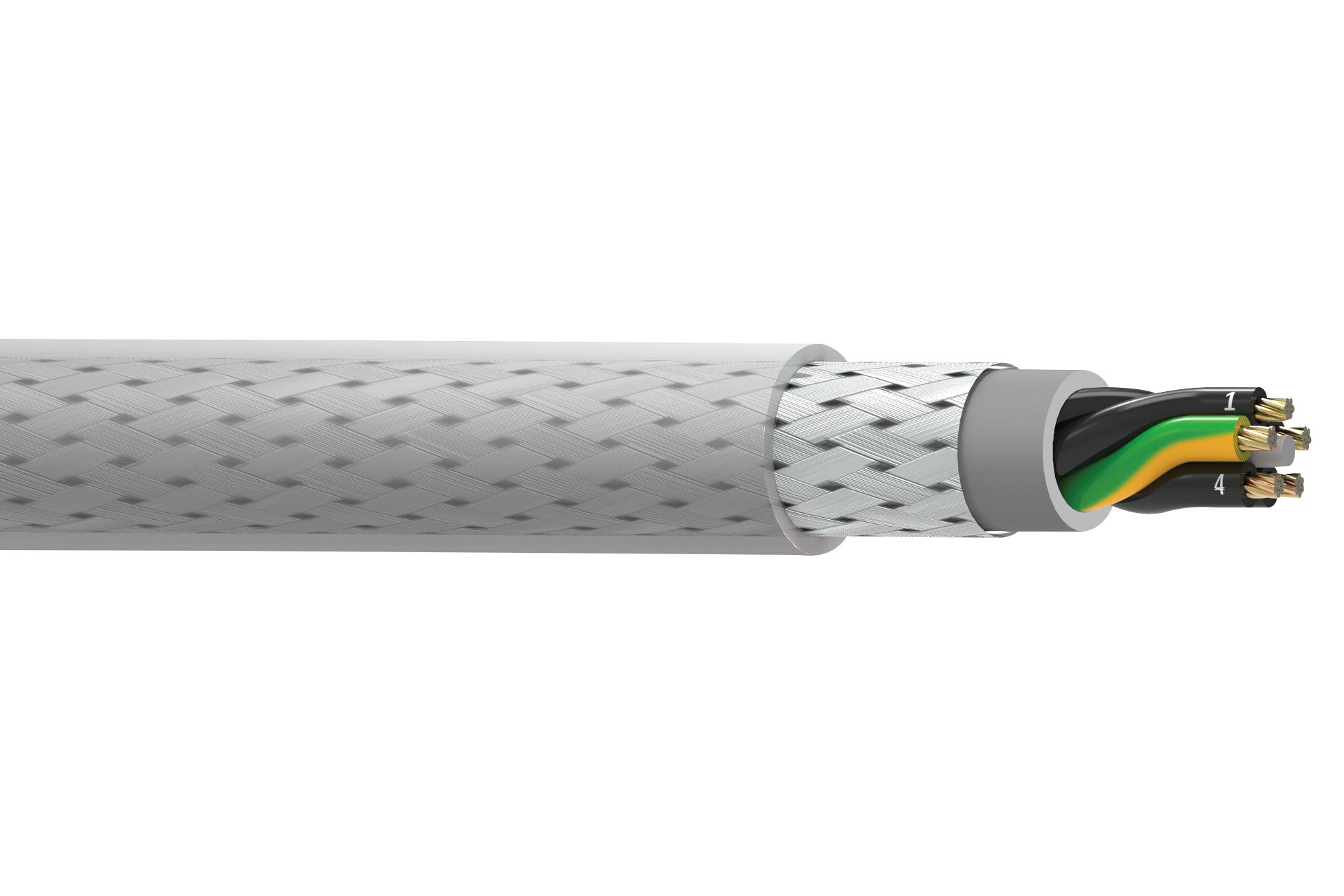

BELDEN 73407WS008100 Shielded Multi-Conductor Cable
The 73407WS multi-conductor cable is designed for applications requiring shielding and flexibility, with a 600V rating. Comprising 14 AWG stranded bare copper conductors with PVC insulation, it features an oil-resistant PVC inner jacket, a tinned copper braid shield with 85% coverage, AND an oil-resistant overall PVC jacket. The cable supports moderate flexing with up to 1 million flex cycles, and its overall diameter is 0.581 inches. Suitable for industrial wiring, it withstands temperatures from -40°C to +90°C when stored and operates efficiently in flexing conditions from -6°C to 190°C.
BELDEN 73407WS008100 Shielded Multi-Conductor Cable Specifications:
- Conductor: 14 AWG stranded (41x30) bare copper with PVC insulation
- Inner Jacket Material: PVC, 0.035 inches thick
- Outer Shield Material: Tinned copper braid, 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.581 inches
- Storage Temperature: -40°C to +90°C
- Operating Temperature (Flexing): -6°C to 190°C
- Bulk Cable Weight: 490 lbs per 1000 ft
- Max Pulling Tension: 240 lbs
- Min Bend Radius: 2.900 inches
- Flex Cycle Rating: 1 million flexes
- Applicable Standards: UL, CSA, RoHS II, EU Low Voltage Directive, VDE 0472
- Electrical Resistance: Conductor DC Resistance 1.670 ohms per 1000 ft
- Nominal Capacitance and Inductance values provided
- Appropriate for industrial, control, and automation wiring requiring shielding and high flex life
Buy the Belden Series 73407 Shielded Multi-Conductor Cable: 73407WS008100
Purchase the Belden Series 73407WS shielded multi-conductor cable online today to benefit from its exceptional flexibility, durability, and shielding. Perfect for industrial environments requiring a 600V rated cable with oil-resistant PVC jackets and tinned copper braid shielding, this cable offers high flex life, supporting up to 1 million flex cycles. Its compact diameter and temperature range make it suitable for demanding applications. Order now to secure reliable cabling that meets safety standards, with quick delivery and expert support for your projects.
Order your Belden Series 73407WS shielded multi-conductor cable today and ensure reliable, high-flex performance for your industrial wiring needs.
