BELDEN 73412W0081000 Multi-Conductor Cable

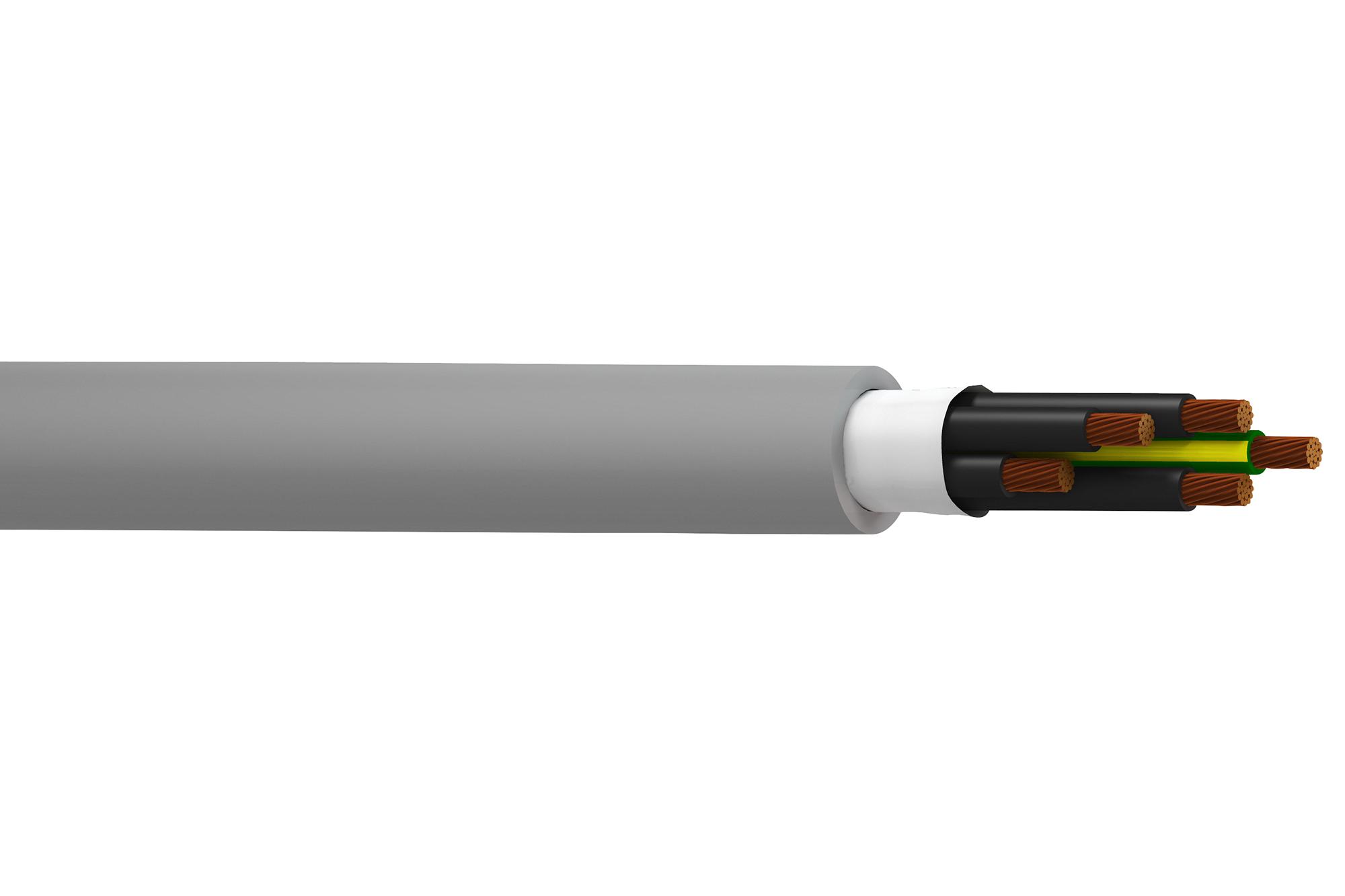

The 73412W multi-conductor cable is rated for 600V and is designed for light to moderate flexing applications with up to 1 million flex life cycles. It features 14 AWG stranded bare copper conductors with PVC insulation and an oil-resistant PVC jacket, making it suitable for burial and flexible installations. The cable's overall diameter is 0.667 inches, with a weight of 590 lbs per 1000 feet. It complies with UL Style 2587 standards, RoHS, and other environmental regulations, ensuring high safety and performance standards.
BELDEN 73412W0081000 Multi-Conductor Cable Specifications:
- Conductor AWG: 14
- Total Number of Conductors: 12C
- Ground Wire AWG: 14
- Ground Wire Stranding: 44x30
- Ground Wire Conductor Material: Bare Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket Material: PVC
- Overall Diameter: 0.667 inches
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range: Flexing -8°C To +90°C
- Bulk Cable Weight: 590 lbs/1000 ft
- Max. Pulling Tension: 366 lbs
- Min.bend Radius: 3.300 inches
- Flex Cycle Rating: 1 Million Flexes
- Applicable Standards: UL Style 2587, RoHS compliant
- Environmental Compliance: Eu Directive 2011/65/EU, China RoHS
- Flame Test: VDE 0472, Section 803
- Oil Resistance: Yes
- Suitable for Burial: Yes
- Max Operating Voltage UL: 600 V
- Capacitance Conductor to Conductor: Specific values not listed
- Resistance: Specific values not listed
- Inductance: 0.170 microhenries
Buy the Buy Belden Multi-Conductor Cable Part Number 73412W Online
Find and purchase the Belden 73412W multi-conductor cable online today for your electrical wiring needs. This high-quality 600V unshielded cable features 14 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC jacket. Designed for light to moderate flexing applications, it offers one million flex life cycles, making it ideal for burial, industrial, and flexible wiring setups. With UL and RoHS compliance, this durable cable guarantees safety, performance, and ease of installation. Order now and equip your projects with reliable, high-performance wiring solutions.
Order your Belden 73412W flexible multi-conductor cable today and ensure reliable performance in your industrial or installation projects.
Frequently Asked Questions
Where can I buy BELDEN 73412W0081000?
You can click on the BUY or RFQ button to purchase 73412W0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73412W0081000?
You can download the 73412W0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73412W0081000?
BELDEN
