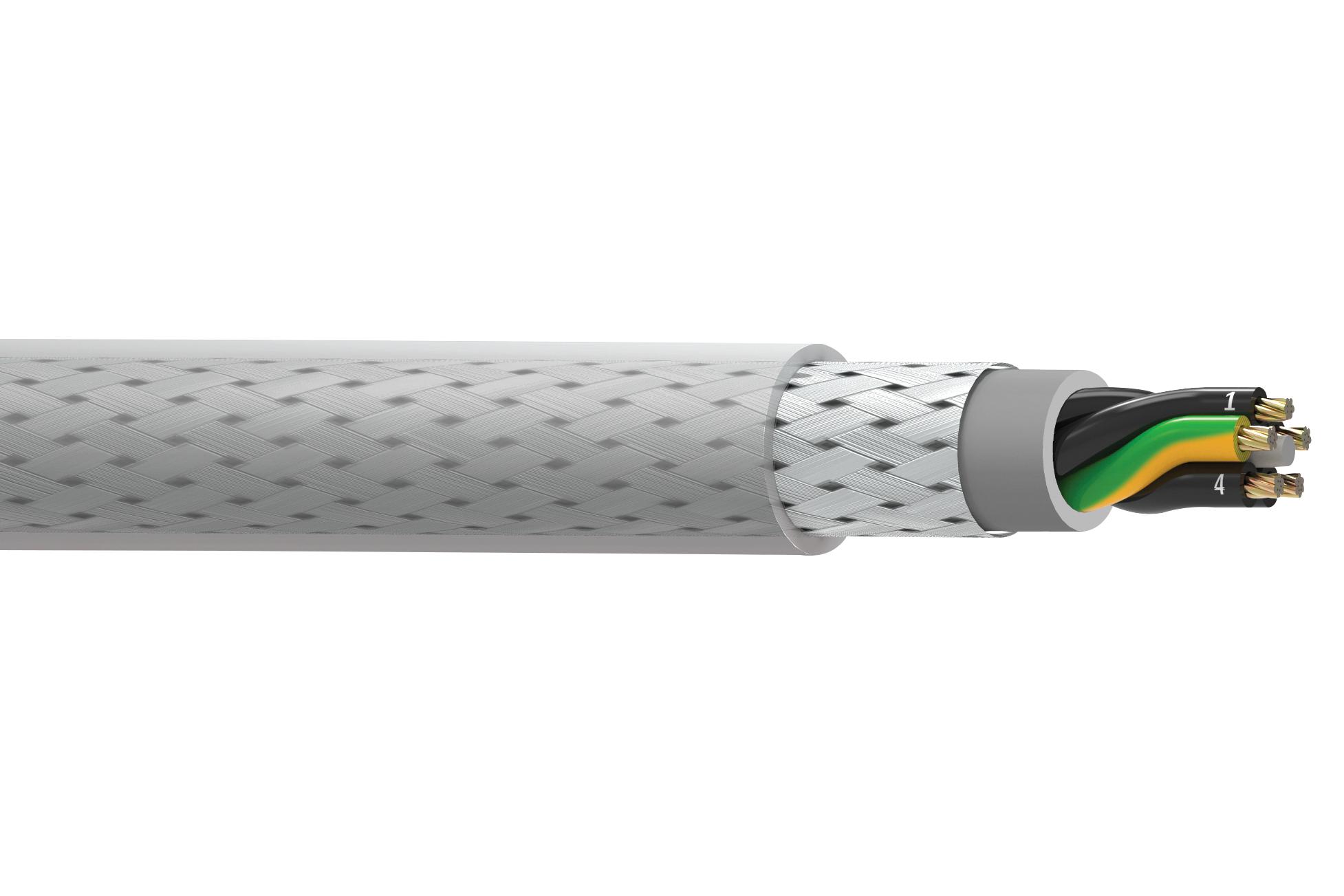

BELDEN 73605WS0081000 Shielded Multi-Conductor Cable
The 73605WS multi-conductor shielded cable is rated at 600V and designed for light to moderate flexing applications, supporting up to 1 million flex cycles. It features 16 AWG stranded bare copper conductors (26x30), insulated with PVC, and an oil-resistant PVC inner jacket. The cable has a tin-plated copper braid shield with 85% coverage, an oil-resistant PVC outer jacket, and is suitable for harsh industrial environments. It complies with UL, CSA, and RoHS standards, making it ideal for demanding electrical and control wiring. Its flexible construction ensures durability in dynamic conditions, perfect for automation, manufacturing, and control systems.
BELDEN 73605WS0081000 Shielded Multi-Conductor Cable Specifications:
- Conductor Material: 16 AWG stranded bare copper (26x30)
- Insulation Material: PVC
- Inner Jacket Material: PVC
- Outer Shield Material: Tin-plated copper braid, 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Voltage Rating: 600 V
- Flex Cycle Rating: 1 Million Flexes
- Storage Temperature Range: -40°C to +90°C
- Operating Temperature Range: -8°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 271 sq/ft per 1000 ft
- Max Recommended Pulling Tension: 111 lbs
- Minimum Bend Radius: 2.200 inches
- Certifications & Standards: UL (THHN/THWN, Style 2587), CSA (600 V AWM), RoHS II, VDE 0472
- Applicable Environmental Regulations: RoHS II, REACH, California Proposition 65
Buy the Belden Series Shielded Data Cable: 73605WS
Enhance your electrical installations with this high-quality shielded multi-conductor cable rated for 600V, featuring oil-resistant PVC insulation, durable copper braid shield, and support for 1 million flex cycles. Its flexible construction guarantees long-lasting performance in dynamic industrial environments. Perfect for control wiring, automation, and manufacturing applications, this cable meets UL, CSA, and RoHS standards, ensuring safety and environmental compliance. Secure your project’s connectivity and durability by ordering this proven solution online today, and benefit from fast delivery and trusted quality.
Order your Belden Series 73605WS shielded multi-conductor cable today and ensure reliable performance for your demanding electrical projects.
