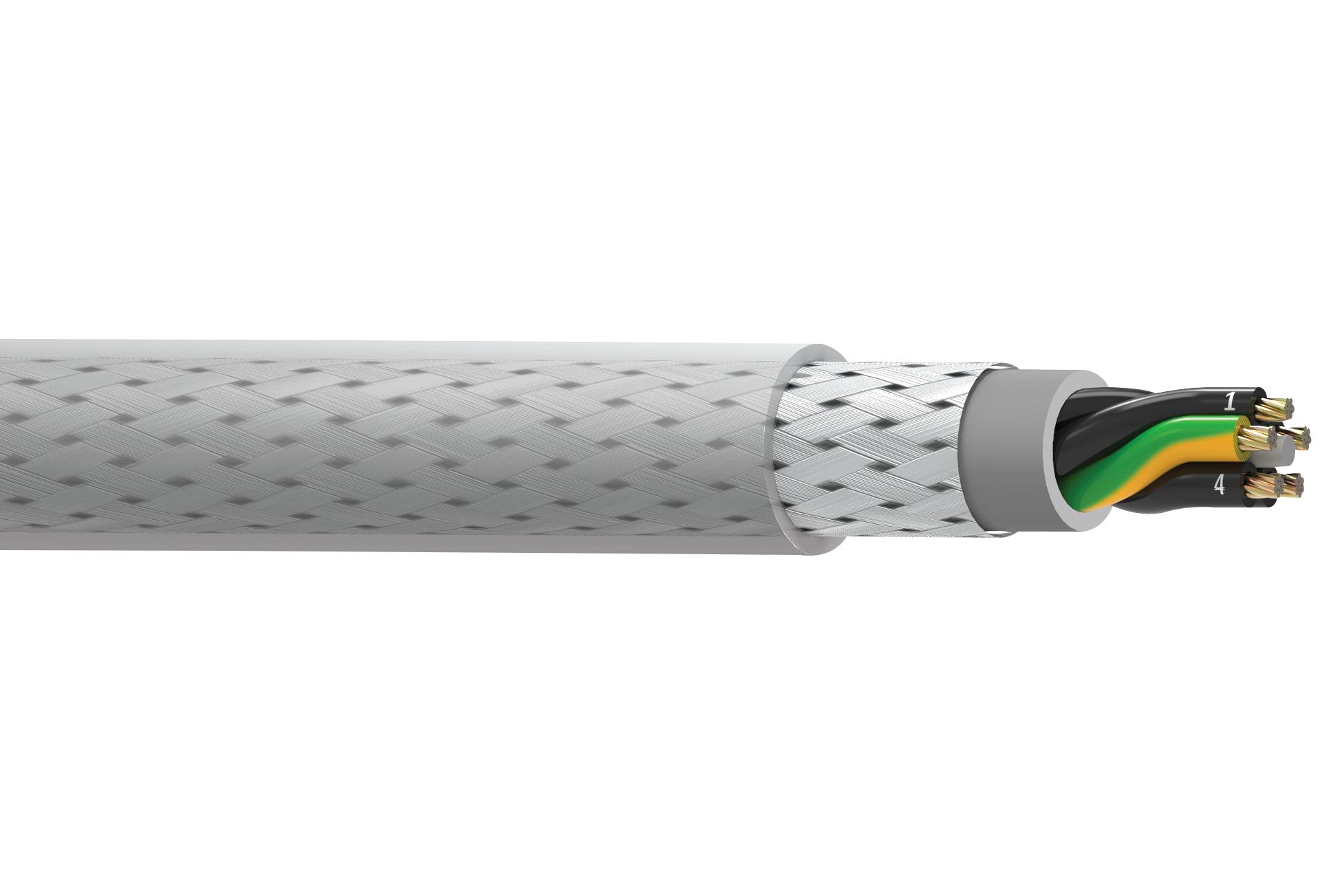

BELDEN 73805WS008100 Multi-Conductor Shielded Cable
The Belden 73805WS multi-conductor shielded cable is a robust solution for applications requiring flexibility and signal integrity. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, an oil-resistant PVC inner jacket, a tinned copper braid shield (85% coverage), and an overall oil-resistant PVC jacket, this cable provides excellent protection against electromagnetic interference. Its design makes it suitable for applications involving light to moderate flexing, with a flex life cycle rating of up to 1 million flexes. The cable is compliant with various industry standards, including UL and CSA specifications, and is RoHS II compliant, making it an environmentally responsible choice for a wide range of industrial and commercial applications.
BELDEN 73805WS008100 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 18
- Number of Conductors: 5
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Overall Nominal Diameter: 10.516 mm
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nominal Wall Thickness (mm): 0.762
- Inner Jacket Nominal Diameter (mm): 8.026
- Outer Shield Material: TC - Tinned Copper
- Outer Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nominal Wall Thickness (mm): 0.889
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight: 322.939 Kg/Km
- Max Recommended Pulling Tension: 320.270 N
- Min Bend Radius/Minor Axis: 52.578 mm
- Min Bend/Installation: 52.578 mm
- Min Bend Radius (Continuous Flexing): 52.578 mm
- Flex Cycle Rating: 1 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nominal Inductance: 0.623 µH/m
- Nominal Capacitance Cond. to Other Cond. & Ground: 144.364 pF/m
- Nominal Conductor DC Resistance (DCR @ 20°C): 21.655 Ohm/km
- Nominal Outer Shield DC Resistance (DCR @ 20°C): 8.104 Ohm/km
