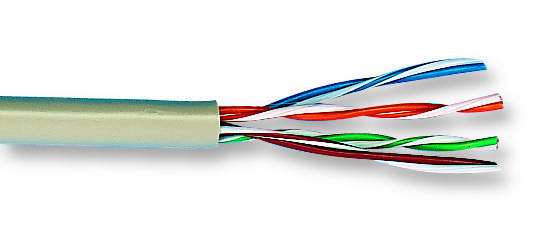

BELDEN 7812E00B100 Category 6 Network Cable
The Category 6 Bonded-Pair Cable by Belden is designed for high-performance indoor networking applications, supporting 250MHz bandwidth for fast data transmission. Constructed with 23 AWG solid bare copper conductors and polyethylene insulation, it features a PVC jacket for durability and ease of installation. Suitable for horizontal and building backbone wiring, it supports Gigabit Ethernet, 10Base-T, 100Base-T, and FDDI. Compliant with IEC, CENELEC, and ANSI standards, this cable ensures reliable connectivity in commercial and industrial network environments. Its robust construction offers excellent electrical characteristics and environmental resistance.
BELDEN 7812E00B100 Category 6 Network Cable Specifications:
- Category: 6
- Bandwidth: 250MHz
- Conductors: 23 AWG solid bare copper
- Insulation: Polyethylene, 1.1mm diameter
- Outer Jacket: PVC, Grey or Blue, 6.1mm diameter
- Number of Pairs: 4
- Conductor Resistance: Max 95 Ohm/km
- Capacitance: 1600 pF/m
- Impedance: 100 Ohm
- Delay: 40 ns/100m
- Mechanical Resistance: Min. Elongation at break 100%, Tensile strength 9 MPa
- Environmental: Indoor Euroclass Eca, -30°C to +60°C operating temperature
- Standards: ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-B.2-1
- Dielectric Material: Polyethylene
- Maximum Recommended Current: 1.5A
- Fiber Optic Compatibility: Not applicable
- Weight: 41 kg/km
- Minimum Bend Radius During Installation: 52mm
- Max Tension During Pulling: Suitable for standard network installation
- Flammability: IEC 60332-1, LSOH, Toxicity tested
Buy the Belden 7812E – Reliable Network Cable for Industrial Applications
Purchase the Belden Category 6 Network Cable online today for your high-performance networking setups. This durable indoor cable supports Gigabit Ethernet, FDDI, and other high-speed data applications. Its solid copper conductors and polyethylene insulation ensure reliable electrical performance, while the PVC jacket provides extra protection. Ideal for horizontal runs and building backbone connections, it complies with industry standards for safety and quality. Buy now to enjoy fast delivery and dependable connectivity for your commercial or industrial network infrastructure needs.
Order your Belden 7812E bonded-pair cable today and ensure high-speed, reliable network connectivity in your data infrastructure projects.
