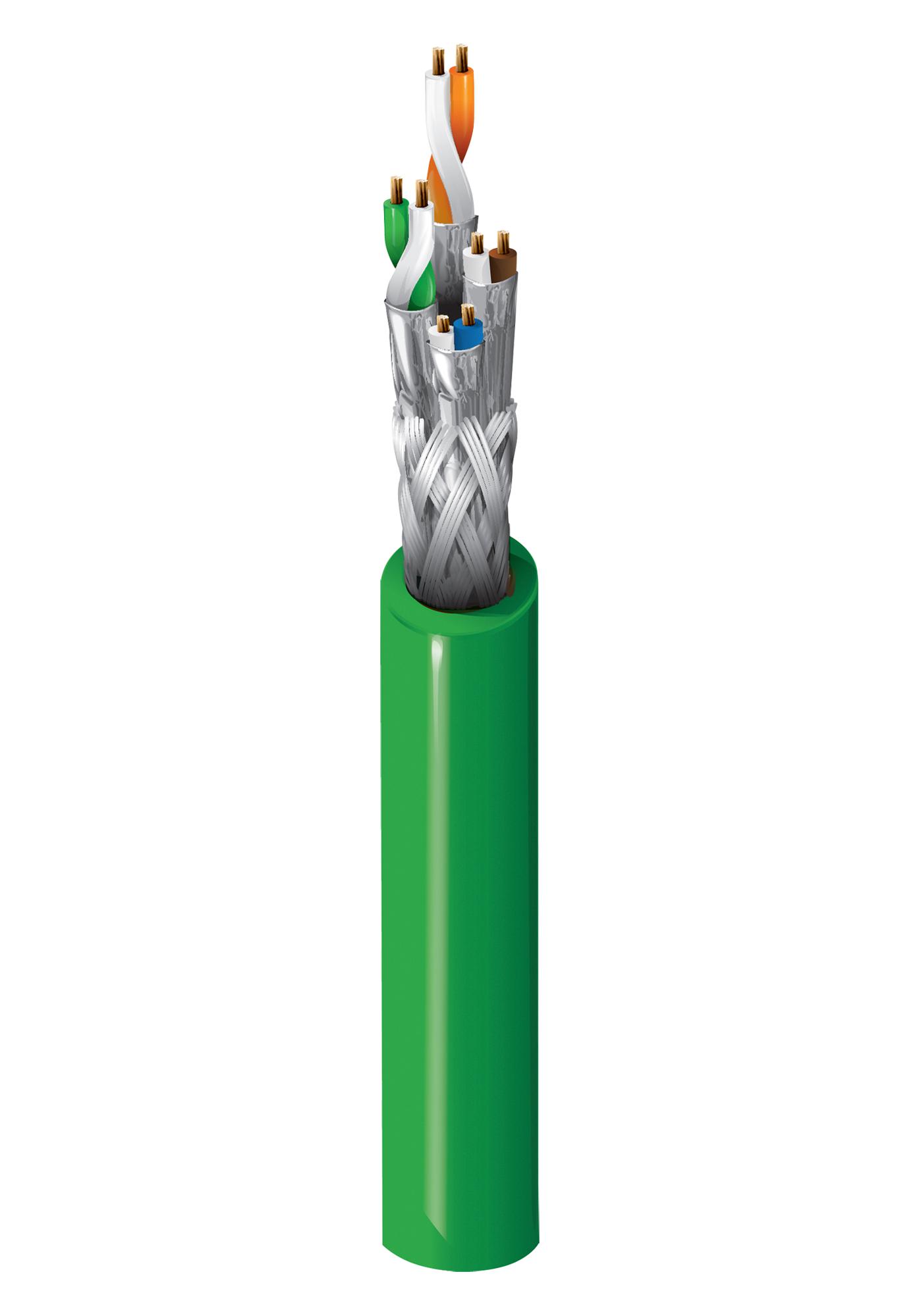

Belden 74011NH00100 Networking Cable
This Category 6A S/FTP networking cable is designed for high-speed data transmission in structured cabling systems, supporting applications like 10GBase-T and Gigabit Ethernet. It features stranded bare copper conductors, foamed polyethylene insulation, and a LSZH jacket in green for safety. The cable includes four twisted insulated pairs with foil shielding and a solid tinned copper braid for enhanced noise immunity. Compliant with international standards ISO/IEC 11801 and EN 50173-1, it ensures reliable performance, durability, and safety in both horizontal and building backbone installations.
Belden 74011NH00100 Networking Cable Specifications:
- Conductor Material: Stranded bare copper
- Conductor Diameter: AWG 23/7 (7x0.22 mm)
- Insulation Material: Foamed polyethylene
- Nominal Insulation Diameter: 1.58 mm
- Shielding: Foil laminated aluminium-polyester, all twisted pairs with overall foil, solid tinned copper braid coverage 285%
- Jacket Material: LSZH
- Jacket Diameter: 8.7 + 0.3 mm
- Jacket Colour: Green (RAL 6018)
- Maximum Operating Voltage: 72 V D.C.
- Maximum Operating Voltage UL: 30 Vac
- Operating Temperature Range: -40°C to +80°C
- Maximum Bending Radius: 45 mm during operation, 90 mm during installation
- Fire Performance: Pass IEC 60332-1-2 and AWM 20851 flame test
- Environmental Compliance: RoHS compliant
- Resistance: D.C. resistance <7.19 Ω/100m, insulation resistance 25000 MΩ·km
- Capacitance: Mutual capacitance <56 nF/km
- Delay Skew: 25 ns/100m
- Impedance: 81.8 Ω to 86.8 Ω
- Minimum Bending Radius: 45 mm
- Core Construction: 2 twisted insulated pairs with foil, 4 pairs total
- Standards: ISO/IEC 11801, EN 50173-1
Buy the Buy Belden Network Cable Part Number 74011NH00100 Online
Order Belden 74011NH00100 networking cable online today for high-performance Ethernet connectivity. This Category 6A S/FTP cable features foil shielding, LSZH jacket, and copper conductors, ensuring optimal data transmission, durability, and safety. Perfect for horizontal runs and backbone wiring, it supports 10GBase-T, Gigabit Ethernet, and other applications. With compliance to international standards like ISO/IEC 11801, this rugged cable offers excellent resistance to fire, moisture, and electrical interference. Make your network robust and future-proof with our quick and secure online purchasing options.
Get Belden 74011NH00100 today—designed for high-speed data transmission and reliable Ethernet networking in building backbone systems.
Frequently Asked Questions
Where can I buy Belden 74011NH00100?
You can click on the BUY or RFQ button to purchase 74011NH00100 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part 74011NH00100?
You can download the 74011NH00100 datasheet or visit the Belden website for support.
Who is the manufacturer of 74011NH00100?
Belden
