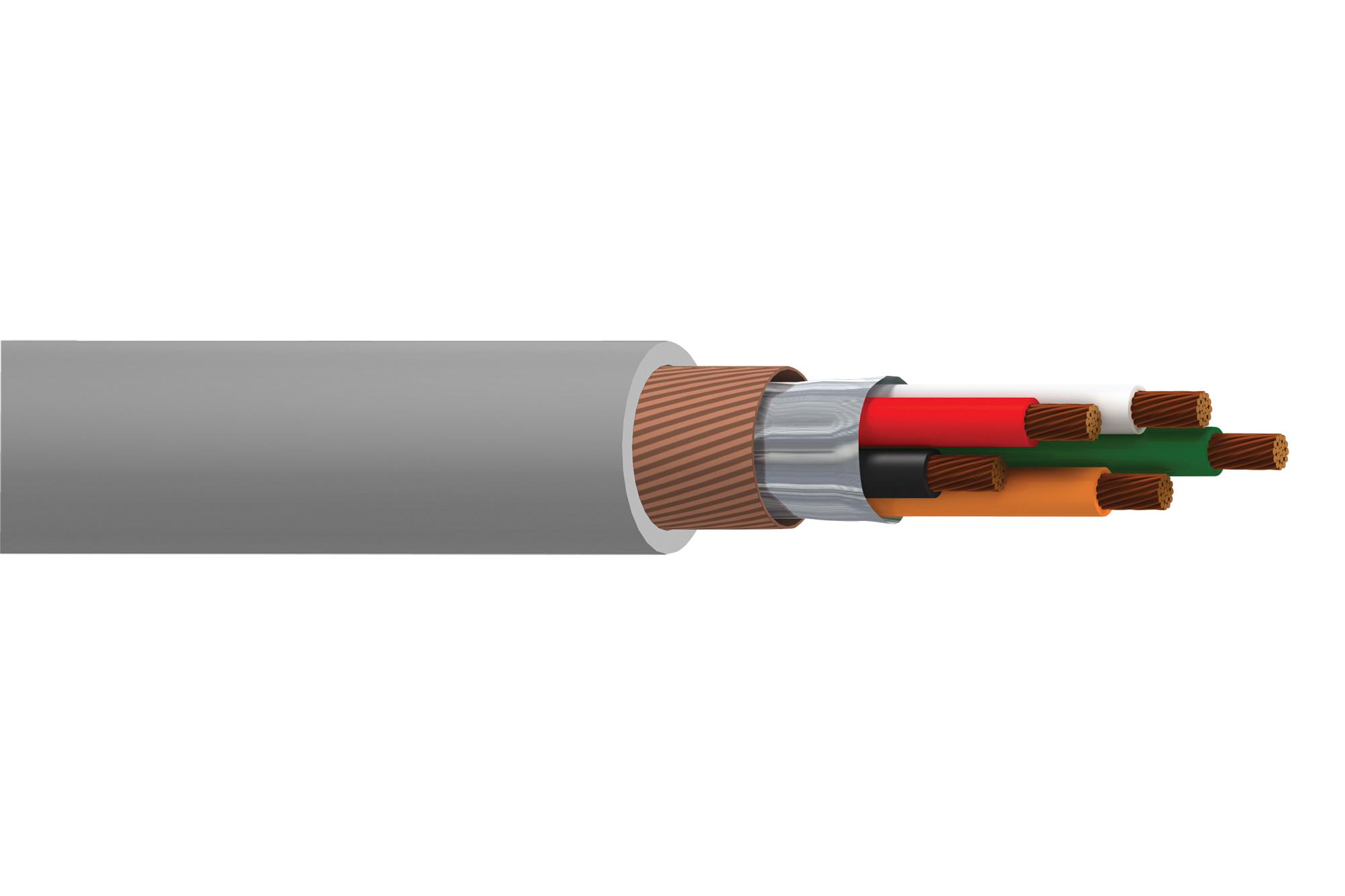

BELDEN 76003WS0081000 Multiconductor Data Cable
The MachFlex™ 76000WS Series Multiconductor Foil/Spiral Shielded Data Cable is engineered for high flexibility and durability in space-constrained industrial settings. Featuring 28 AWG tinned copper conductors, PVC insulation, aluminum/polyester foil shielding, and a tinned copper spiral shield with 90% coverage, it ensures excellent signal integrity and interference protection. The cable's oil-resistant PVC jacket makes it suitable for demanding environments. Capable of enduring up to 6 million flex cycles, it performs reliably within a temperature range of -10°C to 105°C, rated for 300V, ideal for automation, manufacturing, and process control applications.
BELDEN 76003WS0081000 Multiconductor Data Cable Specifications:
- Conductor Material: 28 AWG stranded (7x36) tinned copper
- Insulation Material: PVC, thickness 0.010 inch
- Outer Shield Material: Aluminum/Polyester Foil, 90% coverage
- Outer Shield Material 2: Tinned copper spiral shield
- Outer Jacket Material: Oil-resistant PVC
- Overall Nominal Diameter: 0.180 inch
- Bulk Cable Weight: 20 lbs/1000 ft
- Maximum Pulling Tension: 8,300 lbs
- Minimum Bend Radius: 1.400 inch
- Flex Life Cycle: 6 million flexes
- Operating Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Rated Voltage: 300V
- Applicable Standards: UL, RoHS II, CSA, REACH
- Flame Test: CSA FT4
- Suitability for Burial: Yes
Buy the Belden 76003WS – Reliable Flexible Data Cable for Industrial Applications
Enhance your industrial automation setup with the Belden Multiconductor Data Cable. Designed for continuous flexing up to 6 million cycles, this high-quality cable offers excellent shielding, oil-resistant PVC jacket, and reliable performance across a wide temperature range. Its robust construction ensures durability in space-constrained applications, making it perfect for factory automation, process control, and demanding industrial environments. Order online today to benefit from top-tier quality and ensure seamless signal transmission and system reliability.
Buy Belden 76003WS now and experience unmatched flexibility, durability, and excellent shielding for demanding industrial automation and control systems.
Frequently Asked Questions
Where can I buy BELDEN 76003WS0081000?
You can click on the BUY or RFQ button to purchase 76003WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76003WS0081000?
You can download the 76003WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76003WS0081000?
BELDEN
