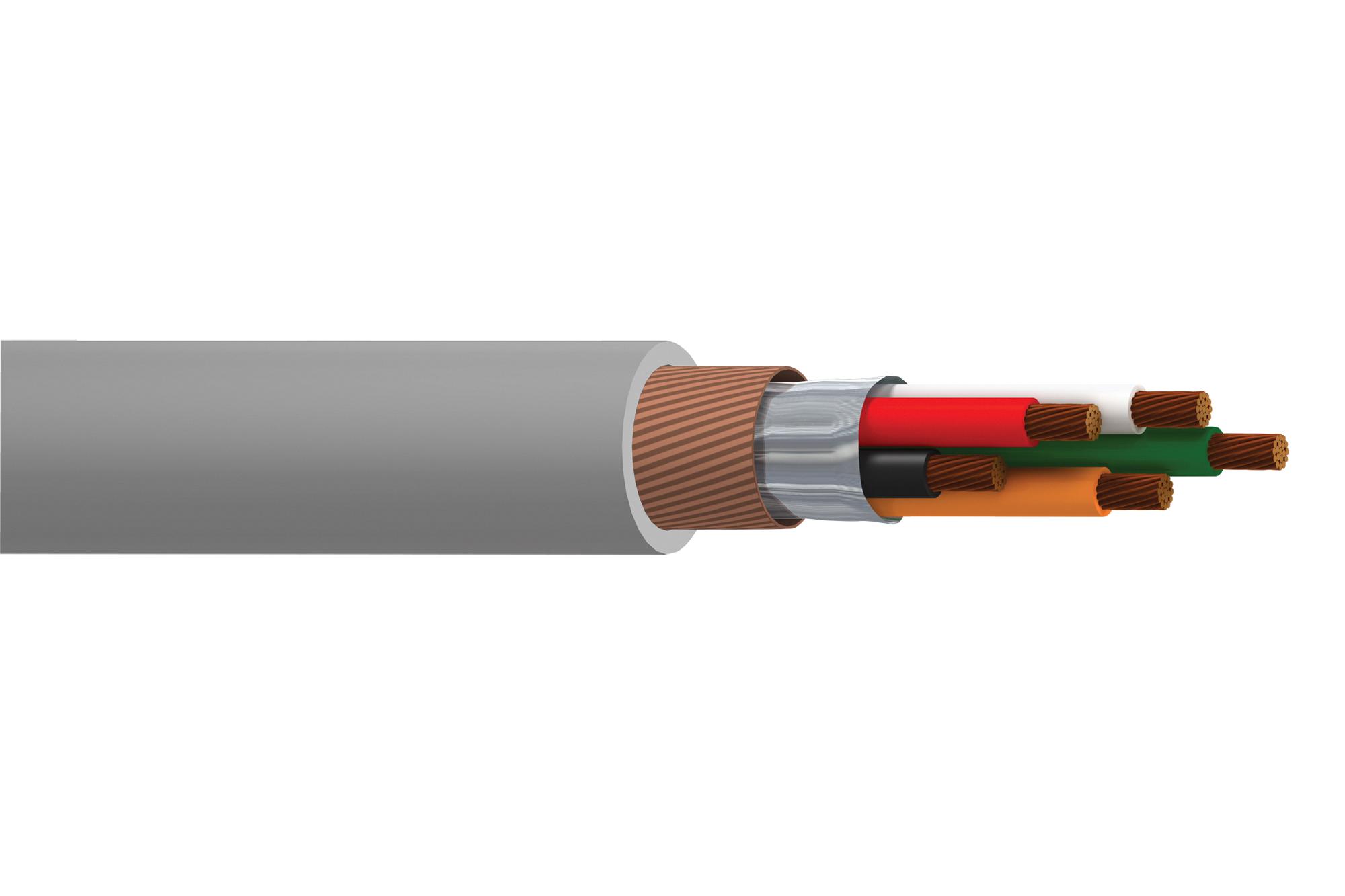

BELDEN 76004WS008500 Flexible Data Cable
The 76004WS multi-conductor cable is designed for data applications requiring high flex life, capable of enduring up to 6 million flex cycles. It features 28 AWG stranded tinned copper conductors with PVC insulation, an aluminum/polyester foil, and a spiral copper shield with 90% coverage for superior EMI protection. The cable has an oil-resistant PVC jacket, is rated for 300V, and complies with standards including UL, RoHS, and CSA. Suitable for continuous flexing environments, it is ideal for industrial automation, control systems, and signal transmission with durability and flexibility.
BELDEN 76004WS008500 Flexible Data Cable Specifications:
- Conductor: 28 AWG stranded (7x36) tinned copper
- Insulation: PVC, 0.010 inches thick
- Outer Shield: Aluminum/Polyester foil with 90% coverage, Tinned copper spiral shield
- Outer Jacket: Oil-resistant PVC
- Bulk Cable Weight: 22 lbs/1000 ft
- Max Recommended Pulling Tension: 10 lbs
- Minimum Bend Radius: 1.5 inches
- Flex Cycle Rating: 6 million flexes
- UL and CSA Flame Test: FT4
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Nominal Capacitance: (value not specified)
- Nominal Inductance: (value not specified)
- DC Resistance Conductors: 66.000 ohms
- Outer Shield Resistance: 6.600 ohms
- Compliance: RoHS, REACH, Prop 65, UL, CSA, EU Directive 2011/65/EU
- Suitable for burial environments
Buy the Belden 76004WS – Reliable Data Cable for Industrial Applications
Purchase the flexible data cable online today to ensure high-performance, durable connectivity for your automation or control systems. Designed for continuous flexing, this 28 AWG multi-conductor cable features foil and spiral shields for optimal EMI protection, an oil-resistant PVC jacket, and a rating of 300V. With a flex cycle life of 6 million, it suits harsh industrial environments, offering superior reliability and safety standards. Simplify your sourcing and secure fast delivery by ordering online now.
Buy Belden 76004WS now and experience unmatched flexibility, durability, and EMI protection for your industrial data transmission needs.
Frequently Asked Questions
Where can I buy BELDEN 76004WS008500?
You can click on the BUY or RFQ button to purchase 76004WS008500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76004WS008500?
You can download the 76004WS008500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76004WS008500?
BELDEN
