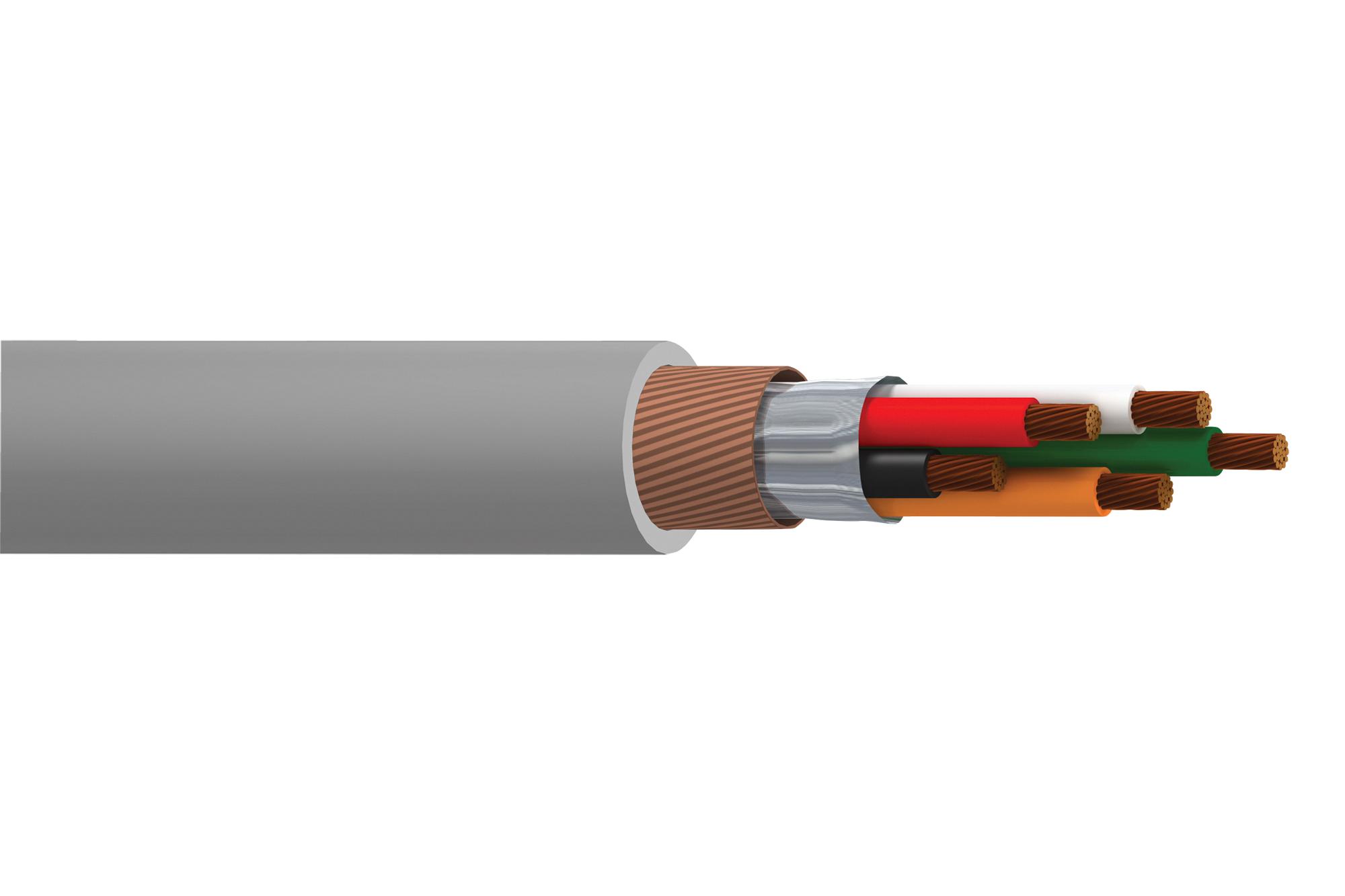

BELDEN 76007WS0081000 Industrial Data Cable
The MachFlex 76000WS multiconductor cable enhances industrial automation with its flexible design supporting 6 million flex cycles, aluminum/polyester foil and spiral shields, and oil-resistant PVC jacket. The cable features 28 AWG stranded tinned copper conductors, PVC insulation, and a overall diameter of 0.223 inches. It is rated for 300V, with a temperature range of -10°C to 105°C static and +5°C to 105°C dynamic, ideal for factory automation and control systems. Its robust shielding and flexible construction ensure reliable signal transmission in space-constrained, dynamic environments.
BELDEN 76007WS0081000 Industrial Data Cable Specifications:
- Conductors: 28 AWG stranded (7x36) tinned copper
- Insulation Material: PVC, 0.010 in thickness
- Outer Shield: Aluminum/Polyester foil, 90% coverage; Tinned copper spiral shield
- Outer Jacket: Oil-resistant PVC, overall diameter 0.223 in
- Mechanical: Max pulling tension 14,800 lbs; Min bend radius 1.800 in; Weight 31 lbs/1000 ft
- Electrical: Nominal capacitance, inductance, resistance provided; Max operating voltage 300V
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Flex Cycle Rating: 6 million cycles
- Standards: UL, ROHS, CSA, REACH, California Proposition 65
- Applicable for continuous flexing applications in industrial settings
Buy the Buy Industrial Equipment Data Cable Part Number 76007WS0081000 Online
Order the Belden 76007WS series multiconductor cable online today to ensure your industrial automation projects benefit from superior flexibility, shielding, and durability. Designed to withstand up to 6 million flex cycles with protective foil and spiral shields, it supports reliable signal transmission in space-constrained environments. Its oil-resistant PVC jacket and broad temperature range make it ideal for factory automation. Trust in Belden’s quality for consistent, high-performance connections that meet demanding industrial standards.
Buy Belden 76007WS0081000 now and experience unmatched reliability and performance in flexible industrial automation applications.
Frequently Asked Questions
Where can I buy BELDEN 76007WS0081000?
You can click on the BUY or RFQ button to purchase 76007WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76007WS0081000?
You can download the 76007WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76007WS0081000?
BELDEN
