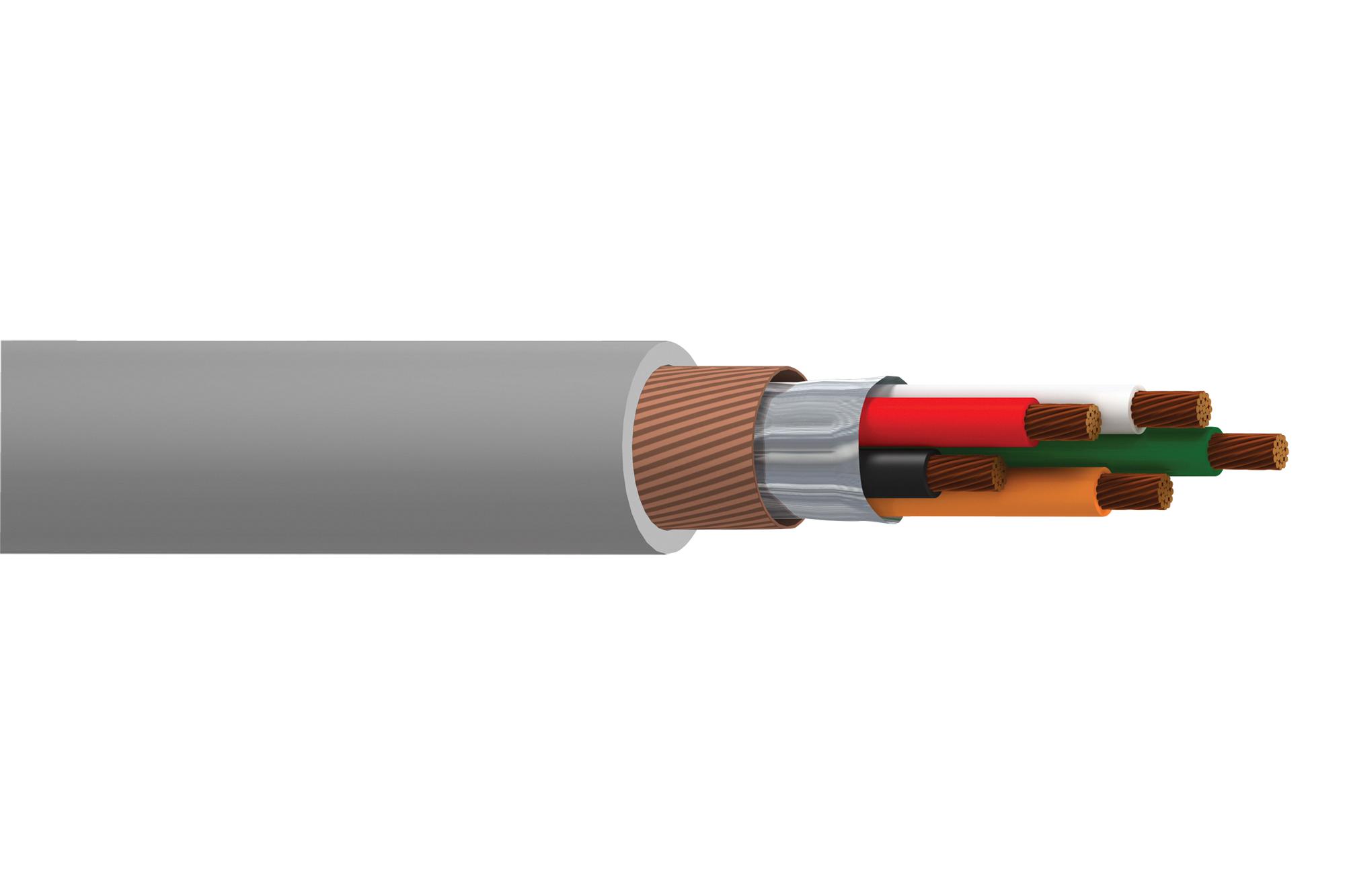

BELDEN 76012WS0081000 Multiconductor Data Cable
The MachFlex 76012WS Series Multiconductor Data Cable is engineered for industrial environments demanding high flexibility and reliable shielding. It features 28 AWG stranded tinned copper conductors with PVC insulation, an aluminum/polyester foil shield, and a spiral copper shield providing 90% coverage. Designed for continuous flexing up to 6 million cycles, it is oil-resistant, UL listed, RoHS compliant, and suitable for burial. Operating from -10°C to 105°C (static) and +5°C to 105°C (dynamic), it offers a 300V voltage rating, making it ideal for factory automation, control systems, and data transmission applications.
BELDEN 76012WS0081000 Multiconductor Data Cable Specifications:
- Conductor: 28 AWG stranded (7x36) tinned copper
- Insulation: PVC, 0.010 in. thickness
- Outer Shield: Aluminum/Polyester Foil, 90% coverage, Copper Spiral Shield
- Outer Jacket: Oil-resistant PVC
- Overall Diameter: 0.283 in.
- Bulk Cable Weight: 45 lbs/1000 ft.
- Maximum Pulling Tension: 23,100 lbs.
- Minimum Bend Radius: 2.300 in.
- Flex Cycle Rating: 6 million flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Voltage Rating: 300V
- CSA Flame Test: FT4
- Applicable Standards & Compliance: UL, RoHS, REACH, Proposition 65
- Suitable for burial and continuous flexing applications.
Buy the Belden Series Flex 76012WS: Multiconductor Foil/Spiral Shield Data Cable
Get the Belden Series 76012WS flexible multiconductor data cable online now for your industrial automation projects. Designed for continuous flexing up to 6 million cycles, it features high-quality foil and spiral shielding for excellent signal integrity. Its oil-resistant PVC jacket withstands harsh environments, making it suitable for factory automation, process control, and data transmission. With a voltage rating of 300V and broad temperature tolerance, this cable ensures reliable performance. Order today to enhance your automation setup with proven durability and superior shielding.
Order your Belden Series 76012WS flexible shielding cable today and ensure your industrial applications benefit from unmatched durability and high flex life.
Frequently Asked Questions
Where can I buy BELDEN 76012WS0081000?
You can click on the BUY or RFQ button to purchase 76012WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76012WS0081000?
You can download the 76012WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76012WS0081000?
BELDEN
