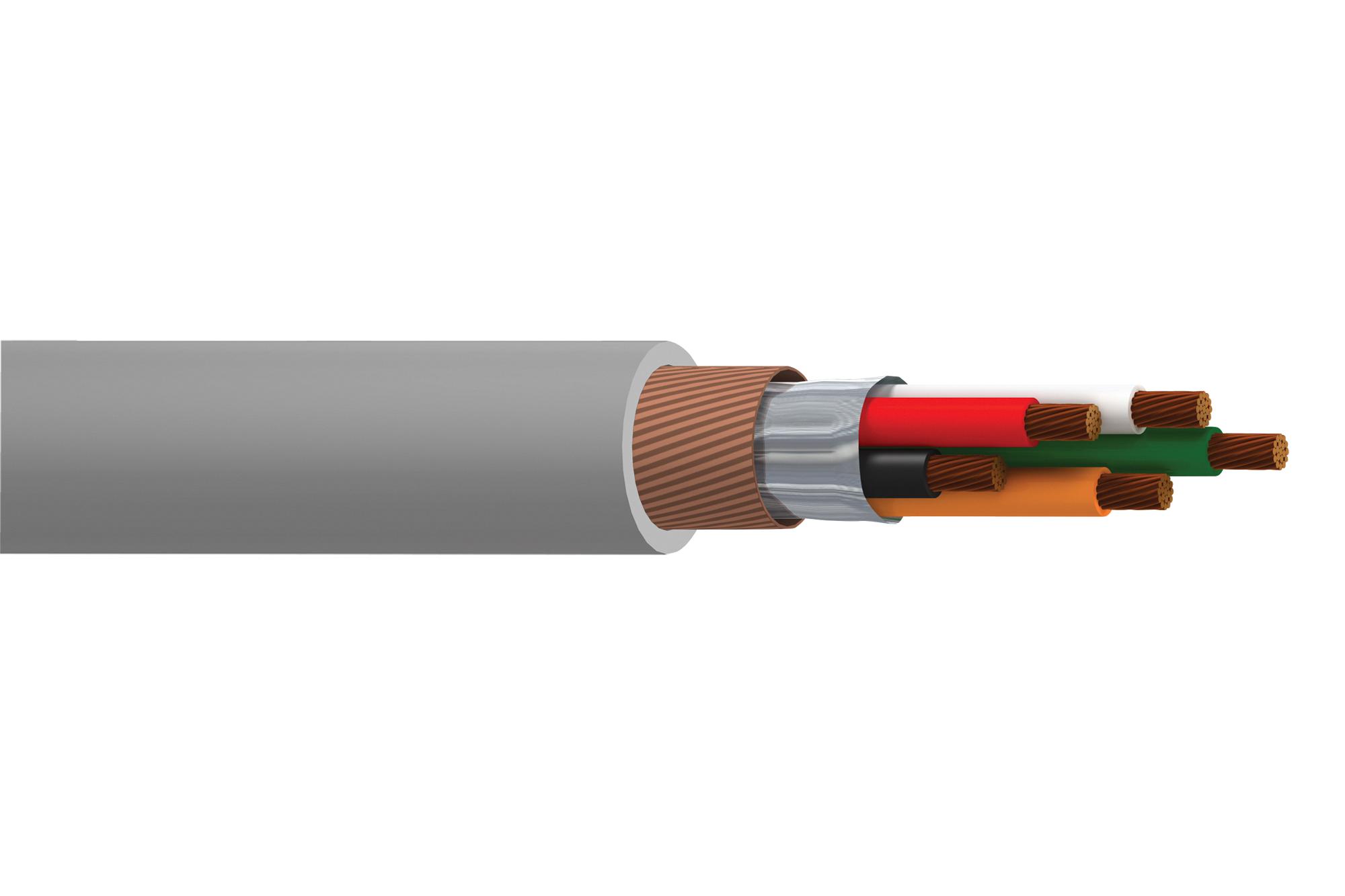

BELDEN 76105WS008100 Multiconductor Data Cable
The MachFlex 76000WS Series Multiconductor Data Cable is designed for flexible industrial environments with continuous flexing up to 6 million cycles. It features 26 AWG stranded tinned copper conductors, PVC insulation, aluminum/polyester foil shield, and a tinned copper spiral shield with 90% coverage. The oil-resistant PVC jacket and overall diameter of 5.359 mm ensure durability in harsh conditions. Suitable for dynamic industrial applications, this cable operates from -10°C to 105°C and supports a maximum voltage of 300V, ideal for automation and process control systems.
BELDEN 76105WS008100 Multiconductor Data Cable Specifications:
- Conductor: 26 AWG stranded (7x33) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester foil with 90% coverage, Tinned copper spiral shield
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 5.359 mm
- Bulk Cable Weight: 43.158 Kg/km
- Max Pulling Tension: 69.837 N
- Minimum Bend Radius (Flexible): 43.180 mm
- Flex Cycle Rating: 6 Million
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Operating Voltage: 300V
- CSA Flame Test: FT4
- Applicable Standards: UL, CSA, RoHS2, REACH
- Suitable for burial: Yes
- Resistance (DC): Conductor: 137.802 Ω/km
Buy the Belden Series 76000WS Foil/Spiral Shielded Data Cable: 76105WS008100
Enhance your industrial connectivity with the Belden Series 76000WS Multiconductor Data Cable, featuring foil/spiral shielding and a robust oil-resistant PVC jacket. Designed for dynamic applications, it supports over 6 million flex cycles, making it perfect for automation, factory automation, and process control. Its high-quality tinned copper conductors ensure superior electrical performance, while its temperature range of -10°C to 105°C withstands challenging environments. Order online now to secure a durable, flexible solution for your critical industrial systems.
Order your Belden Series 76000WS foil/spiral shielded data cable today and ensure reliable performance in flexible, harsh industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 76105WS008100?
You can click on the BUY or RFQ button to purchase 76105WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76105WS008100?
You can download the 76105WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76105WS008100?
BELDEN
