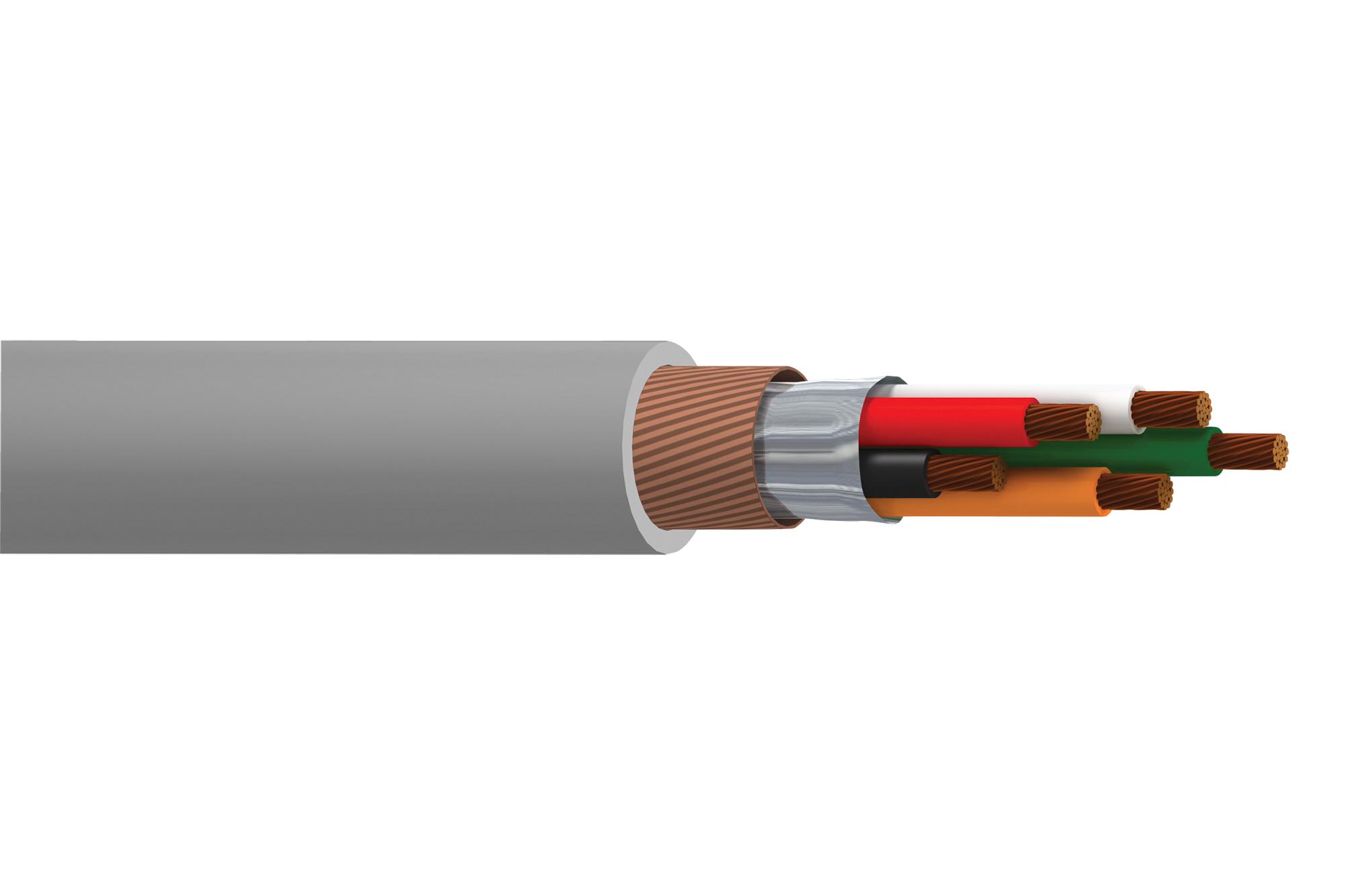

BELDEN 76118WS008100 Flexible Data Cable
The 76118WS multi-conductor cable features 26 AWG stranded (7x33) tinned copper conductors with PVC insulation and an aluminum/polyester foil shield with 90% coverage. It includes a tinned copper spiral shield, oil-resistant PVC jacket, and has a nominal overall diameter of 7.671 mm. Designed for data applications with a continuous flex rating of 6 million cycles, it complies with UL FT4 flame test, RoHS directives, and features a maximum operating voltage of 300V. Suitable for burial and continuous flexing, offering reliable performance in various wiring installations.
BELDEN 76118WS008100 Flexible Data Cable Specifications:
- Conductor: 26 AWG stranded (7x33) tinned copper
- Insulation Material: PVC
- Outer Shield Material: Aluminum/Polyester Foil
- Outer Shield Coverage: 90%
- Outer Jacket Material: PVC
- Overall Diameter: 7.671 mm
- Weight: 98.757 kg/km
- Max Pulling Tension: 204.617 N
- Min Bond Radius: 660.960 mm
- Flex Cycle Rating: 6 million flexes
- Temperature Range: -10 to 105°C (static), +5 to 105°C (dynamic)
- Flame Test: CSA FT4
- Applicable Standards: UL, RoHS, REACH, California Proposition 65
- Nominal Inductance: (not specified)
- Conductors Resistance: 137.802 Ω
- Nominal Operating Voltage: 300V
- Suitable for burial: Yes
- Compliance: UL (CECIC), RoHS, REACH
- External Diameter: 7.671 mm
Buy the Belden Series Data Cable: 76118WS
Order the flexible data cable Belden 76118WS online today for superior performance in data applications. Its 26 AWG stranded tinned copper conductors, foil/spiral shield, and oil-resistant PVC jacket ensure durability and high safety standards. With a 300V rating and an impressive flex cycle of 6 million, it is ideal for continuous flexing and burial applications. This cable meets UL FT4 flame tests, RoHS, REACH, and other environmental compliance standards, making it perfect for professional wiring projects that demand reliability and long-lasting operation.
Get Belden 76118WS today—built for durability and reliable data transmission in flexible wiring and harsh environments.
Frequently Asked Questions
Where can I buy BELDEN 76118WS008100?
You can click on the BUY or RFQ button to purchase 76118WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76118WS008100?
You can download the 76118WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76118WS008100?
BELDEN
