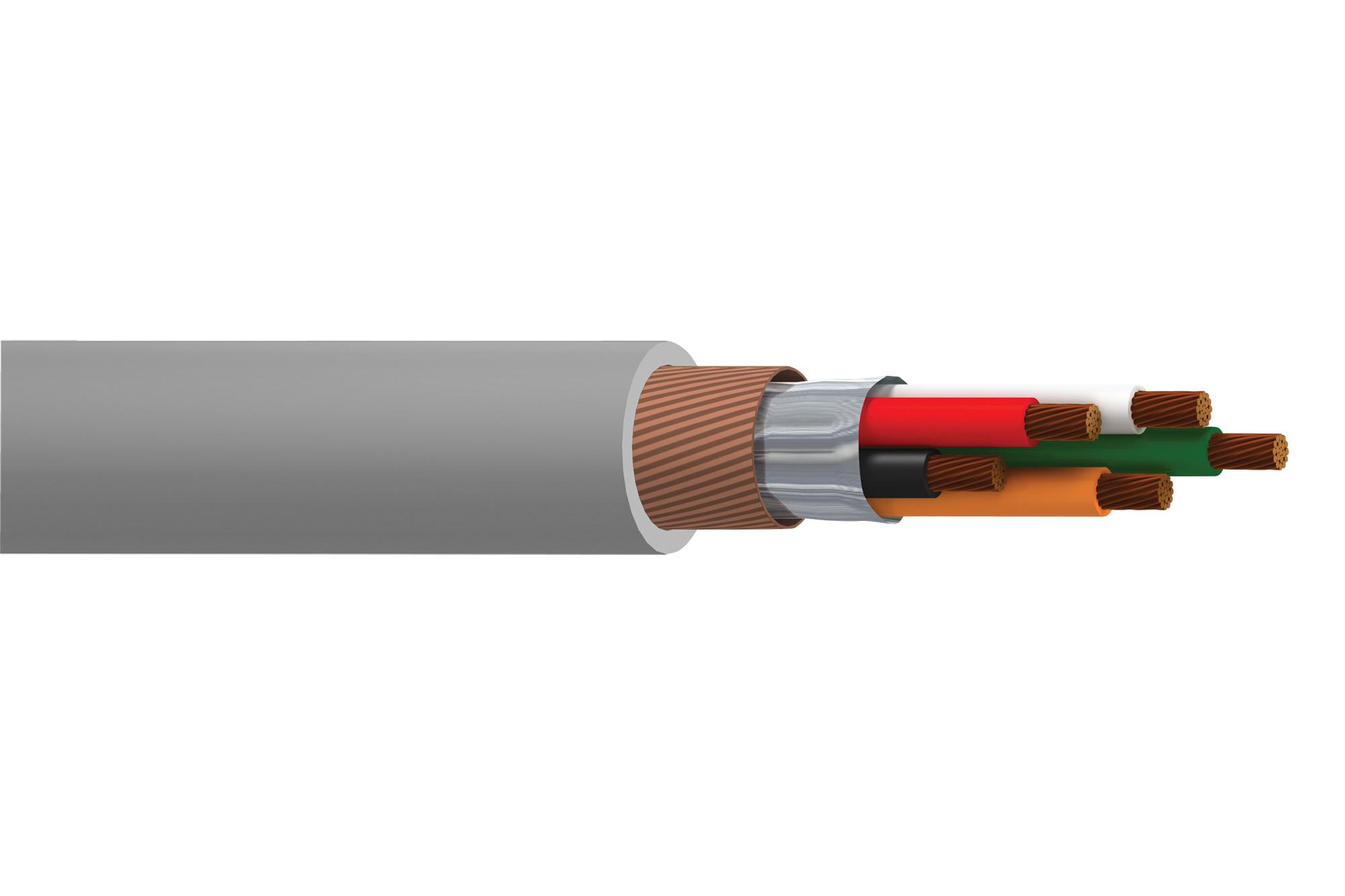

BELDEN 76204WS008100 Multiconductor Data Cable
The MachFlex 76000WS Series Multiconductor Data Cable is engineered for industrial environments demanding high flexibility and space efficiency. Featuring a PVC insulation with black, red, white, and green color coding, it includes 24 AWG stranded tinned copper conductors, an aluminum/polyester foil shield, and a spiral copper shield with 90% coverage for excellent EM shielding. Its oil-resistant PVC jacket withstands static and dynamic conditions, supporting up to 6 million flex cycles, rated for 300V, with temperature limits from -10°C to 105°C. This cable suits automation, factory control, and process automation applications needing durability and reliable shielding.
BELDEN 76204WS008100 Multiconductor Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Insulation Color Code: Black, Red, White, Green
- Outer Shield: Aluminum/Polyester Foil, Copper Spiral Shield with 90% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Nominal Diameter: 5.359 mm
- Bulk Cable Weight: 44,646 Kg/Km
- Max. Recommended Pulling Tension: 76.954 N
- Min. Bond Radius/Installation: 43.180 mm
- Flex Cycle Rating: 6 Million Flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards & Environmental Programs: NEC UL cM, CEC UL MG, RoHS II, Mil Order #39 (China RoHS), RoHS2, REACH, Proposition 65
- Flame Test: CSA FT4
- Suitable for Burial: Yes
- Nominal Capacitance Conductor to Conductor: (External datasheet needed)
- Nom. Inductance: (External datasheet needed)
- Nom. Conductor DC Resistance: (External datasheet needed)
- Nominal Outer Shield DC Resistance: (External datasheet needed)
- Max. Operating Voltage: 300V
Buy the Belden Series 76000WS Foil Spiral Shielded Data Cable: 76204WS008100
Purchase the Belden Series 76000WS Multiconductor Data Cable online today for long-lasting performance in industrial automation. Designed for continuous flexing with a 6 million cycle rating, this cable features high-quality foil and spiral shielding for exceptional EMI protection. Its oil-resistant PVC jacket suits static and dynamic environments, supporting reliable data transmission in factory automation, process control, and industrial settings. Order now to ensure your projects benefit from top durability, flexibility, and shielding efficiency.
Order your Belden Series 76000WS foil/spiral shielded data cable today and ensure reliable, flexible data transmission in industrial automation and control projects.
Frequently Asked Questions
Where can I buy BELDEN 76204WS008100?
You can click on the BUY or RFQ button to purchase 76204WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76204WS008100?
You can download the 76204WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76204WS008100?
BELDEN
