BELDEN 76212WS008100 Flexible Data Conductor Cable
The 76212WS multi-conductor cable is designed for data applications requiring maximum flexibility and durability, with 300V foil and spiral shielding for optimal signal integrity. It features 24 AWG stranded tinned copper conductors with PVC insulation, an aluminum/polyester foil shield, and a tinned copper spiral shield with 90% coverage. Its oil-resistant PVC jacket ensures excellent environmental resistance. Rated for up to 6 million flex cycles, it supports robust continuous flexing. Suitable for burial and data communication, meeting UL, CSA, and RoHS standards, it offers reliable performance in demanding settings.
BELDEN 76212WS008100 Flexible Data Conductor Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester Foil, 90% coverage
- Shield Material: Tinned copper spiral
- Outer Jacket: Oil-resistant PVC
- Overall Diameter: 8.306 mm
- Bulk Cable Weight: 89.292 kg/km
- Max Recommended Pulling Tension: 200.169 N
- Min Bend Radius: 66.040 mm
- Flame Test: CSA FT4
- Suitability: Burial approved
- Operating Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Standards & Compliance: UL, CSA, RoHS, REACH, California Prop 65
- Flex Life: Up to 6 million flex cycles

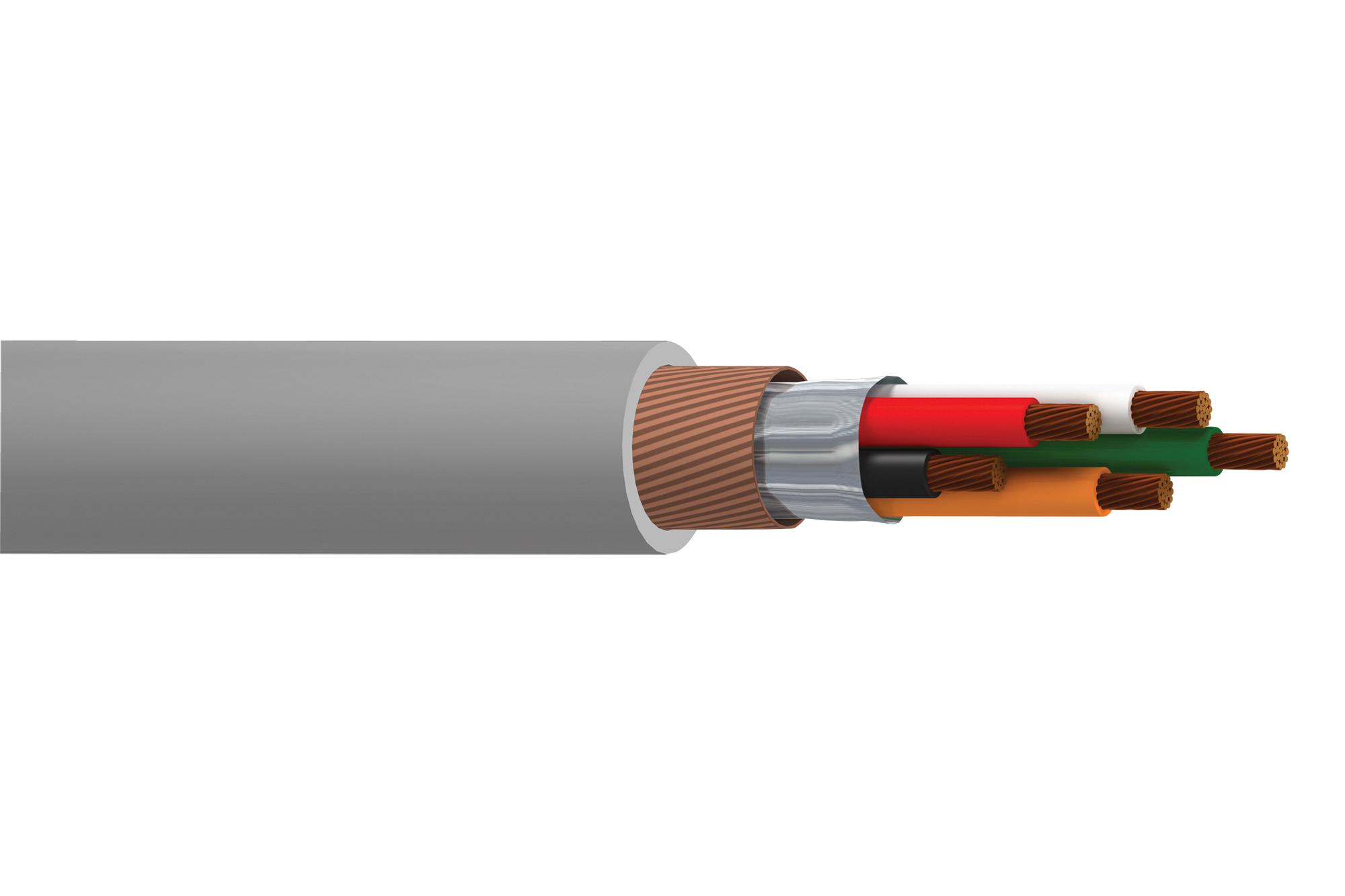

Buy the Buy Belden 76212WS Multi-Conductor Part Number 76212WS008100 Online
Purchase the Belden Flexible Data Conductor Cable online today to achieve superior signal integrity with foil and spiral shielding. Its excellent flexibility supports up to 6 million flex cycles, making it ideal for continuous flexing environments. The cable's PVC insulation and oil-resistant jacket ensure durability and environmental resistance. Suitable for burial and data communication, it adheres to UL, CSA, and RoHS standards. Order now and benefit from fast delivery, guaranteed quality, and optimal performance for your critical projects.
Order your Belden Series76212WS 300V Foil/Spiral Shield Multi-Conductor cable today and ensure reliable, flexible data transmission for demanding applications.
Frequently Asked Questions
Where can I buy BELDEN 76212WS008100?
You can click on the BUY or RFQ button to purchase 76212WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76212WS008100?
You can download the 76212WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76212WS008100?
BELDEN
