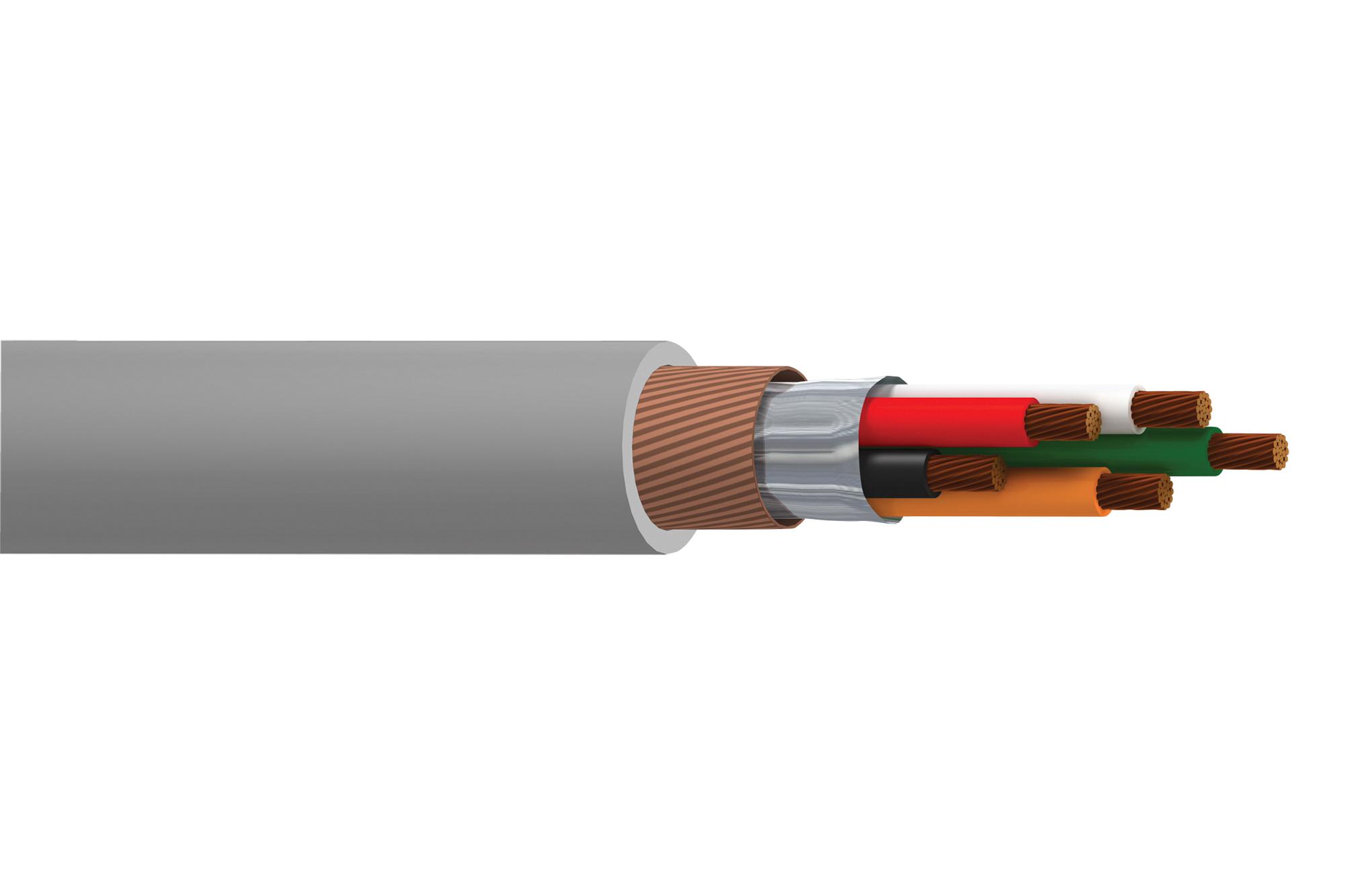

BELDEN 76225WS0081000 Flexible Data Cable
The 76225WS multi-conductor cable is designed for data transmission applications with a 300V rating. It features 24 AWG stranded tinned copper conductors, PVC insulation, and a high-coverage aluminum/polyester foil shield along with a spiral copper shield for enhanced EMI protection. With a flexible, oil-resistant PVC jacket, this cable withstands continuous flexing up to 6 million cycles, making it ideal for dynamic environments. It complies with UL, RoHS, and CSA standards, is suitable for burial, and offers reliable electrical performance with low capacitance and inductance, ensuring long-lasting data integrity and durability in industrial settings.
BELDEN 76225WS0081000 Flexible Data Cable Specifications:
- Conductor Material: Tinned Copper
- AWG: 24
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester Foil, Spiral Copper Shield
- Shield Coverage: 90%
- Outer Jacket Material: Oil-resistant PVC
- Jacket Thickness: Not specified
- Overall Diameter: 10.058 mm
- Bulk Weight: 144.355 KglKm
- Max. Pulling Tension: 382.545 N
- Min. Bend Radius: 81.280 mm
- Flex Cycle Rating: 6 Million
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Applicable Standards: UL FT4 Flame Test, RoHS, CSA AWM
- Suitable for Burial: Yes
- Nominal Inductance: 0.623 μH
- Nominal Capacitance: Not specified
- Nominal DC Resistance: Not specified
- Max. Operating Voltage: 300V
Buy the Buy Belden 76225WS Data Cable Part Number 76225WS0081000 Online
Purchase the Belden 76225WS flexible data cable online today for optimal performance in data and automation applications. Featuring 24 AWG tinned copper conductors and high-coverage foil and spiral shields, it guarantees excellent EMI protection and flexibility with 6 million flex cycles. Suitable for burial and dynamic environments, this oil-resistant PVC jacket cable ensures durability and reliable electrical properties at a maximum of 300V. Efficient, durable, and compliant with industry standards, it’s the ideal choice for industrial data transmission needs.
Get Belden 76225WS today—designed for reliable data transmission, continuous flexing, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 76225WS0081000?
You can click on the BUY or RFQ button to purchase 76225WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76225WS0081000?
You can download the 76225WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76225WS0081000?
BELDEN
