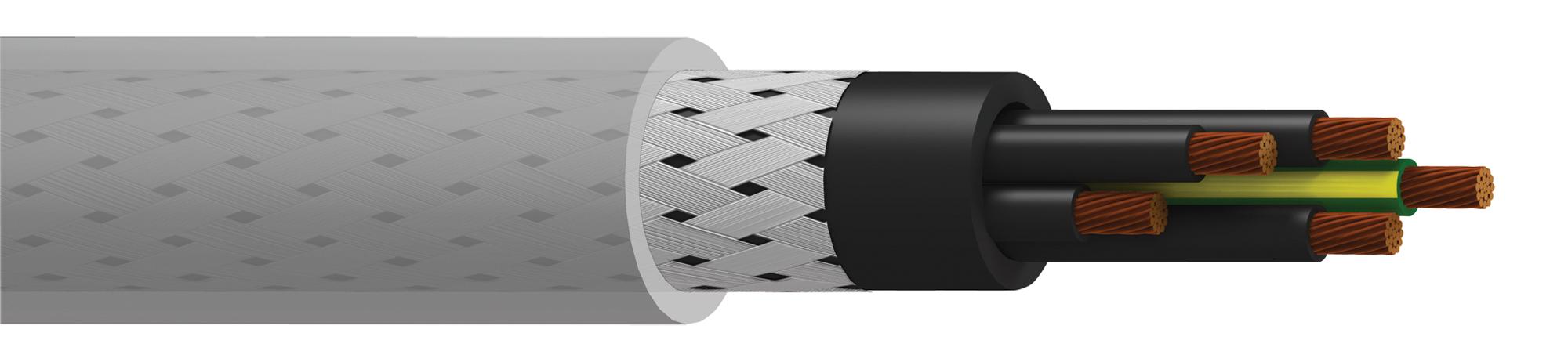

BELDEN 77004WS010100 Multi-Conductor Shielded Cable
The Belden 77004WS is a robust multi-conductor shielded cable engineered for applications requiring continuous flexing and high reliability. Constructed with 20 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC inner jacket, this cable provides excellent signal transmission and protection against environmental factors. The tinned copper braid shield offers 85% coverage, minimizing interference and ensuring signal integrity. Its flexible design and durable construction make it suitable for use in industrial automation, robotics, and other applications where frequent bending and movement are required. The cable is rated for 600V and operates effectively within a temperature range of -5°C to +90°C, making it versatile for various operating conditions.
BELDEN 77004WS010100 Multi-Conductor Shielded Cable Specifications:
- Overall Nominal Diameter: 9.525 mm
- Conductor AWG: 20
- Number of Conductors: 4
- Conductor Material: BC - Bare Copper
- Conductor Stranding: 63x38
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Insulation Diameter (mm): 2.134
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Wall Thickness (mm): 0.635
- Inner Jacket Diameter (mm): 7.036
- Outer Shield Material: TC - Tinned Copper
- Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Wall Thickness (mm): 0.889
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight: 245.553 Kg/Km
- Max Recommended Pulling Tension: 182.376 N
- Min Bend Radius/Minor Axis: 48.260 mm
- Min Bend/Installation: 48.260 mm
- Min Bend Radius (Continuous Flexing): 48.260 mm
- Flex Cycle Rating: 14 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nom Inductance (µH/m): 0.656
- Nom Capacitance Cond to Other Cond & Ground (pF/m): 131.240
- Nom Capacitance Ground (pF/m): 236.232
- Nom Conductor DC Resistance (Ohm/km): 35.107
