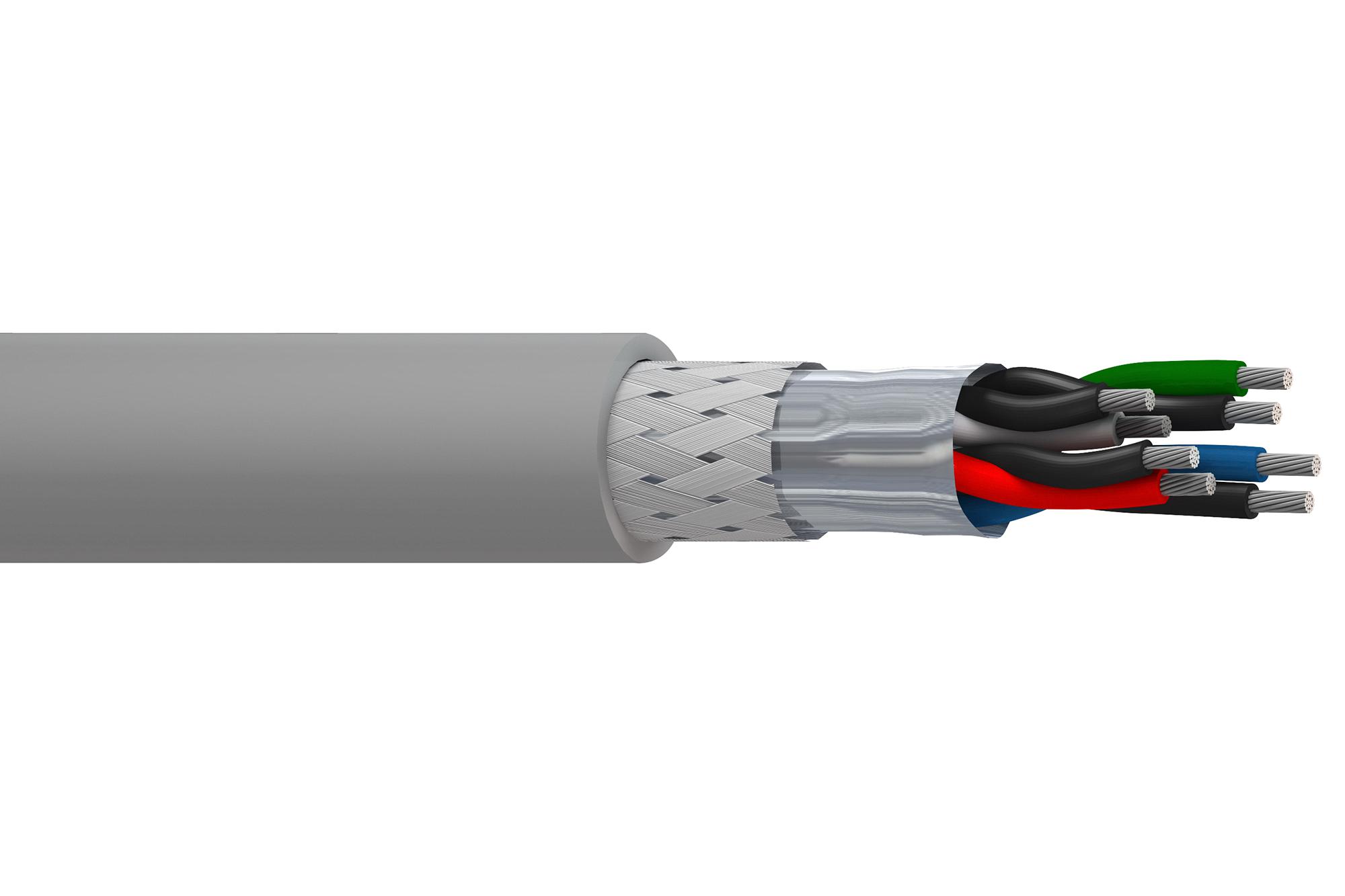

BELDEN 76403TS008100 Shielded Data Cable
The 76403TS Mul is a high-performance, shielded, flexible data cable designed for demanding applications requiring durability and reliability. Comprising 28 AWG stranded tinned copper conductors with PVC insulation, it features aluminum/polyester foil and tinned copper braid shields with 85% coverage for optimal electromagnetic interference (EMI) shielding. Suitable for continuous flexing, it offers a maximum flex cycle of 6 million cycles, making it ideal for dynamic environments. The cable's overall construction includes oil-resistant PVC jacket, lightweight design, and flexible installation features, ensuring long-term durability and performance in electronic and data transfer systems.
BELDEN 76403TS008100 Shielded Data Cable Specifications:
- Conductor: 28 AWG stranded (7x36) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil, tinned copper braid with 85% coverage
- Outer Shield Material: Foil and braid
- Outer Shield Drain Wire: 20 AWG tinned copper
- Outer Jacket Material: Oil-resistant PVC
- Overall Cable Weight: 50.599 kg/km
- Maximum Pulling Tension: 64.054 N
- Minimum Bend Radius: 60.960 mm static, 91.440 mm continuous flexing
- Flex Cycle Rating: 6 million
- Applicable Standards: UL Style 20006, CSA 600 V, EU RoHS compliant
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Impedance: Nominal unspecified
- Capacitance: Cond. to other cond. & ground 124.678 pF/m
- Conductor DC Resistance: Unspecified, externally found to be low
- Shield DC Resistance: Unspecified
- Compliance: UL, CSA, RoHS, EU Low Voltage Directive
Buy the Buy Belden Data Cable Part Number 76403TS Online
Purchase the Belden 76403TS flexible shielded data cable online today to benefit from superior shielding, durability, and flexibility. Designed for demanding data transfer and electronic projects, this cable offers 28 AWG tinned copper conductors with advanced shielding for minimal EMI. Its oil-resistant PVC jacket provides excellent environmental resistance, while the flexible design allows for easy installation. With a maximum flex cycle of 6 million, it is perfect for dynamic environments requiring long-term durability and high performance. Order now for fast shipping and reliable connectivity.
Order your Belden 76403TS shielded flexible data cable today and ensure reliable high-speed connectivity for your critical data applications.
