BELDEN 76502TS008100 Shielded Data Cable

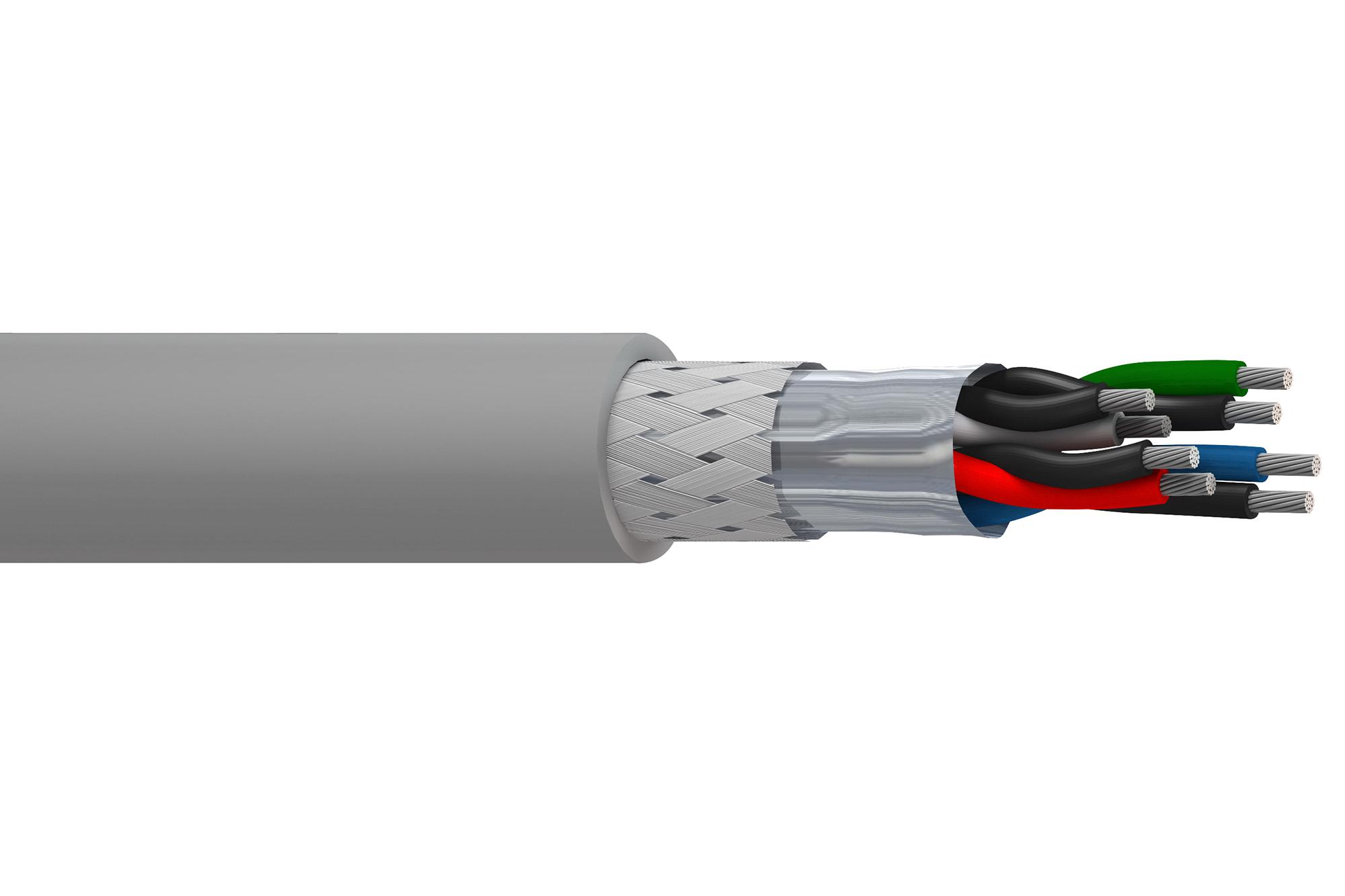

The MachFlex 76000TS Series Multipair Foil/Braid Shielded Data Cable is designed for flexible motion and space-constrained industrial environments. It supports continuous flexing up to 6 million cycles, featuring 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, aluminum/polyester foil shield, and tinned copper braid shield with 85% coverage. Its oil-resistant PVC jacket ensures durability, and it operates within -10°C to 105°C static temperature range and +5°C to 105°C dynamic. With a voltage rating of 300V, it’s ideal for industrial automation, factory automation, and process control, offering high shielding effectiveness, flexibility, and long lifespan.
BELDEN 76502TS008100 Shielded Data Cable Specifications:
- Conductor Material: Tinned copper, 26 AWG stranded (7x34)
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Shield: Aluminum/polyester foil shield and tinned copper braid shield with 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Nominal Diameter: 6.198 mm
- Mechanical Characteristics: Bulk weight 55.063 kg/km, Max. Pulling Tension 68.947 N, Min. Bend Radius 60.960 mm
- Flex Cycle Rating: Up to 6 million flexes
- Applicable Standards & Compliance: UL AWM 20006, CSA 600V, EU RoHS 2011/65/EU, Flame test CSA FIs
- Electrical Characteristics: Nominal Impedance, 61.041Ω, Nominal Capacitance between conductors, 61.041 pF/ft, Ground capacitance, 144.364 pF/ft, Conductor DC Resistance, 137.802Ω per km
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Voltage Rating: 300V
- Color Coding: Black-Red, Black-White
- Length varies with application, typical insulation thickness 0.254 mm, overall shield coverage 85%
