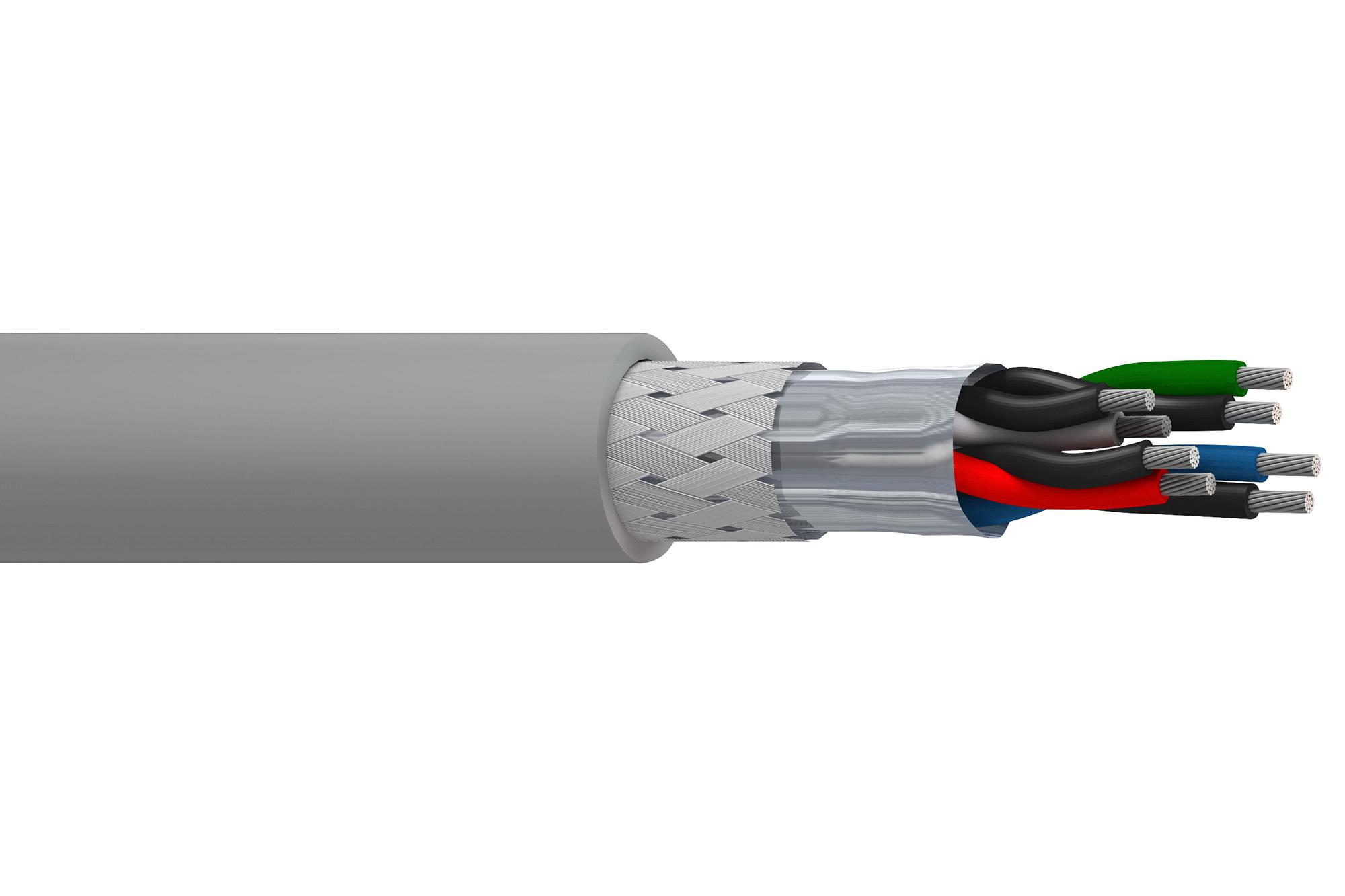

BELDEN 76510TS0081000 Shielded Data Cable
The 76510TS multi-conductor cable is a shielded, flexible data cable rated for 300V, suitable for continuous flexing applications with up to 6 million flex cycles. It features 26 AWG stranded, tinned copper conductors with PVC insulation, an aluminum/polyester foil shield, and a tinned copper braid shield with 85% coverage. The oil-resistant overall PVC jacket enhances durability. Ideal for data transmission in industrial settings, this cable complies with UL, CSA, and EU standards, offering excellent mechanical flexibility, sunlight resistance, and high electrical performance within a temperature range of -10°C to 105°C.
BELDEN 76510TS0081000 Shielded Data Cable Specifications:
- Conductor Size: 26 AWG stranded (7x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil, 100% coverage
- Outer Shield Material: Aluminum/Mylar
- Outer Jacket: Oil-resistant PVC
- Overall Cable Weight: 81 lbs/1000 ft
- Maximum Recommended Pulling Tension: 55 lbs
- Minimum Bend Radius: 3.9 in (static), 5.9 in (continuous flexing)
- Flex Cycle Rating: 6 million cycles
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Applicable Standards: UL Style 20006, CSA 600 V, RoHS II, EU Low Voltage Directive 2014/35/EC
- Flame Test: CSA FT4
- Electrical Characteristics: Nominal Impedance, Inductance, Capacitance, and Resistance specifications align with industry standards, ensuring reliable signal integrity and durability.
Buy the Buy Belden 76510TS Multi-Conductor Shielded Data Cable Part Number 76510TS0081000 Online
Discover the reliable and flexible shielded data cable designed for continuous flexing with up to 6 million cycles. Featuring 26 AWG stranded tinned copper conductors, PVC insulation, aluminum/polyester foil shield, and copper braid shield with 85% coverage, this cable ensures optimal data integrity and durability. Its oil-resistant PVC jacket makes it suitable for various industrial applications, while compliance with UL, CSA, and EU standards guarantees safety and quality. Perfect for demanding environments, order online today to enhance your data transmission solutions.
Buy Belden 76510TS cable now and experience unmatched flexibility, durability, and high-performance data transmission in demanding industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 76510TS0081000?
You can click on the BUY or RFQ button to purchase 76510TS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76510TS0081000?
You can download the 76510TS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76510TS0081000?
BELDEN
