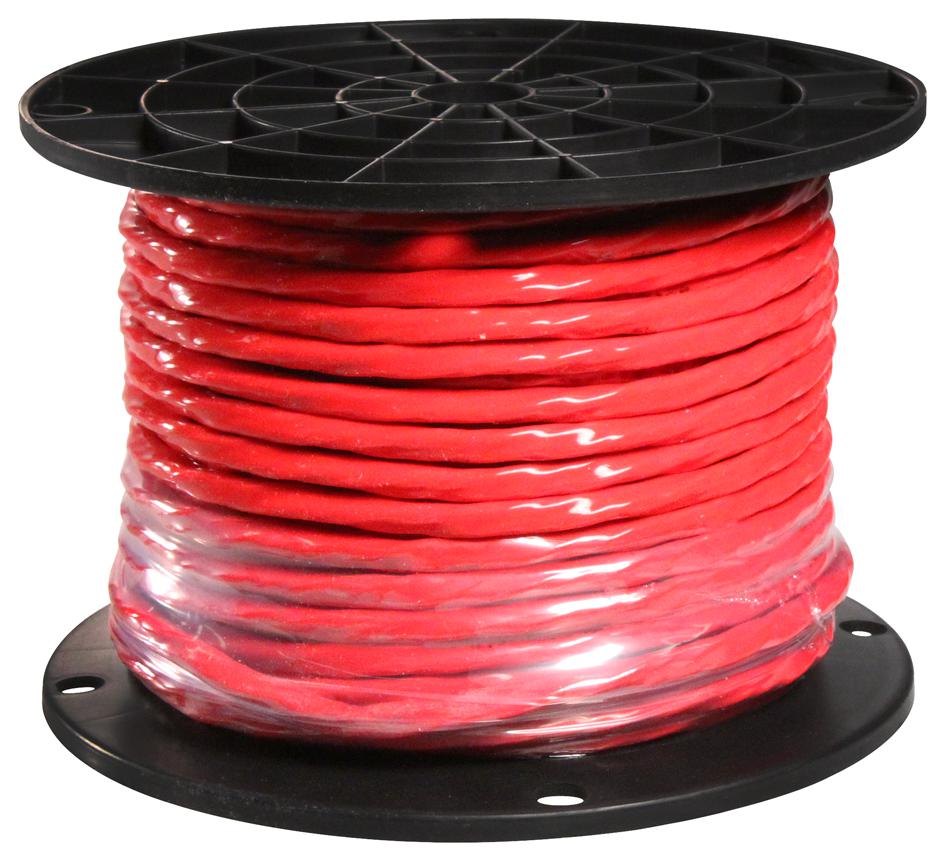

BELDEN 88777002100 Multi-Conductor Shielded Cable
This 100-foot, shielded multicore cable designed for low-voltage analog signals features 22 AWG stranded (7x30) tinned copper conductors with FEP insulation. It includes an aluminum Beldfoil® shield with 100% coverage and a durable red PTFE FEP jacket suitable for plenum environments. Flame tested to NFPA 262, it offers excellent shielding and high-temperature performance, making it ideal for connecting controllers, sensors, relays, and actuators in industrial and commercial applications. The cable ensures reliable signal integrity with impedance around 50 ohms and low capacitance for precise data transmission.
BELDEN 88777002100 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 22
- Number of Conductors: 6
- Insulation Material: FEP - Fluorinated Ethylene Propylene
- Inner Shield Material: Aluminum Foil with Polyester Tape
- Inner Shield Coverage: 100%
- Inner Shield Drain Wire Stranding: 16x34
- Outer Jacket Material: Teflon® FEP
- Outer Jacket Thickness: 0.014 inch
- Overall Diameter: 0.234 inch
- Operating Temperature Range: -10°C to +200°C
- Bulk Cable Weight: 37 lbs per 1000 ft
- Maximum Pulling Tension: 82 lbs
- Minimal Bend Radius: 2.5 inches
- Impedance: Approx. 50 ohms
- Capacitance: Conductor to Conductor: 31 pF/ft, Conductor to Shield: 67 pF/ft
- Maximum DC Resistance: 16 ohms per 100 meters
- Flame Test: NFPA 262, CSA FT6
- Plenum Rating: Yes
- Applicable Standards: UL CMP, RoHS Compliant, CE Marked, UL Flame Test Certified
Buy the Belden Series 88777 Multi-Conductor CMP Cable: 88777002100
Purchase the reliable Belden Series 88777 multicore shielded cable online today. Crafted with 22 AWG stranded conductors, FEP insulation, and aluminum foil shielding, it ensures superior signal integrity and safety in plenum-rated environments. The durable Teflon FEP jacket provides high temperature tolerance, flame resistance, and excellent flexibility. Perfect for industrial control, sensor connections, and communication systems, this cable guarantees high performance with low capacitance and impedance. Secure your order now for accurate data transmission in demanding conditions, backed by quality and compliance standards.
Order your Belden Series 88777 CMP Plenum Rated Cable today and ensure reliable, high-performance signal transmission in your industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 88777002100?
You can click on the BUY or RFQ button to purchase 88777002100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 88777002100?
You can download the 88777002100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 88777002100?
BELDEN
