BELDEN 76514TS0081000 Data Flex Cable

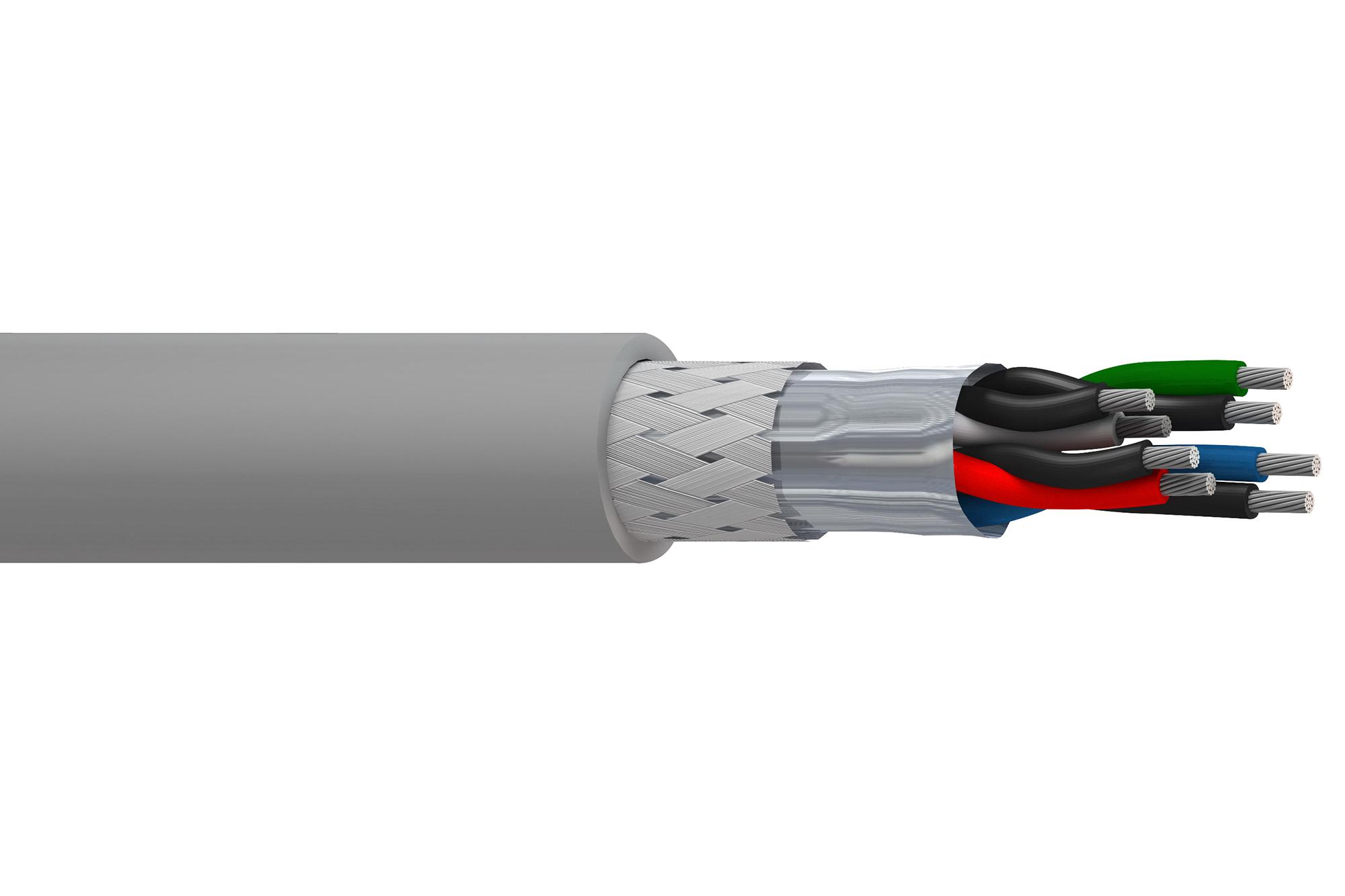

The 76514TS multi-conductor cable is designed for 300V shielded data applications with continuous flexing capability. Made with 26 AWG stranded tinned copper conductors, it features PVC insulation, an aluminum/polyester foil shield, tinned copper braid shield with 85% coverage, and an oil-resistant PVC jacket. Its robust construction supports up to 6 million flex cycles, making it ideal for demanding electronic and automation systems requiring reliable signal transmission and flexibility. Compliant with UL, CSA, and RoHS standards, this versatile cable ensures durability and performance in industrial environments.
BELDEN 76514TS0081000 Data Flex Cable Specifications:
- Conductor: 26 AWG stranded (7x34) tinned copper
- Insulation Material: PVC
- Insulation Thickness: 0.010 inches
- Outer Shield: Aluminum/polyester foil and tinned copper braid with 85% coverage
- Outer Jacket: Oil-resistant PVC
- Bulk Cable Weight: 102 lbs per 1000 ft
- Maximum Recommended Pulling Tension: 72 lbs
- Minimum Bend Radius: 4.3 inches (general), 6.4 inches (continuous flexing)
- Flex Life: Up to 6 million flex cycles
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Applicable Standards: UL Style 20006, CSA 600 V, RoHS compliant
- Mechanical: UL flame test FT4, sunlight resistant, rugged construction
- Electrical: Nominal impedance not specified, but designed for signal integrity in data applications
- Weight: 102 lbs per 1000 ft
Buy the Belden Series Data Flex Cable: 76514TS
Buy the Belden Data Flex Cable 76514TS online today to guarantee high-quality, flexible data transmission in industrial and electronic applications. Designed for 300V shielded use, this cable features robust construction with tinned copper conductors, two-layer shielding, and a durable oil-resistant PVC jacket. Its flexibility supports up to 6 million flex cycles, making it ideal for automation, control systems, and signal transmission where durability and reliability are paramount. Purchase now for fast delivery and expert support.
Order your Belden Series Data Flex Cable 76514TS today and ensure reliable, flexible data transmission with industry-standard performance in demanding environments.
