BELDEN 76602TS008100 Flexible Data Cable
The Belden 76602TS shielded, flexible data cable is designed for reliable, continuous flexing data applications with a 300V rating. Featuring 24 AWG stranded tinned copper conductors, it has an oil-resistant PVC jacket, aluminum/polyester foil shield, and tinned copper braid shield with 85% coverage. This cable withstands up to 6 million flex cycles, making it ideal for dynamic environments requiring durability and flexibility. It is suitable for industrial data systems, control wiring, and automation setups needing high-performance, shielded data transmission with excellent mechanical and electrical characteristics.
BELDEN 76602TS008100 Flexible Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Total Conductors: 4
- Insulation Material: PVC
- Insulation Thickness: 0.010 in
- Outer Shield: Aluminum/polyester foil, 100% coverage
- Shield Material: Tinned copper braid, 85% coverage
- Outer Jacket Material: PVC
- Outer Jacket Diameter: 0.260 in
- Bulk Cable Weight: 42 lbs/1000 ft
- Maximum Pulling Tension: 19,300 lbs
- Minimum Bend Radius: 2.600 in (installation), 3.900 in (flexing)
- Flex Cycle Life: Up to 6 million flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards: UL Style 20006, CSA 600 V, EU RoHS compliant
- Overall Nominal Diameter: 0.260 in
- Color Coding: Black-Red, Black-White
- Impedance: Nominal 100 ohms
- Capacitance: 56 pF/ft
- Certifications: UL, CSA, EU Low Voltage Directive
- Flammability: Fire Test CSA Flame Test FIs

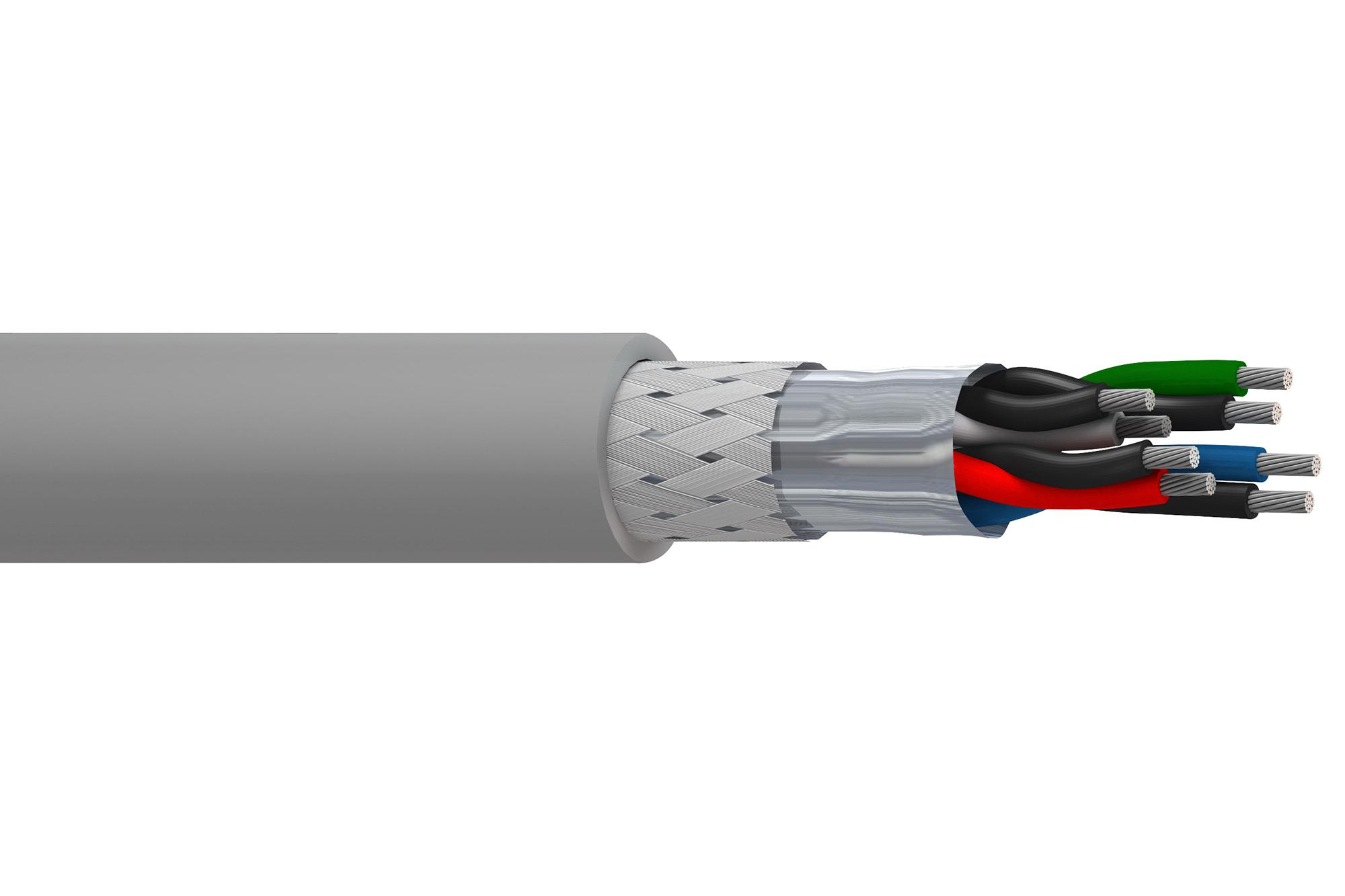

Buy the Belden Series 76602TS Shielded Data Cable: 76602TS
Order the Belden 76602TS flexible shielded data cable online today to ensure your industrial, automation, or control systems benefit from superior shielding, durability, and high flex life. With its 24 AWG tinned copper conductors, oil-resistant PVC jacket, aluminum/polyester foil shield, and copper braid shield with 85% coverage, this cable provides excellent EMI protection and mechanical resilience. Rated for 300V and up to 6 million flex cycles, it’s ideal for dynamic environments requiring reliable, long-lasting data transmission. Buy now for quick shipment and technical support.
Buy Belden 76602TS now and experience unmatched reliability and high-flex durability for demanding data transmission applications.
Frequently Asked Questions
Where can I buy BELDEN 76602TS008100?
You can click on the BUY or RFQ button to purchase 76602TS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76602TS008100?
You can download the 76602TS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76602TS008100?
BELDEN
