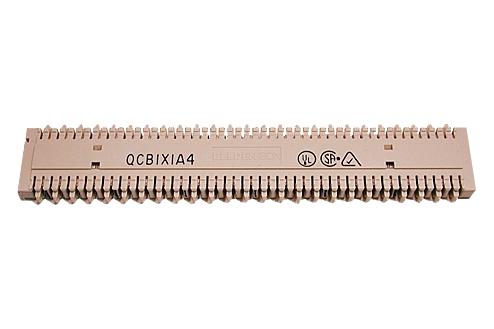

BELDEN A0266828 25-Pair BIX Connector
The BELDEN A0266828 is a high-performance 25-pair BIX connector suitable for a variety of data transmission applications, including IBDN systems and 100BASE-T networks. Constructed with nickel-plated copper alloy for the front and rear connections and a robust UL94V-0 plastic housing, this connector provides excellent signal integrity and durability. It is ETL verified to Category 5e standards, ensuring reliable data transfer. The connector is designed for gas-tight IDC connections and is compatible with the BIX Connecting Tool (A0270165). Its compact footprint and ease of installation make it an ideal choice for network infrastructure projects.
BELDEN A0266828 25-Pair BIX Connector Specifications:
- Suitable Applications: IBDN System 1200, ISO Class E, 100BASE-T
- Packaging: packaged in carton; Standard pack of 20 units
- Weight: 0.11 g
- Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute
- Current Rating: 1.5 A
- Insulation Resistance: 100 MOhm*km
- Max Contact Resistance: 1 mOhm
- Installation Temp Range: -10°C to +60°C
- Storage Temp Range: -40°C to +70°C
- Operating Temp Range: -10°C to +60°C
- Footprint/Type: BIX
- Tool Compatibility: BIX Connecting Tool (A0270165)
- Termination Interface: Gas Tight IDC Connection
- Durabilities: 200 terminations
- TIA/EIA Compliance: ANSI/TIA/EIA 568 C.2 Category 5e
- Third Party Performance Verification: ETL - Verified Category 5e
- Environmental Space: Indoor
- EU Directive Compliance: EU Directive 2002/95/EC (RoHS)
- EU RoHS Compliance Date: 2006-07-01
- Suitability - Indoor: Yes
- Safety Listing: ACA, UL 1863 and CSA-C22.2
- Related Parts: Compatible with BIX patch cord, BIX Cross Connect System
- Revision Number: 0.75
- Revision Date: 01-31-2020
