BELDEN 76614TS008100 Flexible Data Cable
The 76614TS Multi-Conductor Shielded Cable is designed for data applications that require continuous flexing and high durability. Featuring 24 AWG stranded tinned copper conductors with PVC insulation, it offers excellent flexibility with a flex life of up to 6 million cycles. The cable includes a foil aluminum/polyester shield and a tinned copper braid shield with 85% coverage, providing superior electromagnetic interference protection. Its oil-resistant PVC jacket ensures reliability in challenging environments, making it ideal for industrial automation, data transmission, and control systems requiring high performance and long-lasting durability.
BELDEN 76614TS008100 Flexible Data Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor AWG: 24
- Insulation Material: PVC
- Outer Shield Material: Aluminum/Mylar foil
- Shield Coverage: 85%
- Shield Material: Tinned Copper Braid
- Jacket Material: PVC, Oil-Resistant
- Overall Diameter: 11.760 mm
- Weight: 183.049 Kg/km
- Max Pulling Tension: 495.028 N
- Flex Life: 6 Million flex cycles
- Temperature Range: -10 to 105°C (static), +5 to 105°C (dynamic)
- Nominal Capacitance: 75.791 pF/ft (mutual), 137.802 pF/ft (ground)
- Characteristic Impedance: Not specified
- Meets UL Style 20006, CSA 600 V, RoHS compliant, FT4 flame test
- Suitable for outdoor sunlight exposure
- Min. Bend Radius: 116.840 mm (static), 175.260 mm (flexing)

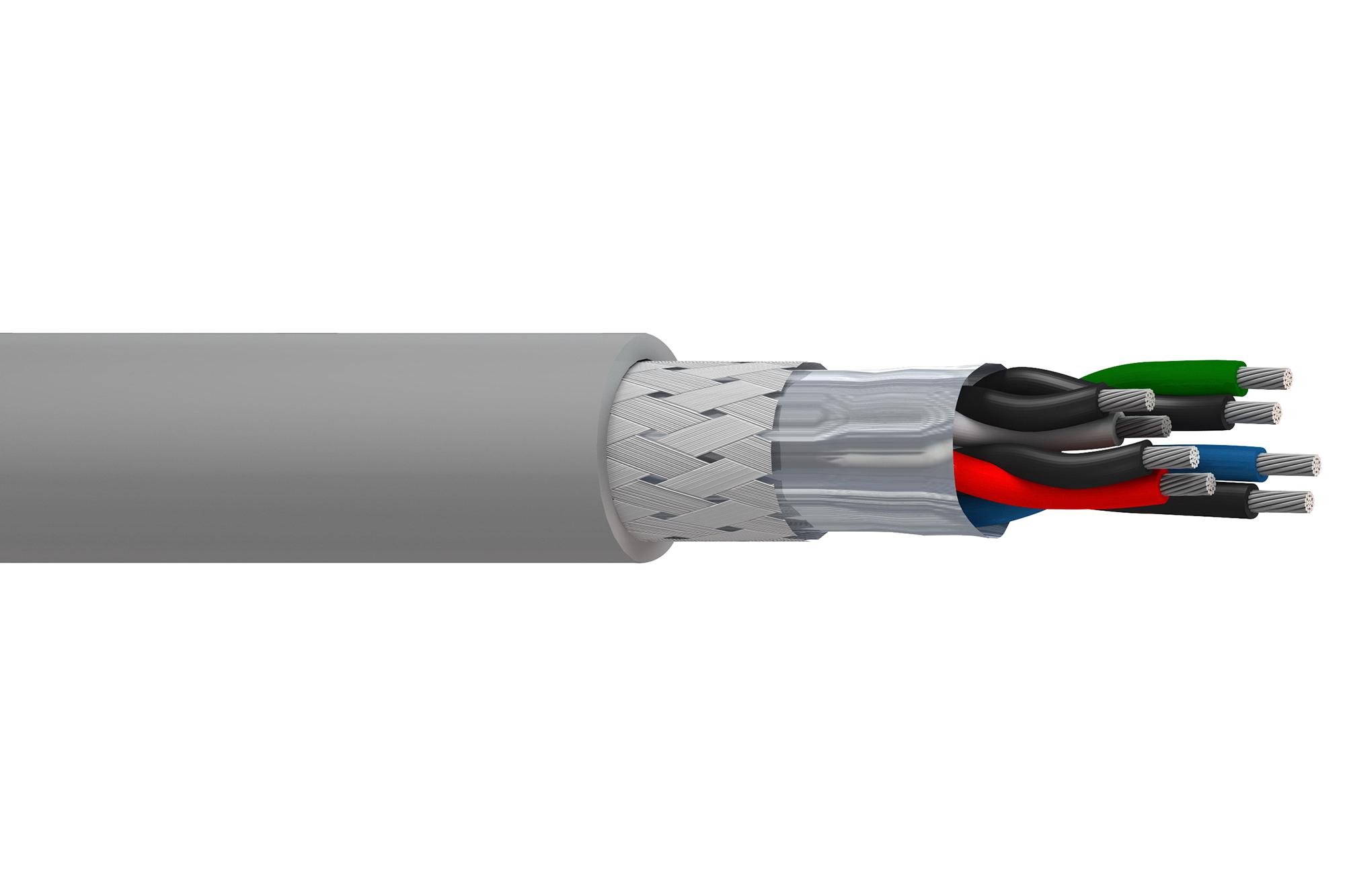

Buy the Belden 76614TS – Reliable Data Cable for Industrial Applications
Discover the high-performance flexible data cable designed for demanding industrial applications. The 76614TS offers superior shielding with aluminum/mylar foil and tinned copper braid, ensuring excellent EMI protection. Its durable PVC insulation and oil-resistant jacket make it suitable for harsh environments. With a high flex life of 6 million cycles, it is ideal for continuous flexing in automated systems and control panels. Purchase online now to ensure reliable connectivity and long-lasting performance in your industrial setup.
Get Belden 76614TS today—built for flexible data transmission in demanding industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 76614TS008100?
You can click on the BUY or RFQ button to purchase 76614TS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76614TS008100?
You can download the 76614TS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76614TS008100?
BELDEN
