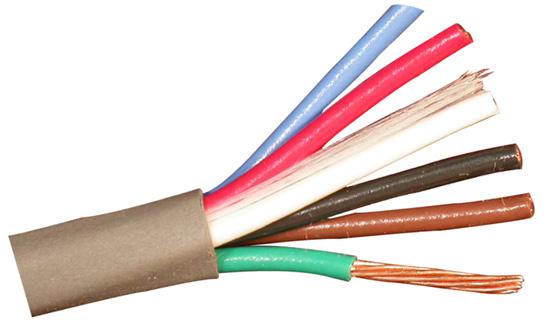

BELDEN 83606002100 multi-conductor shielded cable
The 83606 002100 is a 30.48-meter, six-core shielded cable designed for use in audio, control, and instrumentation applications. It features stranded tinned copper conductors, FEP insulation, and an overall Beldfoil® shield with 100% coverage, supplemented by an 85% coverage tinned copper braid shield. The cable has an FEP jacket for durability and flexibility, rated for a maximum pulling tension of 556.025N, and operates within a temperature range of -70°C to 200°C. Ideal for industrial, audio, and instrumentation setups requiring high performance and shielded protection.
BELDEN 83606002100 multi-conductor shielded cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Count: Six cores
- Conductor Size: 20 AWG
- Insulation Material: FEP (Fluorinated Ethylene Propylene)
- Shielding: Beldfoil® with 100% coverage, Tinned Copper Braid with 85% coverage
- Outer Jacket Material: FEP
- Overall Diameter: 0.207 inches
- Operating Temperature Range: -70°C to +200°C
- Maximum Pulling Tension: 556.025N (125 lbs)
- Weight: 43 lbs per 1000 ft
- Applicable Standards: UL Flame Test NFPA 262, CSA FT6
- Suitable for Indoor and Outdoor use
- Plenum Rated: Yes
- Maximum Voltage: 600V
- Conductor Resistance: Specific resistance values not provided
- Capacitance: Not specified
Buy the Buy Belden Cable Part Number 83606002100 Online
Order the Belden 83606002100 online today to ensure high-quality audio, control, and instrumentation connections. This shielded cable features six tinned copper conductors, FEP insulation, and an overall Beldfoil® shield with 100% coverage plus a Tinned Copper braid shield with 85% coverage, providing excellent EMI protection. The durable FEP outer jacket offers flexibility and resilience, operating seamlessly between -70°C to 200°C. Suitable for harsh environments, indoor and outdoor use, with UL and CSA flame ratings, this cable guarantees superior performance in demanding industrial and electronic applications.
Buy Belden 83606002100 now and experience unmatched reliability and high-temperature performance for your audio, control, and instrumentation needs.
Frequently Asked Questions
Where can I buy BELDEN 83606002100?
You can click on the BUY or RFQ button to purchase 83606002100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 83606002100?
You can download the 83606002100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 83606002100?
BELDEN
