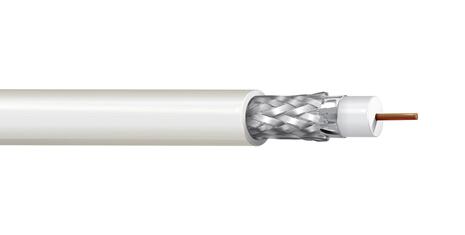

BELDEN 7731ANH02500 RG11/U Coax Cable
The BELDEN 7731ANH.02500 is a premium RG11/U coaxial cable engineered for exceptional performance in HDTV and SDI digital video circuits. Constructed with a solid 14 AWG bare copper conductor and a foamed polyethylene dielectric, this cable delivers low signal loss and excellent impedance control. Its UV-resistant jacket makes it suitable for outdoor installations, while the LSZH (Low Smoke Zero Halogen) construction enhances safety in enclosed spaces. The cable is commonly used in professional video broadcasting, security systems, and other applications requiring high-quality signal transmission.
BELDEN 7731ANH02500 RG11/U Coax Cable Specifications:
- Overall Diameter: 10.2 mm
- Conductor AWG: 14
- Conductor Stranding: Solid
- Dielectric Type: FPE - Foamed Polyethylene
- Outer Shield Material: Aluminum/Polyester/Aluminum
- Outer Jacket Material: LSZH/FRNC
- Min Elongation at Break of Jacket: 125%
- Min Tensile Strength of Jacket: 9 MPa
- Conductor DCR: 8.2 Ohm/km
- Max Shield DCR: 4.9 Ohm/km
- Nominal Capacitance: 53 pF/m
- Capacitance Tolerance: 2 pF/m
- Nominal Characteristic Impedance: 75 Ohm
- Characteristic Impedance Tolerance: 3 Ohm
- Nominal Velocity of Propagation (VP): 84%
- Velocity of Propagation Tolerance: 2%
- Min RL (Return Loss): 23 dB (5 - 850 MHz)
- Installation Temp Range: -5°C To +50°C
- Storage Temp Range: -30°C To +70°C
- Operating Temp Range: -30°C To +70°C
- Max Recommended Pulling Tension: 650 N
- Min Bend Radius: 100 mm
- CPR Euroclass: Cca-s1,d1,a1
- CENELEC Compliance: EN 50117-1
- RG Type: 11/U Type
- EU RoHS Compliance Date: 2005-07-18
- ISO/IEC Flammability: IEC 60332-1-2 and IEC 60332-3-24
- Halogen Content: Zero
