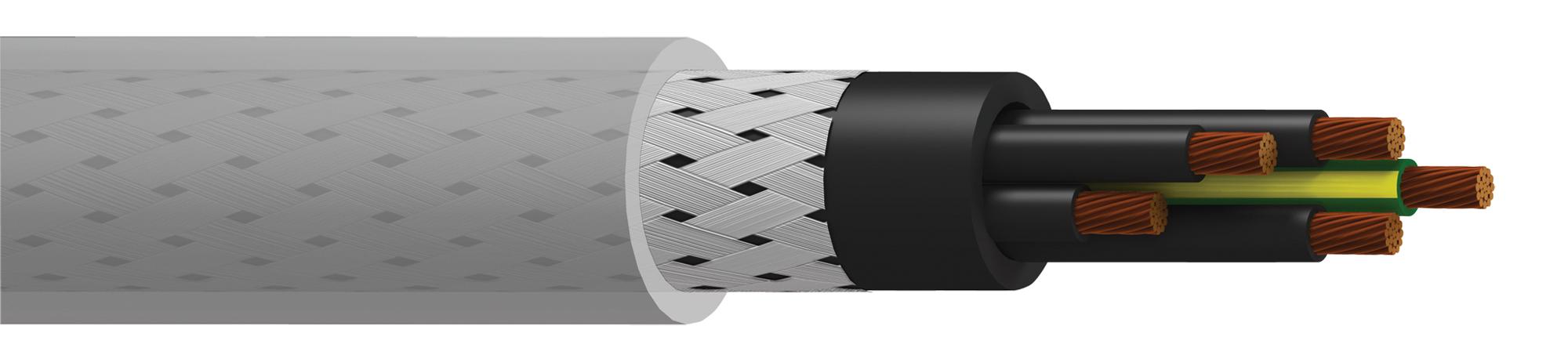

BELDEN 77604WS0101000 Flexible Multi-Conductor Shielded Cable
The Belden 77604WS is a multi-conductor, shielded cable designed for continuous flexing applications with a flex lifetime of up to 14 million cycles. It features 16 AWG stranded bare copper conductors with PVC insulation, an oil-resistant inner jacket, and a tinned copper braid shield with 85% coverage. The outer jacket is made of oil-resistant PVC, ensuring durability in demanding environments. Suitable for applications requiring high flexibility, this cable combines excellent electrical performance, mechanical strength, and environmental resistance, making it ideal for industrial automation, robotics, and heavy machinery wiring.
BELDEN 77604WS0101000 Flexible Multi-Conductor Shielded Cable Specifications:
- Conductor: 16 AWG stranded (168x38) bare copper, PVC insulation, oil-resistant PVC inner jacket
- Total Conductors: 4
- Ground Wire: Yes, 16 AWG, 168x38 strands, bare copper, PVC insulation
- Outer Shield: Tinned copper braid, 85% coverage, oil-resistant PVC outer jacket
- Inner Jacket and Insulation: PVC, color-coded, individually numbered
- Outer Jacket Material: Oil-resistant PVC
- Weight: 398.638 kg/km
- Max Pulling Tension: 413.685 N
- Minimum Bend Radius: 98.98 mm (minor axis), 198.98 mm (continuous flexing)
- Flex Cycle Rating: 14 million flexes
- Storage Temperature Range: -40°C to +90°C
- Installation/Operating Temperature Range: -8°C to +90°C
- Applicable Standards: UL THHN/THWN, UL Style 2587, CSA FT1, VDE 0472, RoHS compliant
- Electrical Characteristics: Capacitance between conductors and ground approximately 167.331 pF/m, resistance details available
- Environmental Compliance: RoHS, REACH, EU Low Voltage Directive, Proposition 65
Buy the Belden Series 77604WS Shielded Cable: 16 AWG Multi-Conductor
Order the Belden 77604WS flexible multi-conductor cable online today for reliable performance in continuous flexing applications. Designed with 16 AWG stranded bare copper conductors, oil-resistant PVC insulation, and a high-coverage tinned copper braid shield, this cable provides excellent mechanical flexibility and environmental resistance. Suitable for automation, robotics, and industrial machinery, it supports up to 14 million flex cycles ensuring long-lasting durability. Easy to install with a minimum bend radius of 98.98 mm, making it ideal for demanding industrial applications requiring high-quality wiring solutions.
Get Belden 77604WS today—built for flexibility, durability, and high-performance industrial wiring in demanding environments.
Frequently Asked Questions
Where can I buy BELDEN 77604WS0101000?
You can click on the BUY or RFQ button to purchase 77604WS0101000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 77604WS0101000?
You can download the 77604WS0101000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 77604WS0101000?
BELDEN
