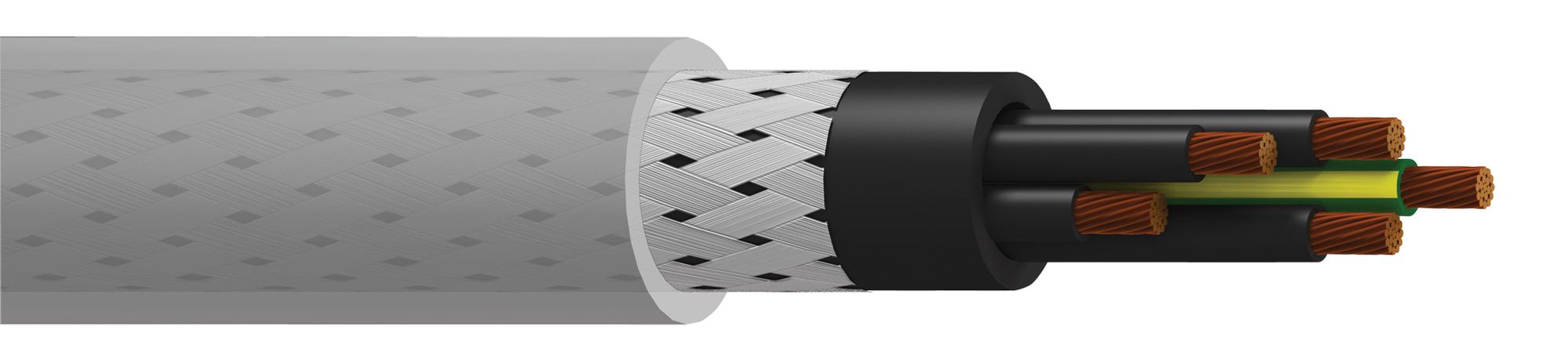

BELDEN 77804WS010100 Flexible Multi-Conductor Cable
The Belden 77804WS multi-conductor cable is designed for continuous flexing applications up to 14 million flex cycles. It features 18 AWG stranded bare copper conductors, PVC insulation, oil-resistant inner and outer jackets, and a tinned copper braid shield with 85% coverage. Suitable for 600V environments, this cable offers flexible installation, excellent durability, and compliance with multiple standards including UL and RoHS. Ideal for industrial automation, machinery, and portable equipment requiring reliable signal transmission under frequent flexing conditions.
BELDEN 77804WS010100 Flexible Multi-Conductor Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 18 AWG
- Number of Conductors: 4
- Ground Wire: Yes, 18 AWG, 105x38 stranding, PVC insulation
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned Copper Braid, 85% coverage
- Outer Jacket Material: PE (Polyethylene)
- Insulation Material: PVC
- Insulation Color: Numbered
- Operating Voltage: 600V
- Storage Temperature Range: -40°C to +90°C
- Flexing Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 315.498 kg/km
- Max Pulling Tension: 271.34 N
- Minimum Bend Radius: 52.576 mm
- Flex Cycle Rating: 14 Million cycles
- Applicable Standards: UL, CSA, VDE, RoHS, Reach, CA Prop 65
- Flame Test: CSA FT
- Nom. Capacitance: 147.645 pF/m
- Nom. Inductance: Not specified
- Nom. DC Resistance Conductor: Not specified
- Overall Jacket: Oil-resistant PVC, compression
- Length: Not specified
Buy the Belden Series 77804WS Shielded Flexible Cable: 77804WS010100
Discover the durable and flexible Belden Series 77804WS multi-conductor cable, perfect for continuous flexing applications. With 18 AWG stranded copper conductors, oil-resistant PVC jackets, and a high-quality tinned copper braid shield, this cable can withstand up to 14 million flex cycles, making it ideal for industrial automation, machinery, and portable equipment. Meeting UL, CSA, and RoHS standards, it provides reliable performance and easy installation in demanding environments. Order online today for dependable, long-lasting signal transmission solutions tailored for dynamic applications.
Order your Belden Series 77804WS shielded multi-conductor cable today and ensure reliable signal transmission with unmatched flexibility and durability for your industrial projects.
