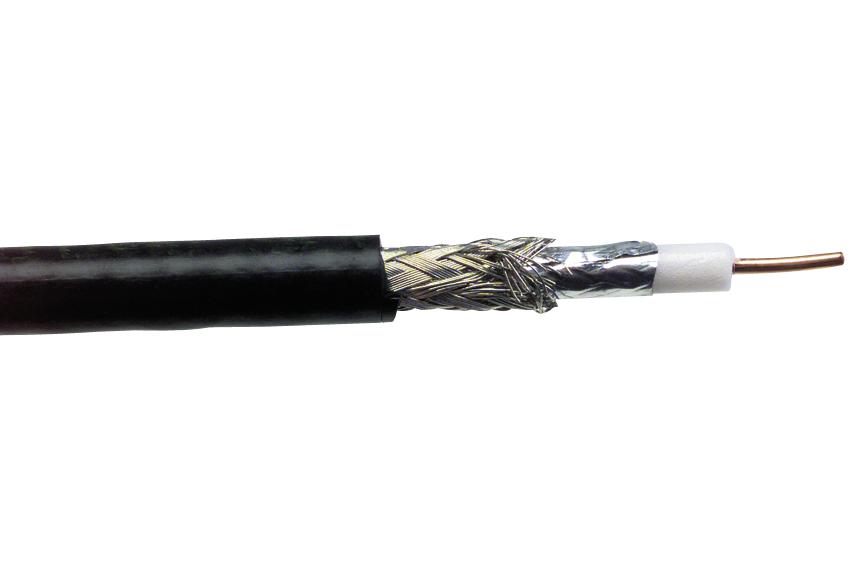

BELDEN 7805010100 RG-174 Coaxial Cable
The 7805-010-100 is a 100-foot RG-174-type coaxial cable featuring a 25 AWG solid bare copper conductor, solid polyethylene insulation, a Beldfoil® aluminum foil-polyester tape with 100% coverage, a tinned copper braid shield with 90% coverage, and a black PVC jacket. This widely used coaxial cable is ideal for transmitting electrical signals and energy, connecting sources such as transmitters to antennas. It is classified by its impedance or RG-type. Belden® coaxial cables are tested under various environmental and electrical conditions, ensuring reliable and trouble-free performance. Technical specifications include a conductor-to-shield capacitance of approximately 102.36 pF/m, a velocity of propagation of about 66%, a conductor DC resistance of 104.99 Ω/km at 20°C, and an outer shield DC resistance of 29.85 Ω/km at 20°C. Suitable for industrial applications.
BELDEN 7805010100 RG-174 Coaxial Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 25 AWG, 0.018 inch (0.4572 mm)
- Insulation Material: Polyethylene
- Outer Shield: Beldfoil® Aluminum Foil - Polyester Tape with 100 coverage, Tinned Copper Braid with 90 coverage
- Outer Jacket Material: PVC
- Overall Nominal Diameter: 2.794 mm
- Operating Temperature Range: -40°C to +80°C
- Bulk Cable Weight: 13.394 Kg per Km
- Maximum Pulling Tension: 71.4 N
- Minimum Bend Radius: 31.75 mm
- Impedance: 50 ohms
- Capacitance: approximately 102.36 pF/m
- Velocity of Propagation: about 66%
- DC Resistance Conductor: 104.99 Ω/km at 20°C
- Outer Shield Resistance: 29.85 Ω/km at 20°C
- RoHS Compliant, BFR, Prop 65, China RoHS, WEEE, ELV compliant
- Applicable Standards: RoHS II, ELV, WEEE, BFR
Buy the Buy Belden RG-174 Coax Part Number 7805010100 Online
Order the Belden RG-174 coaxial cable now for dependable high-frequency signal transmission. With 25 AWG bare copper conductors, polyethylene insulation, and a robust shield, this cable ensures low capacitance and stable performance in demanding environments. Its durable PVC jacket protects against external damage while maintaining flexibility and ease of installation. Ideal for connecting transmitters, antennas, or in industrial communication systems, this cable is available in 100-foot lengths with excellent shielding coverage, providing consistent quality and compliance with industry standards for your projects.
Get Belden 7805-010-100 today—built for reliable signal transmission with durable insulation and shielding perfect for professional networking and RF applications.
Frequently Asked Questions
Where can I buy BELDEN 7805010100?
You can click on the BUY or RFQ button to purchase 7805010100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 7805010100?
You can download the 7805010100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 7805010100?
BELDEN
