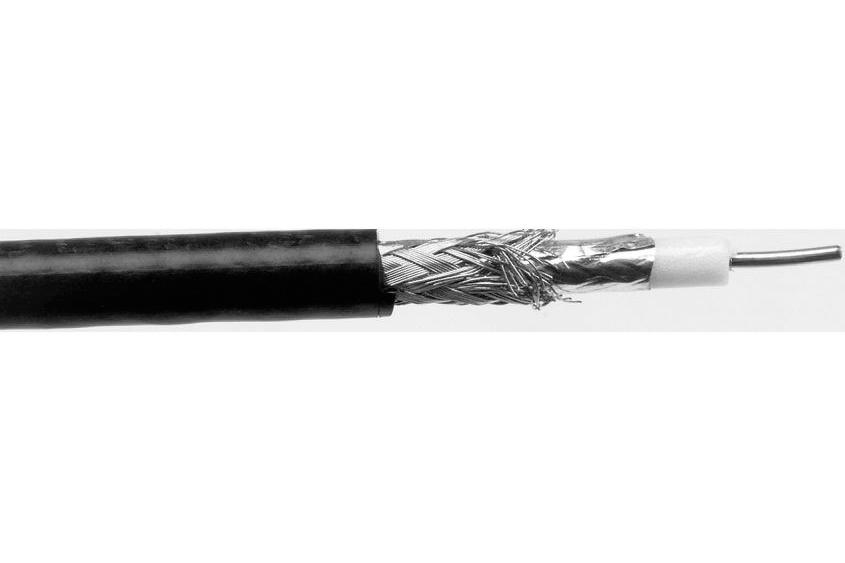

BELDEN 7806R0101000 RF Coaxial Cable
The 7806R coaxial cable is a high-quality RG-58 type designed for radio frequency transmission, featuring a 19 AWG solid bare copper conductor with gas-injected foam HDPE insulation and Duofoil shielding for optimal signal integrity. It has an overall diameter of 0.198 inches and a PVC outer jacket, making it suitable for indoor applications. The cable exhibits excellent electrical properties including a characteristic impedance of 50 ohms, a velocity of propagation of approximately 66%, and a maximum power rating of 1 watt. It complies with UL, CSA, and EU standards, ensuring safety and environmental compliance. Ideal for wireless, telecommunications, and RF systems, it is rated for operational temperatures from -40°C to 475°C, with a recommended maximum pulling tension of 40 lbs.
BELDEN 7806R0101000 RF Coaxial Cable Specifications:
- Conductor: 19 AWG solid bare copper
- Insulation Material: Gas-injected foam HDPE
- Outer Shield: Duofoil® aluminum foil-polyester tape with tinned copper braid (20% coverage)
- Outer Jacket Material: PVC
- Overall Diameter: 0.198 inches
- Operating Temperature Range: -40°C to 475°C
- Cable Weight: 27 lbs/1000 ft.
- Max. Pulling Tension: 40 lbs.
- Min. Bend Radius: 1.750 inches
- Impedance: 50 ohms
- Velocity of Propagation: approximately 66%
- Max. Power Rating: 1 watt
- Flame Test: UL1666 Vertical Shaft, CSA FT4
- Compliance: UL, CSA, EU RoHS, ELV, WEEE, Prop 65
- Application: Indoor wireless and RF systems
Buy the Buy Belden RF Coaxial Cable Part Number 7806R0101000 Online
Purchase the Belden RF Coaxial Cable online today to ensure high-performance signal transmission for wireless, RF, or telecommunications systems. Designed with a 19 AWG copper conductor, gas-injected foam insulation, and Duofoil shielding, this cable guarantees minimal signal loss and excellent shielding effectiveness. Its durable PVC outer jacket provides protection in indoor environments, supporting operational temperatures from -40°C to 475°C. With UL and EU compliance, this coaxial cable is ideal for professional installations requiring high reliability, superior electrical properties, and long-lasting performance. Order now to secure fast delivery and competitive pricing.
Get Belden 7806R coaxial cable today—built for high-frequency transmission, durability, and reliable wireless communication systems.
