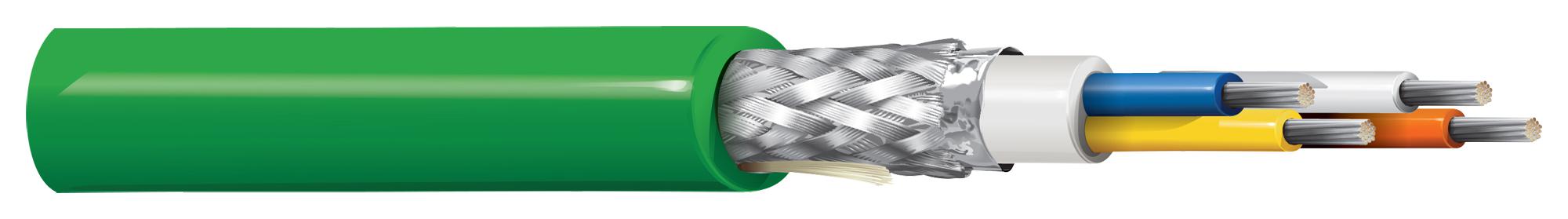

BELDEN 7962A1SW2000 Industrial Ethernet Cable
The Belden 7962A Multi-Conductor Category 5e DataTuff® cable is designed for demanding industrial Ethernet and data transmission environments. Featuring 22 AWG symmetric quad stranded tinned copper conductors, polyolefin insulation, and an industrial-grade TPE jacket resistant to sunlight and oil, it ensures durability in harsh conditions. The cable is suitable for outdoor, tray, conduit, and raceway installations, approved for hazardous and non-hazardous areas. Compliant with safety and environmental standards, it offers excellent flexibility, low capacitance, and reliable performance for PROFINET, 100BaseTX, and industrial Ethernet applications, with a flexible design for continuous flex use.
BELDEN 7962A1SW2000 Industrial Ethernet Cable Specifications:
- Conductor: 22 AWG symmetric quad stranded tinned copper
- Insulation: Polyolefin
- Inner Jacket: Not specified
- Outer Shield: Aluminum tape with polyester tape and braid
- Outer Jacket Material: Industrial-grade TPE
- Overall Diameter: 0.276 inches
- Operating Temperature Range: -40°C to +80°C
- Storage Temperature: -40°C to +80°C
- Installation Temperature Range: -20°C to +60°C
- Maximum Conductor Resistance: Not specified
- Nominal Capacitance: Not specified
- Flammability: UL 1666 Vertical Tray Flame Test
- Certifications: UL, CSA, RoHS, WEEE, Prop 65, UL Listed for Tray Use
- Application: Harsh environments, outdoor, industrial Ethernet, PROFINET, 100BaseTX
- Length: 2000 ft spool, weight approx. 98 lbs, color RAL 6018
- Pulling Tension: Max 55 lbs
- Bend Radius: 2.560 inches
Buy the Belden Series DataTuff Ethernet Cable: 7962A Multi-Conductor Category 5e
Get your Belden 7962A industrial Ethernet cable today online and enjoy premium performance in demanding environments. Designed with durable TPE jacket and tinned copper conductors, this cable provides excellent flexibility, sunlight, and oil resistance. Suitable for outdoor and hazardous locations, it ensures reliable data transfer for PROFINET, Ethernet, and industrial networking needs. Order now to benefit from fast shipping and ensure your industrial setups are connected with top-quality, UL-listed cable that meets all safety and environmental standards.
Buy Belden 7962A now and experience unmatched durability and reliable data transmission in harsh environments, perfect for industrial Ethernet applications.
