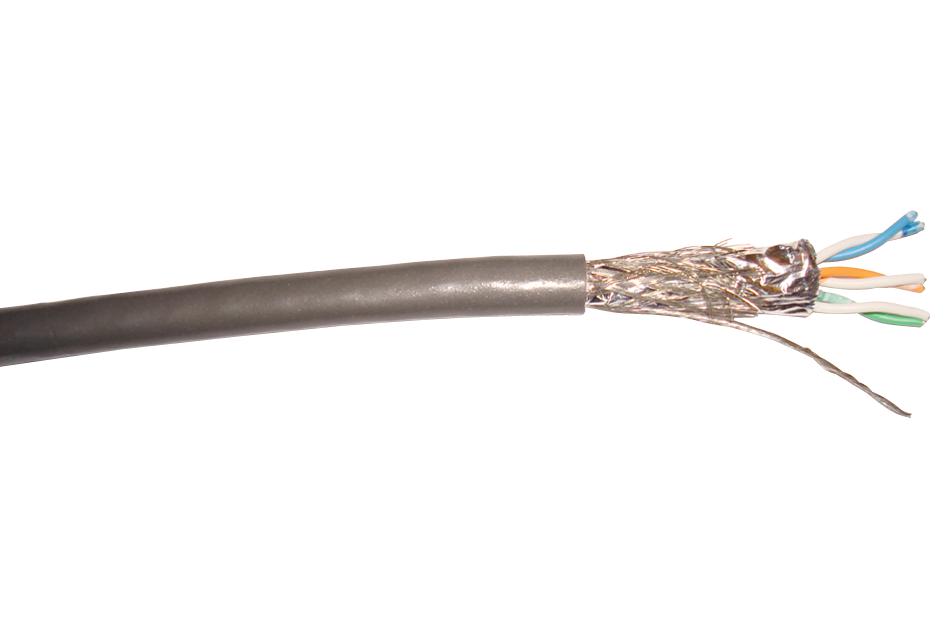

BELDEN 8103060100 Computer Data Cable
This is a 100-foot, three-pair, six-conductor low-capacitance computer cable designed for reliable data transmission in computer and networking systems. It features tinned copper conductors with foam high-density polyethylene insulation, twisted pair construction, and extensive shielding with 100% aluminum foil and a polyester tape, along with a 65% coverage braid for enhanced noise reduction. The cable supports up to 1.5A at 25°C, has an impedance of approximately 100 ohms, and operates efficiently within a temperature range of -30°C to 80°C, complying with multiple industry standards.
BELDEN 8103060100 Computer Data Cable Specifications:
- Conductors: 24 AWG tinned copper, 7x32 strands
- Insulation: Datalene foam polyethylene, 0.013 inches thick
- Shielding: 100% aluminum foil with polyester tape and 65% braid coverage
- Outer Jacket: PVC material, low smoke zero halogen
- Twisted Pairs: Three pairs with color coding (White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White)
- Overall Length: 100 feet (approximately 30.48 meters)
- Temperature Range: -30°C to +80°C
- Impedance: 100 ohms
- Max Operating Voltage: 300 V RMS
- Max Current: 1.5 Amps per conductor at 25°C
- Maximum Pulling Tension: 38.5 pounds
- UL Flame Test: UL1685
- Plenum: No
- Compliance: UL, ROHS, WEEE, BFR, Prop 65, China RoHS
Buy the Belden Series 8103 Low Capacitance Computer Cable: 8103060100
Discover the high-performance computer data cable from Belden, offering low capacitance, comprehensive shielding, and reliable data transfer for professional networking. Ideal for complex Ethernet and data communication setups, this cable ensures minimal interference and excellent signal fidelity. With its durable PVC jacket and compliance with global safety standards, it is safe for multiple environments, including industrial and office spaces. Order now to enhance your network’s reliability and experience seamless data communication with Belden’s trusted quality and innovative design.
Buy Belden 8103060100 low capacitance computer cable now and experience unmatched data integrity and shielding performance perfect for networking systems.
Frequently Asked Questions
Where can I buy BELDEN 8103060100?
You can click on the BUY or RFQ button to purchase 8103060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8103060100?
You can download the 8103060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8103060100?
BELDEN
