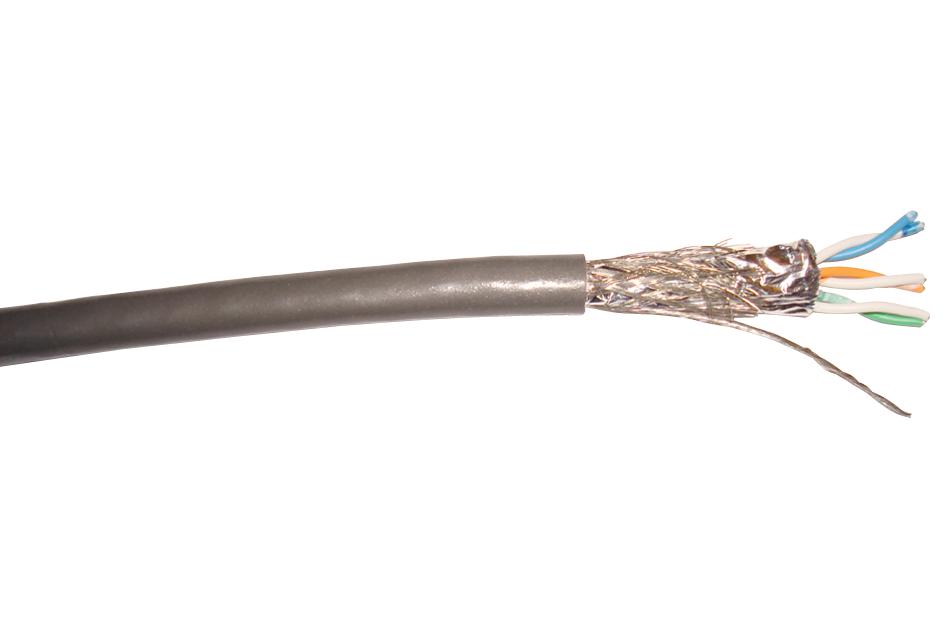

BELDEN 81120601000 Digital Video Cable
The Belden 8112 multi-conductor cable is designed for digital video transmission, featuring 24 AWG stranded TC conductors with Datalene® foam polyethylene insulation. It includes twisted pairs, a Beldfoil® aluminum/polyester shield with 65% coverage, a TC drain wire, and is enclosed in a durable PVC jacket, suitable for indoor applications. This cable delivers high-speed performance with low dielectric constant and dissipation factor, good crush resistance, and lightweight construction, meeting extensive safety and environmental standards for reliable data transfer in professional video and broadcast environments.
BELDEN 81120601000 Digital Video Cable Specifications:
- Conductors: 24 AWG stranded (7x32) TC conductors
- Insulation Material: Datalene® Foam Polyethylene, thickness 0.013 inches
- Outer Shield: Aluminum foil-polyester tape with 65% coverage and Tinned Copper Braid
- Outer Shield Drain Wire: Tinned Copper AWG
- Outer Jacket Material: PE (Polyethylene)
- Operating Temperature Range: -30°C to +80°C
- UL Temperature Rating: 80°C UL AWM Style 219
- Bulk Cable Weight: 92 lbs per 1000 ft
- Maximum Recommended Pulling Tension: 77 lbs
- Minimum Bend Radius: 4.5 inches
- Applicable Standards & Environmental Compliance: UL, CSA, RoHS, ELV, WEEE, Prop 65, China RoHS
- Electrical Characteristics: Characteristic impedance, capacitance, velocity of propagation, and DC resistance specified per standards
- Application: Indoor, non-plenum use, suitable for digital video transmission in broadcast or professional environments
Buy the Belden Series 8112 Digital Video: 81120601000
Experience reliable digital video transmission with the Belden 8112 multi-conductor cable, featuring twisted pairs, foil shield, and PVC jacket. Perfect for professional broadcast environments, this high-performance cable supports high-speed data transfer, low dielectric dissipation, and excellent crush resistance. Easy to install with a minimum bend radius of 4.5 inches, it complies with UL, RoHS, and other environmental standards. Purchase online now and ensure your digital video setup is optimized for quality, durability, and compliance in indoor settings.
Get Belden 81120601000 today—built for precision and long-lasting durability in professional digital video applications.
Frequently Asked Questions
Where can I buy BELDEN 81120601000?
You can click on the BUY or RFQ button to purchase 81120601000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 81120601000?
You can download the 81120601000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 81120601000?
BELDEN
