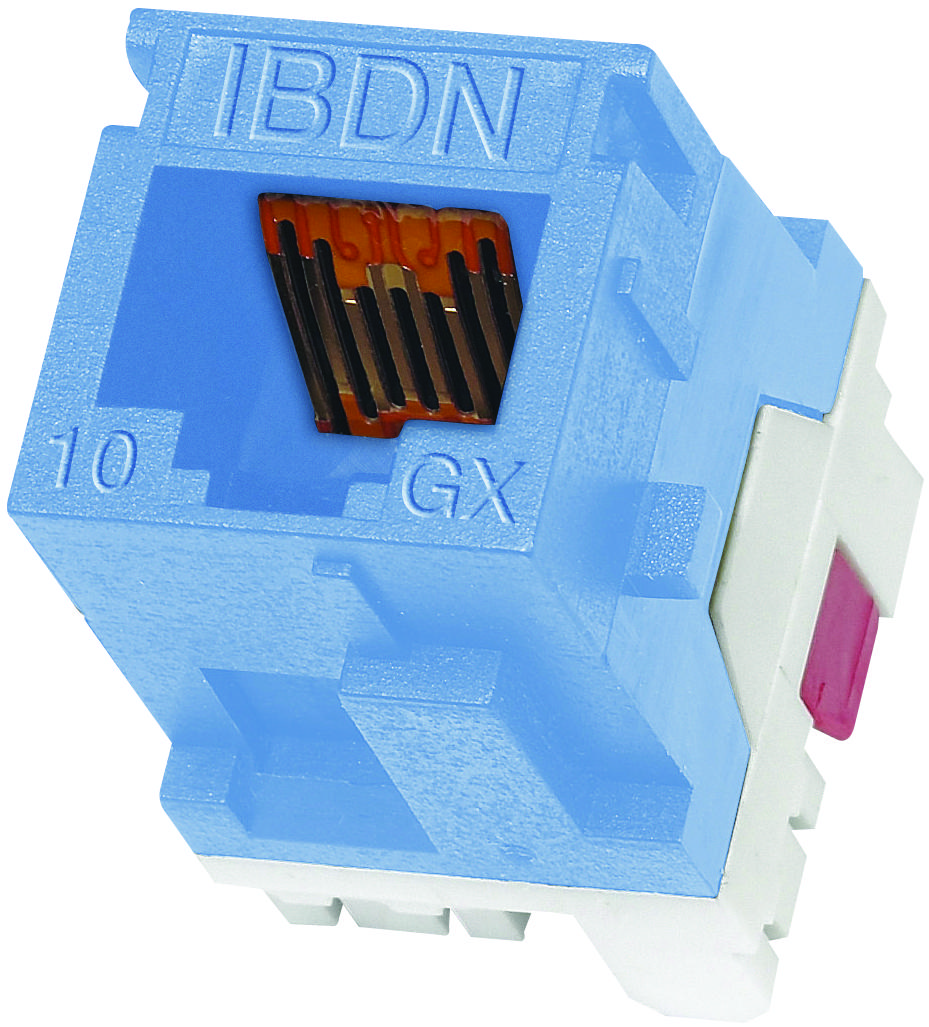

BELDEN AX102277 10GX Modular Jack
The 10GX Modular Jack with MDVO style from Belden is designed for high-performance Ethernet applications, supporting Category 6A, TIA 568.8,2-10, and ISO Class E. It features a blue color, flexible PCB with gold over nickel plating for reliable connectivity, and is compatible with interface and MDVO style faceplates, adapters, boxes, and patch panels. Suitable for indoor environments, this modular connector ensures excellent EMI immunity, low contact resistance, and high dielectric strength, meeting multiple industry standards including IEC 60603-7 and UL Part 68.
BELDEN AX102277 10GX Modular Jack Specifications:
- Dimensions: Not specified in detail, suitable for modular faceplates
- Materials: Front Connection - Flexible PCB with 50u inch Gold over Nickel; Rear Connection - Phosphor Bronze with Tin Plating over Nickel; Connector Body - NA Plastic (UL8930V-0)
- Color: Blue (TIA 606)
- Wiring Scheme: TS68NB
- Weight: 0.016 lbs
- Mated Connection Performance: Complies with TIAEIA-568-B.2-10-2008 Category 6A standard, verified by ETL
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 4.500 A
- Insulation Resistance: 50 M-Ohm Minimum
- Max. Contact Resistance: 20 mOhm
- Termination Resistance: 2.5 mOhm
- Applicable Standards & Environmental: IEC 60603-7, UL Part 68, RoHS compliant since 07/01/2006, ETL verified Category 6A
- Applicable for indoor use and suitable for IBDN System 10GX, TIA Category 6A, ISO Class E, 10GBASE-T
Buy the Buy Belden 10GX Modular Jack Part Number AX102277 Online
Purchase the Belden 10GX Modular Jack online and enjoy superior Ethernet connectivity solutions. Designed for demanding network environments, it offers high dielectric strength, low contact resistance, and excellent compliance with industry standards like TIA and ISO. Its MDVO style and durable construction ensure secure connections and reliable performance in indoor applications. With quick installation and compatibility with faceplates, adapters, and patch panels, this modular jack is ideal for network upgrades, expansions, and high-speed data transfer needs. Order now for fast delivery and seamless connectivity.
Buy Belden AX102277 now and experience unmatched reliability and high-performance Ethernet connectivity with advanced Category 6A standards.
