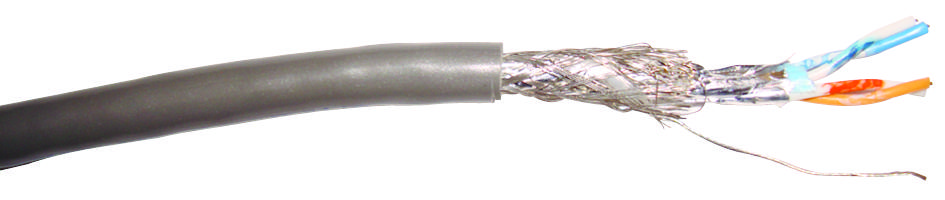

BELDEN 8132060100 Data Transmission Cable
The 8132 060100 is a shielded multi-conductor cable featuring three pairs of 28 AWG stranded tinned copper conductors. It is insulated with Datalene® foam polyethylene, which offers low dielectric constant and dissipation factor for high-speed, low-distortion data transmission. The cable has an overall shielding system comprising Beldfoil® aluminum foil-polyester tape (100% coverage) and a tinned copper braid (65% coverage), along with a copper drain wire. Its outer jacket is made of chrome-colored PVC. Designed for low capacitance, high-frequency data, and signal transfer within enclosures, it suits controllers, sensors, relays, meters, thermocouples, and alarms. It offers excellent crush resistance, lightweight flexibility, and robustness, with typical capacitance of 36.091 pF/m, propagation velocity of 78%, and conductor DC resistance of approximately 213.265 Ω/km at 20°C. This cable is ideal for communications, automation, instrumentation, computer peripherals, sensing, security, and industrial applications.
BELDEN 8132060100 Data Transmission Cable Specifications:
- Number of Conductors: 4
- Conductor Material: Tinned Copper
- Conductor Size: 28 AWG
- Insulation Material: Datalene Foam Polyethylene
- Shielding: Beldfoil aluminum foil-polyester tape, 100% coverage, tinned copper braid, 65% coverage
- Outer Jacket: PVC, chrome color
- Overall Diameter: 0.220 in
- Operating Temperature Range: -30°C to +80°C
- UL Temperature Rating: 80°C
- Bulk Cable Weight: 26 lbs per 1000 ft
- Min. Bend Radius: 2.250 in
- Nominal Capacitance: 36.091 pF/m
- Propagation Velocity: 78%
- DC Resistance Conductors: approximately 213.265 Ω/km at 20°C
- Applicable Standards: UL 1685, UL AWM Style 2919, RoHS, CE, ELV
- Plenum/Non-Plenum: No
- Max Operating Voltage: 30 V RMS
- Compliance: EU RoHS, WEEE, Prop 65, China RoHS, Low Voltage Directive 2014/35/EU
Buy the Belden 8132060100 – Reliable Data Transmission Cable for Industrial Applications
Purchase the Belden 8132060100 online today—engineered for high-speed, low-distortion data transfer in industrial environments. Its robust shielding and low capacitance make it ideal for controllers, sensors, meters, and alarms. Lightweight and flexible, this cable ensures reliable performance with excellent crush resistance. Perfect for automation, instrumentation, and communication systems, it guarantees durability and precision for demanding applications. Order now to take advantage of fast shipping and trusted quality, ensuring your industrial setup remains efficient and secure.
Get Belden 8132060100 today—built for precision and long-lasting durability in industrial data and communication setups.
Frequently Asked Questions
Where can I buy BELDEN 8132060100?
You can click on the BUY or RFQ button to purchase 8132060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8132060100?
You can download the 8132060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8132060100?
BELDEN
