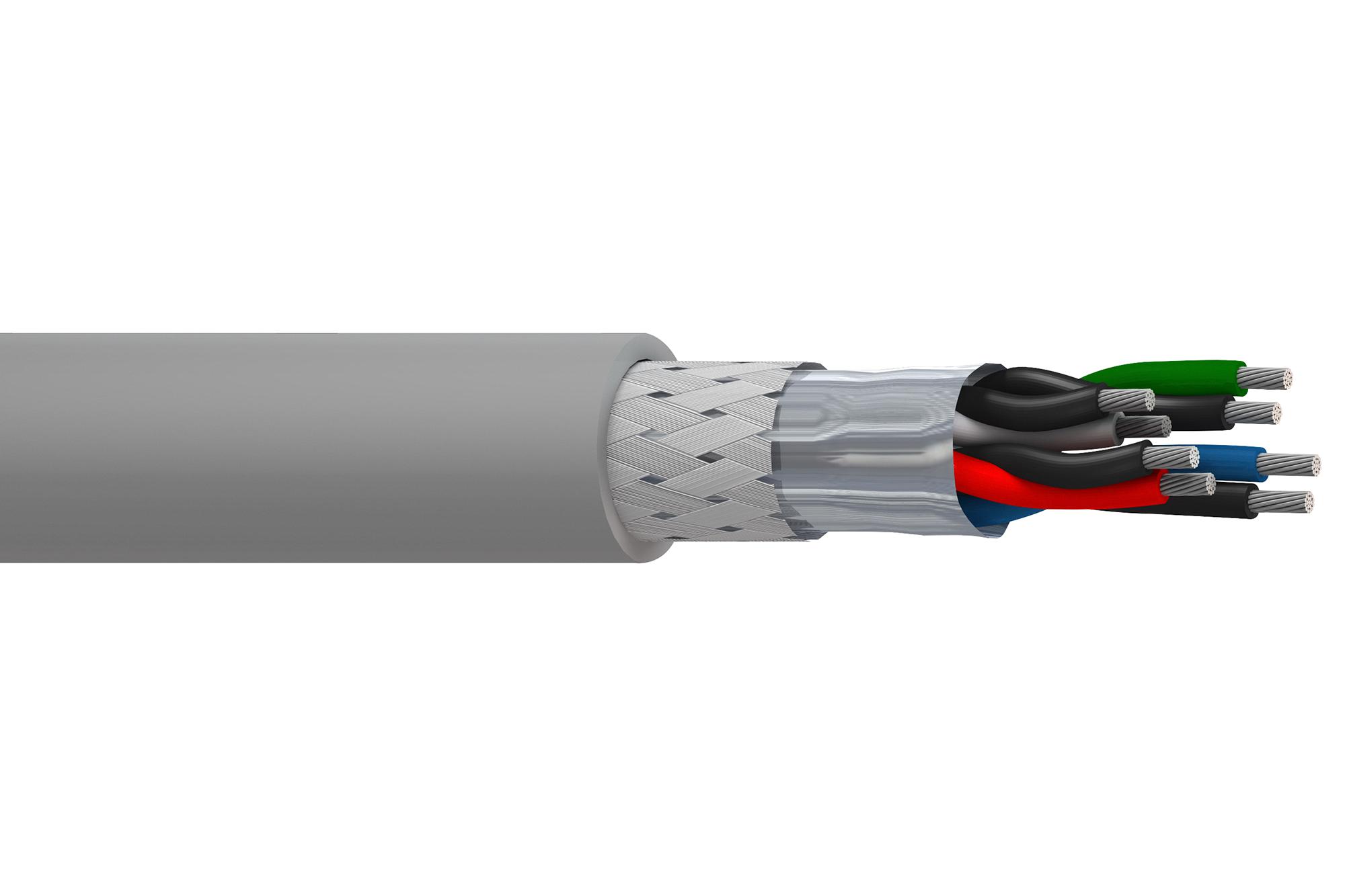

BELDEN 76703TS008500 Flexible Data Cable
This is a 22 AWG stranded tinned copper conductor cable designed for data applications requiring high flexibility and durability. It features PVC insulation, a foil aluminum/polyester shield with 100% coverage, and a tinned copper braid shield covering 85%. The cable offers continuous flexing capability with up to 6 million flex cycles, making it ideal for dynamic environments. It is oil-resistant, compliant with UL and CSA standards, and suitable for applications with a temperature range from -10°C to 105°C. Its physical and electrical characteristics ensure reliable performance in demanding data and control systems.
BELDEN 76703TS008500 Flexible Data Cable Specifications:
- Conductor: 22 AWG stranded (19x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil, 100% coverage
- Shield Material: Tinned copper braid, 85% coverage
- Outer Jacket: Oil-resistant PVC
- Bulk Cable Weight: 81.851 kg/km
- Max Recommended Pulling Tension: 191.273 N
- Minimum Bend Radius: 76.200 mm (installation), 114.300 mm (flexing)
- Flex Cycle Rating: Up to 6 million flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards: UL Style 20006, CSA 600 V, RoHS compliant
- Characteristic Impedance: Not specified
- Inductance: Not specified
- Capacitance: 95.149 pF/m (cond. to cond.), 170.612 pF/m (cond. to ground)
- Conductor DC Resistance: Not specified
- Outer Shield DC Resistance: Not specified
Buy the Belden Series Data Cable: 76703TS
Purchase the flexible data cable designed for high durability and continuous flexing applications. Featuring aluminum/polyester foil and copper braid shielding for EMI protection, with a PVC oil-resistant jacket. It's suitable for dynamic environments requiring up to 6 million flex cycles, ensuring reliable data transmission. Compliant with UL, CSA, and RoHS standards, this cable operates efficiently within a temperature range of -10°C to 105°C. Ideal for industrial, control, and data systems demanding flexible, shielded wiring solutions.
Get Belden 76703TS today—built for high-flex applications, shielding, and long-lasting performance in demanding data environments.
Frequently Asked Questions
Where can I buy BELDEN 76703TS008500?
You can click on the BUY or RFQ button to purchase 76703TS008500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76703TS008500?
You can download the 76703TS008500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76703TS008500?
BELDEN
