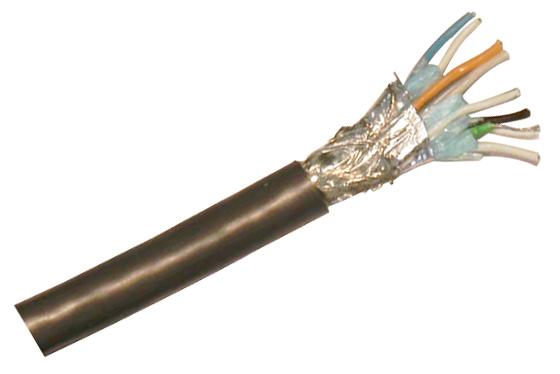

BELDEN 8134060100 Computer Cable
The 8134 Multi-Conductor low capacitance computer cable is designed for EIA RS-232/485 communication, featuring 28 AWG stranded conductors with Datalene FPE-Foam Polyethylene insulation. It includes an overall Beldfoil shield with 100% coverage and a TC braid shield with 65% coverage, providing excellent noise immunity. The cable has a PVC outer jacket, a total diameter of 0.286 inches, and is rated for operating temperatures from 20°C to +80°C. Suitable for high-speed data transmission, it complies with UL, RoHS, and WEEE standards, ensuring safety and environmental compliance.
BELDEN 8134060100 Computer Cable Specifications:
- Conductor Gauge: 28 AWG stranded (7x36)
- Insulation Material: Datalene® FPE-Foam Polyethylene, 0.018 inches
- Outer Shield: Aluminum foil-Polyester tape with shorting fold, 100% coverage, Tinned Copper braid with 65% coverage, drain wire AWG: not specified
- Outer Jacket Material: PVC
- Overall Diameter: 0.286 inches
- Operating Temperature Range: 20°C to +80°C
- UL Temperature Rating: 80°C
- Bulk Cable Weight: 36 lbs/1000 ft
- Applicable Standards: UL Style 2919, NEC, RoHS, WEEE, EU Directives, UL Flame Test UL1685, UL AWMS 2919
- Max Operating Voltage: 30V RMS
- Nominal Velocity of Propagation: not specified
- Physical properties include good crush resistance and light weight; designed for high-speed, low-distortion data handling
Buy the Belden Series 8134 Computer Cable: 8134060100
Purchase the Belden Series 8134 low capacitance computer cable online today and enjoy secure, high-speed data communication for EIA RS-232/485 applications. Featuring 28 AWG stranded conductors with Datalene FPE-Foam Polyethylene insulation, this cable offers excellent noise immunity and minimal signal distortion. Its robust construction includes an aluminum foil-Polyester tape shield with shorting fold, a 65% coverage Tinned Copper braid shield, and a durable PVC outer jacket. Rated for temperatures from 20°C to +80°C, this compliant and high-quality cable guarantees dependable performance in critical data transmission environments. Secure your order now for fast delivery and reliable connectivity.
Order your Belden Series 8134 computer cable 8134060100 today and ensure reliable high-speed data transmission with durable shielding and low capacitance design.
