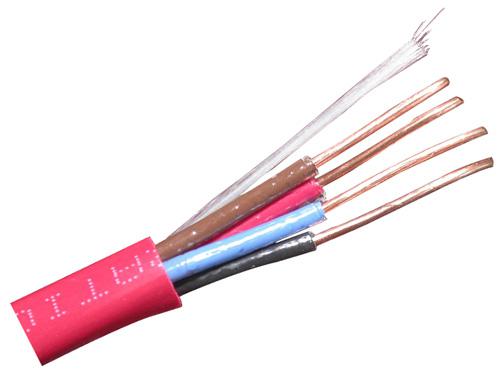

BELDEN 82444877U500 Multiconductor Control Cable
The 82444 877U500 is a 152.4 meter, 4-core unshielded multiconductor cable designed for high-performance audio, control, and instrumentation systems. It features plenum-rated FEP insulation, providing excellent fire safety and low smoke emission, along with a natural Flamarrest® jacket for enhanced flame resistance. This cable has a nominal diameter of 0.134 inches, is rated for operation from 0 to 60°C, and supports maximum pulling tension of 160.135N. It complies with various safety, environmental, and fire standards, making it suitable for industrial, fire safety, and sensitive electronic environments.
BELDEN 82444877U500 Multiconductor Control Cable Specifications:
- Conductors: 22 AWG stranded (7x30) TC conductors with cabled design
- Insulation Material: FEP - Fluorinated Ethylene Propylene
- Outer Shield: Unshielded
- Outer Jacket: Flamarrest® LS PVC, Low Smoke, 0.015 inch thickness
- Overall Diameter: 0.134 inches
- Operating Temperature Range: 0°C to +60°C
- Cable Weight: approximately 16.000 pounds per 1000 feet
- Max Pulling Tension: 36 pounds (approximately 160.135N)
- Minimum Bend Radius: 1.5 inches
- Flame Tests: UL NFPA 262, CSA FT
- Plenum-rated: Yes
- Certification & Standards: UL, CE, RoHS, ELV, Prop 65 compliant
- Max Voltage: 300V
- Capacitance Conductor to Conductor: Not specified
- DC Resistance: Not specified
- Loop Resistance: Not specified
- Supports current up to 3.3 Amps per conductor at 25°C
Buy the Buy Belden Cable Part Number 82444U500 Online
Order the Belden 82444U500 multiconductor cable online today to ensure high safety standards, excellent electrical performance, and reliable connectivity. Featuring plenum-rated FEP insulation and a Flamarrest® jacket, this 4-core unshielded cable is perfect for sensitive environments needing fire safety compliance. Its durable construction supports a maximum pulling tension of 160.135N and operates efficiently within a temperature range of 0 to 60°C. Trust Belden for industry-leading, high-quality cables for audio, control, and instrumentation applications.
Buy Belden 82444U500 now and experience unmatched reliability and high-quality control and instrumentation performance with plenum-rated FEP insulation.
Frequently Asked Questions
Where can I buy BELDEN 82444877U500?
You can click on the BUY or RFQ button to purchase 82444877U500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 82444877U500?
You can download the 82444877U500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 82444877U500?
BELDEN
