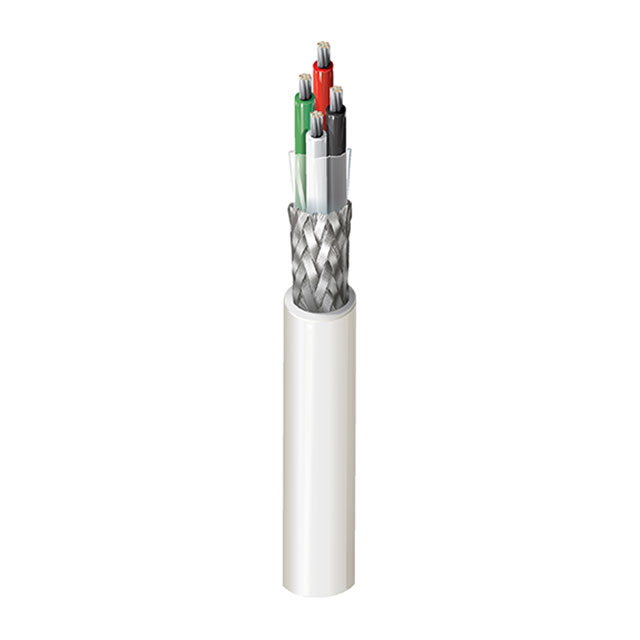

BELDEN 83336WHT1000 3 Conductor Shielded Cable
The BELDEN 83336-WHT-1000 is a high-performance, 3-conductor shielded cable designed for demanding applications requiring robust electrical performance and environmental resilience. Constructed with silver-plated copper conductors, PTFE insulation, and an overall silver-plated copper braid shield, this cable provides excellent signal integrity and protection against electromagnetic interference. The TFE jacket ensures durability and resistance to harsh conditions, making it suitable for use in extreme temperatures and voltage control scenarios. Compliant with MIL-W-16878/4, this cable is a reliable choice for industrial, military, and aerospace applications.
BELDEN 83336WHT1000 3 Conductor Shielded Cable Specifications:
- Suitable Applications: MIL-W-16878/4 Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control
- Conductor Material: Silvered Copper
- Color Code: White, Black, Red
- Element Size: 18 AWG
- Stranding: 19x30 SC
- Insulation Material: PTFE - Polytetrafluoroethylene
- Insulation Thickness: 0.0105 in (0.267 mm)
- Insulation Diameter: 0.068 in (1.7 mm)
- Shield Type: Braid
- Shield Material: Silvered Copper
- Shield Coverage: 85%
- Outer Jacket Material: PTFE - Polytetrafluoroethylene
- Outer Jacket Thickness: 0.01 in (0.28 mm)
- Outer Jacket Diameter: 0.189 in (4.80 mm)
- Overall Cable Diameter: 0.189 in (4.80 mm)
- Max Current: 8.2 Amps per conductor @ 25°C
- Conductor DC Resistance: 5.7 Ohm/1000ft
- Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m)
- Capacitance Cond-to-Other: 52.8 pF/ft (173 pF/m)
- Voltage Rating: 600 V
- UL Temperature: 200°C
- Operating Temperature: -65°C to +200°C
- Stationary Bend Radius: 1.89 in (48.0 mm)
- Installation Bend Radius: 1.89 in (48.0 mm)
- Max Pull Tension: 74.1 lbs (33.6 kg)
- Bulk Cable Weight: 37 lbs/1000ft
- NEMA Compliance: NEMA HP3
- Military Compliance: MIL-W-16878/4 (Type E except stranding)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
