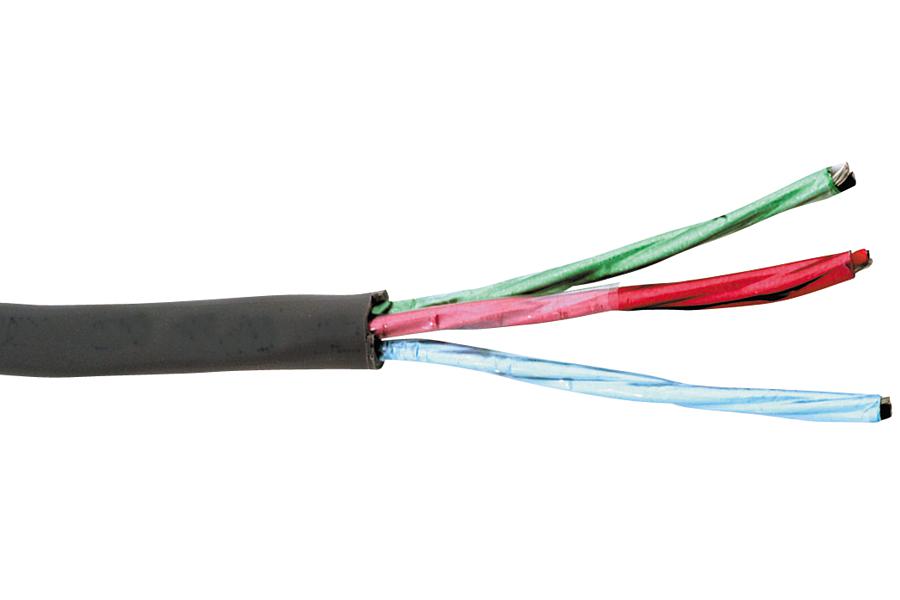

BELDEN 8769060100 Multi-Conductor Signal Cable
The Belden 8769 multi-conductor CM-rated cable features 22 AWG stranded Tinned Copper conductors with polypropylene insulation, individually shielded with Beldfoil® to 100% coverage, and an overall PVC jacket. Designed for reliable signal transmission, it offers a nominal diameter of 15.265 mm, an operating temperature range of 20°C to +80°C, and complies with various environmental and safety standards including UL1685, RoHS, and CE. Suitable for installation in confined spaces, this cable provides durability, flexible installation, and high-performance shielding for complex wiring applications.
BELDEN 8769060100 Multi-Conductor Signal Cable Specifications:
- Conductor: 22 AWG stranded Tinned Copper
- Insulation Material: Polypropylene
- Inner Shield: Beldfoil® Aluminum Foil Tape, 100% coverage
- Outer Jacket Material: PVC
- Overall Diameter: 15.265 mm
- Operating Temperature Range: 20°C to +80°C
- UL Temperature Rating: 80°C
- Maximum Pulling Tension: 1970.55 N
- Bend Radius: 158.75 mm
- Applicable Standards: UL1685, RoHS, CE, UL Style 2919
- Voltage Rating: 30 V RMS
- Bulk Cable Weight: 346.75 kg/km
- Impedance & Capacitance: Standard compliance with industry norms, Nominal Velocity: 68% of light speed
- Shield Resistance: 34.79 Ohm km at 20°C
- Flame & RoHS Compliance: Yes
- Suitable for plenum or non-plenum environments: No
Buy the Belden Series 8769 Multi-Conductor Signal Cable: 8769060100
Order the Belden 8769060100 multi-conductor signal cable online today and enjoy easy installation, excellent shielding, and proven durability. This cable is ideal for complex wiring projects requiring reliable signal transmission, UL compliance, and adherence to RoHS standards. Its robust construction with Tinned Copper conductors and shielded design ensures minimal signal interference and long-term performance. Perfect for commercial, industrial, and technical applications, this cable offers high flexibility, safe operation within specified temperature ranges, and compliance with all relevant safety standards. Buy now and ensure optimal performance for your electrical projects.
Buy Belden 8769060100 now and experience unmatched reliability and performance with high-quality shielding and durable construction for complex wiring needs.
Frequently Asked Questions
Where can I buy BELDEN 8769060100?
You can click on the BUY or RFQ button to purchase 8769060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8769060100?
You can download the 8769060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8769060100?
BELDEN
