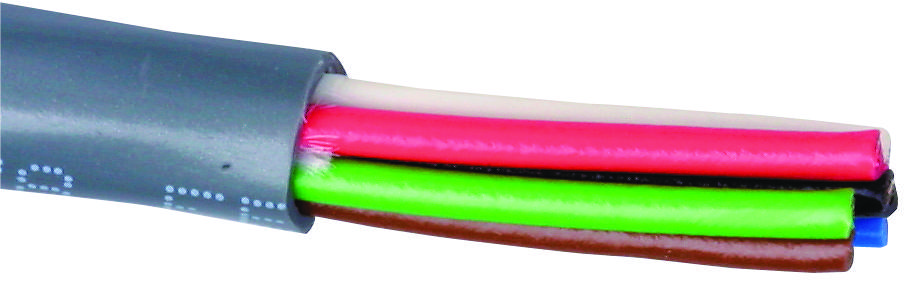

BELDEN 8627060100 Multi-Conductor Cable
The 8627 060100 is a 30.48-meter, 4-core, unshielded multiconductor cable designed for audio, control, and instrumentation applications. It features stranded tinned copper conductors with PVC insulation and jacket, offering durability and flexibility in industrial environments. The cable has a nominal diameter of 0.490 inches and complies with multiple safety and environmental standards including UL Flame Test, CSA Flame Test, and EU directives like RoHS and WEEE. Suitable for voltage applications up to 300V, it withstands temperatures from -20°C to 80°C and can handle a maximum pulling tension of 190 pounds, making it ideal for sensitive electronic and industrial setups.
BELDEN 8627060100 Multi-Conductor Cable Specifications:
- Conductor: 14 AWG stranded (19x27) tinned copper
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Overall Diameter: 0.490 inches
- Operating Temperature Range: -20°C to 80°C
- Cable Length: 30.48 meters (100 ft)
- Bulk Weight: 136 lbs per 1000 ft
- Max Pulling Tension: 190 lbs
- Nominal Capacitance Conductor to Conductor: Not specified
- DC Resistance: Not specified
- Max Operating Voltage: 300V
- Current Rating: 7.5 Amps per conductor @ 25°C
- Flammability Standards: UL Flame Test, CSA Flame Test
- Environmental Compliance: RoHS, WEEE, ELV, Prop 65
- Plenum/Non-Plenum: No
Buy the Belden Series 8627 Multi-Conductor Cable: 8627060100
Enhance your audio and instrumentation setups with the Belden Series 8627 060100 multi-conductor cable. Featuring stranded tinned copper conductors, PVC insulation, and an unshielded design, this durable cable provides reliable performance. It operates safely within -20°C to 80°C and withstands a maximum tension of 190 pounds. Perfect for industrial applications, control systems, and audio installations, it complies with stringent safety and environmental standards including UL, CSA, RoHS, and WEEE. Order online today for quick delivery and dependable performance.
Order your Belden Series 8627 060100 cable today and ensure reliable, high-quality audio and control signal transmission for your industrial projects.
Frequently Asked Questions
Where can I buy BELDEN 8627060100?
You can click on the BUY or RFQ button to purchase 8627060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8627060100?
You can download the 8627060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8627060100?
BELDEN
