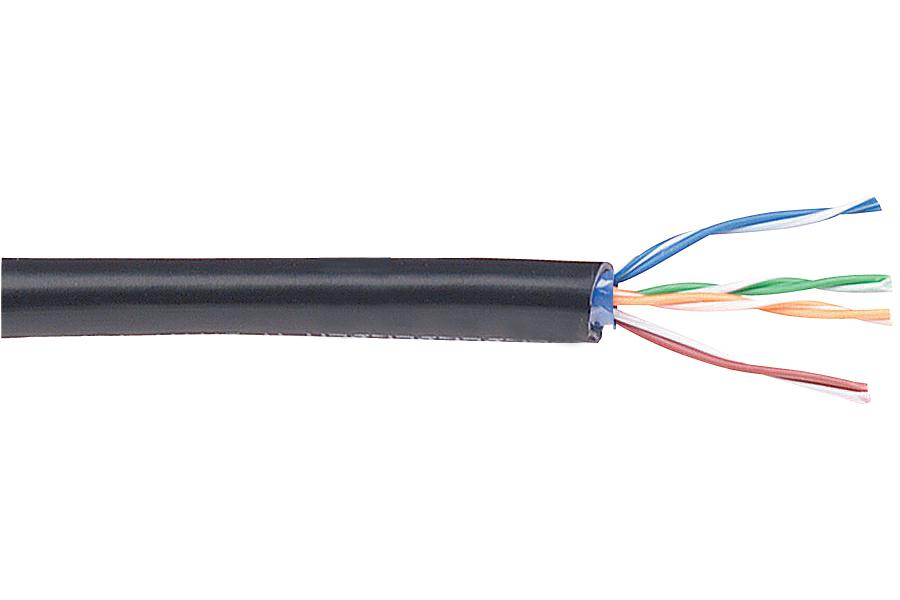

BELDEN 7928A0101000 Industrial Ethernet Cable
The Belden 7928A Category 5e DataTuff® Twisted Pair Cable features 24 AWG bonded-pair solid bare copper conductors, encased in FEP insulation and a FEP jacket resistant to sunlight, oil, and gas. Designed for harsh environments, it supports high-frequency data transmission up to 350MHz, suitable for industrial Ethernet, Gigabit Ethernet, and other high-speed networks. Its unshielded outer jacket maintains flexibility while providing durability. The cable passes UL and CSA flame tests, is plenum-rated, and complies with RoHS, WEEE, and other international standards, ensuring safety, reliability, and environmental compliance in demanding applications.
BELDEN 7928A0101000 Industrial Ethernet Cable Specifications:
- Conductor Gauge: 24 AWG
- Insulation Material: FEP - Fluorinated Ethylene Propylene
- Outer Shield: Unshielded
- Outer Jacket Material: FEP - Fluorinated Ethylene Propylene
- Overall Diameter: 0.187 in.
- Storage Temperature Range: -70°C To +150°C
- Installation Temperature Range: -55°C To +150°C
- Operating Temperature Range: -55°C To +150°C
- Bulk Cable Weight: 25 lbs/1000 ft
- Max Pulling Tension: 40 lbs
- Minimum Bend Radius: 0.250 in.
- Flame Test Certifications: UL NFPA 262, UL723, CSA FT6
- Standards & Compliance: NEC (UL), RoHS, WEEE, ELV, Category 5e (TIA 568.C.2), UL Verified, UL Listed
- Environmental Durability: Sunlight, oil, and gas resistant
- Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Buy the Belden 7928A – Reliable DataTuff® Ethernet Cable for Industrial Applications
Secure your industrial networking needs by purchasing the Belden 7928A Category 5e DataTuff® Twisted Pair Cable online today. Designed for harsh environments, this high-quality cable offers exceptional durability, flame resistance, and compliance with international safety standards. Its FEP insulation and jacket resist sunlight, oil, and gas, making it ideal for demanding industrial settings. Perfect for high-speed data transmission such as Gigabit Ethernet, this plenum-rated cable ensures reliable performance in critical applications while supporting environmental and safety certifications worldwide. Order now for dependable, long-lasting connectivity.
Order your Belden 7928A series high-performance Ethernet cable today and enhance your industrial network with durable, reliable connectivity.
